(9-056) - CAB FLOOR, FLOOR MOUNTING AND FLOOR MATS, P.I.N. DAC03#2001 AND AFTER

Запчасти Case 9030B (9-056) - CAB FLOOR, FLOOR MOUNTING AND FLOOR MATS, P.I.N. DAC03#2001 AND AFTER (09) - CHASSIS

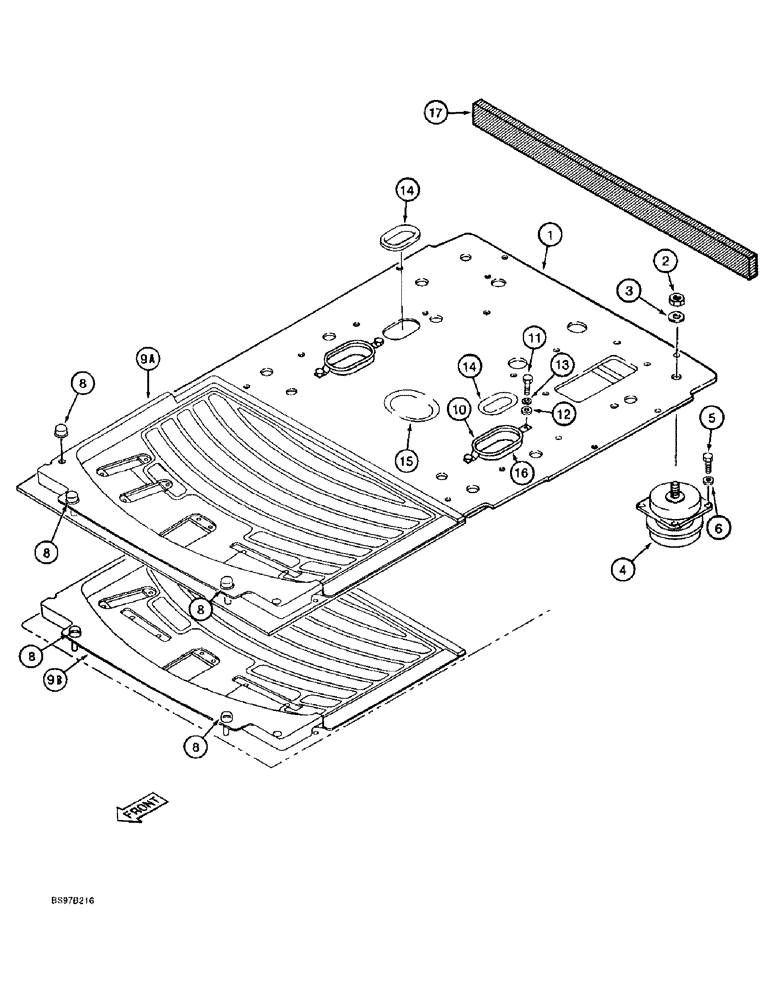

Схема запчастей Case 9030B - (9-056) - CAB FLOOR, FLOOR MOUNTING AND FLOOR MATS, P.I.N. DAC03#2001 AND AFTER (09) - CHASSIS
6
14
2
3
1
4
11
16
8
13
9b
8
9a
12
8
17
8
5
14
8
10
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

165401A1

FLOOR

- cab

1шт.

2

150760A1

NUT

- hex

6шт.

3

150714A1

WASHER

- special

6шт.

4

165029A1

INSULATOR BLOCK

MOUNT - rubber, cab floor

6шт.

5

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

24шт.

6

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

24шт.

8

159489A1

CAP

- special

3шт.

9a

165400A1

FLOOR MAT

MAT - floor, two pedal positions with two foot rests

1шт.

9b

165737A1

FLOOR MAT

MAT - floor, three pedal positions w/one foot rest (machines with auxiliary hydraulic control valve)

1шт.

10

162622A1

GROMMET

GUIDE - cab floor

2шт.

11

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm, class 10.9

4шт.

13

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

14

162623A1

GROMMET

- rubber

2шт.

15

162624A1

GROMMET

- rubber

1шт.

16

162625A1

GROMMET

- rubber

2шт.

17

162626A1

SEAL

- cushion

1шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

4шт.
