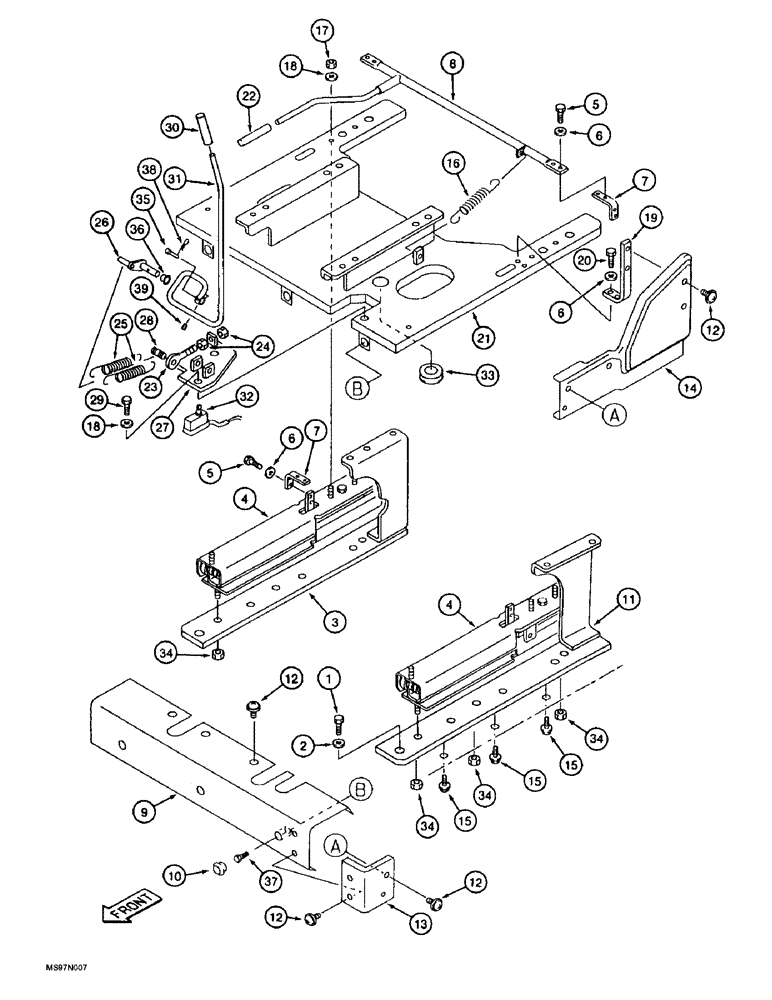

Запчасти Case 9030B (9-049A) - SEAT SLIDE RAILS AND PLATFORM, USED WITH SEAT WITH CASE LOGO ON BACK CUSHION (09) - CHASSIS

1

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12-1.75 x 30 mm, class 10.9

2шт.

2

150811A1

WASHER

- flat, special, 12 mm

2шт.

3

159517A1

SUPPORT ASSY.

STAND - rail and platform mounting, right hand

1шт.

4

159513A1

RAIL ASSY.

RAIL - slide, seat

2шт.

6

153081A1

WASHER

- flat, special

10шт.

7

159331A1

BRACKET

- 90 degree, Serial Range: lever-rail

2шт.

8

159516A1

LEVER

- seat adjusting, forward and reverse

1шт.

9

159314A1

COVER

GUARD - front, rail protection

1шт.

10

159519A1

PLUG

COVER - bolt head

3шт.

11

159518A1

SUPPORT ASSY.

STAND - rail and platform mounting, left-hand

1шт.

12

159533A1

SCREW

- machine, special

10шт.

13

159287A1

COVER

BRACKET - 90 degree angle

1шт.

14

159260A1

COVER

GUARD - rail protection, left-hand side

1шт.

15

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special, rail mounting

6шт.

16

159502A1

SPRING

- extension

1шт.

18

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

8шт.

19

159317A1

BRACKET

- 90 degree strap

1шт.

20

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm, class 10.9

2шт.

21

159540A1

PLATFORM

- seat mounting

1шт.

22

159501A1

CAP

GRIP - vinyl, forward and reverse lever

1шт.

23

159346A1

BALL JOINT

EYE - threaded, spring anchor, gate lock control lever

1шт.

25

159539A1

SPRING

- return, gate lock control lever

2шт.

26

165190A1

LINK

BELLCRANK - control lever, gate lock

1шт.

27

165506A1

BRACKET

- lever pivot, gate lock

1шт.

28

159249A1

PIN

- grooved, spring anchor

1шт.

29

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

2шт.

30

159547A1

CAP

GRIP - vinyl, gate lock control lever

1шт.

31

165189A1

LEVER

- control, gate lock

1шт.

32

159541A1

LIMIT SWITCH

SWITCH - limit, gate lock control

1шт.

There is another limit switch used for the console. This limit switch is part # 159538A1. It has two wire leads (one is white and one is black) that are each 100 mm long. This switch is wired normally open. The Sumitomo part # is probably stamped somewhere on the switch body. The Sumitomo part # is KHN1432.

1шт.

159541A1 gate lock control limit switch has two wire leads (both are green) that are each 150 mm long. This switch is wired normally closed. The Sumitomo part # is probably stamped somewhere on the switch body. The Sumitomo part # is KHN1439.

1шт.

33

150413A1

GROMMET

- rubber

1шт.

34

150472A1

FLANGE NUT

- hex flange, special, 8 mm-1.25

6шт.

35

165902A1

COTTER PIN

PIN - headed, special

1шт.

36

159244A1

RING

BUSHING - lever, gate lock control

2шт.

37

159602A1

BOLT,Sems, Hex, M6 x 16mm

BOLT - special

3шт.

38

165192A1

COTTER PIN

PIN - clip, special

1шт.

39

878-10812

SET SCREW,Hex Skt, M8 x 12mm, Cup Pt

SCREW - set, hex socket, 8 - 1.25 x 12 mm, cup point

1шт.

5

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 8-1.25 x 25 mm, class 10.9

8шт.

17

829-1410

NUT,M10 x 1.5, Cl 10.9

6шт.

24

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.
