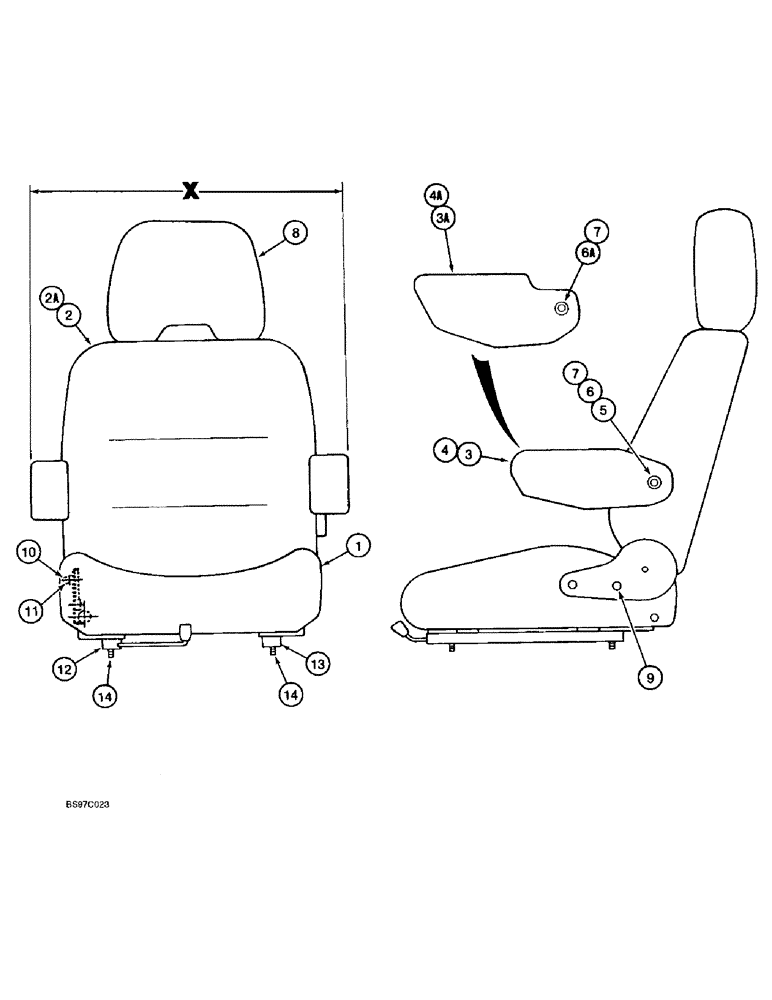

Запчасти Case 9030B (9-046) - 159525A1 AND 165553A1 OPERATORS SEATS, WITHOUT CASE LOGO ON BACK CUSHION (09) - CHASSIS

159525A1

SEAT ASSY.

SEAT - operators, X equals 580 mm (22-13/16 inch) long, if used, Includes: Ref. 1, 2, 3, 4, 5, 6, and 7 - 14

1шт.

165553A1

SEAT ASSY.

SEAT - operators, X equals 630 mm (24-13/16 inch) long, if used, Includes: Ref. 1, 2A, 3A, 4A and 6A - 14

1шт.

1

165013A1

CUSHION

- seat bottom

1шт.

2

165014A1

BACKREST

CUSHION - seat back, used with 159525A1 only

1шт.

2a

165598A1

BACKREST

CUSHION - seat back, used with 165553A1 only

1шт.

3

165015A1

ARMREST

- seat, right-hand, used with 159525A1 only

1шт.

3a

165599A1

ARM

REST - seat, right-hand, used with 165553A1 only

1шт.

4

165016A1

ARMREST

- seat, left-hand, used with 159525A1 only

1шт.

4a

165600A1

ARM

REST - seat, left-hand, used with 165553A1 only

1шт.

5

165017A1

SPACER

- special, used with 159525A1 only

4шт.

6

165018A1

WASHER

- special, used with 159525A1 only

2шт.

6a

165601A1

WASHER

- special, used with 165553A1 only

2шт.

7

165019A1

SPECIAL NUT

- special

2шт.

8

165020A1

HEADREST, SEAT

HEADREST - seat

1шт.

9

165021A1

BOLT

BOLT - special

2шт.

10

165022A1

NUT

- cap, special

1шт.

11

165023A1

BUSHING

- special

1шт.

12

165024A1

SLIDE

- seat, right-hand

1шт.

13

165025A1

SLIDE

- seat, left-hand

1шт.

14

165026A1

SCREW

- threaded, special

4шт.
