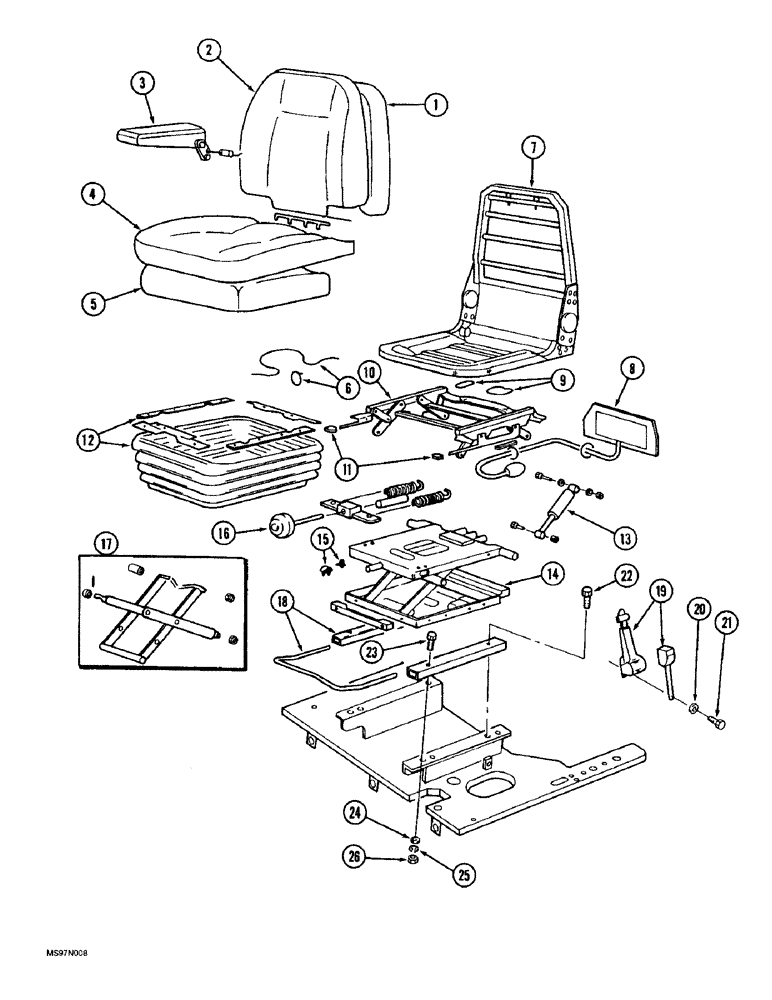

Запчасти Case 9030B (9-045A) - 300642A1 SUSPENSION SEAT ASSEMBLY, SEAT BACK CUSHION WITH CASE LOGO (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
300642A1
SEAT ASSY.
SEAT ASSEMBLY - operators, with belt and suspension, Includes: Ref. 1 - 21
1шт.
307040A1
SEAT ASSY.
SEAT ASSEMBLY - operators, without belt or suspension, Includes: Ref. 1, 2, 4 - 8
1шт.
1
P4841461
CUSHION
- backrest cushion (Ref. 2 fits over Ref.1)
1шт.
2
307042A1
DRIVER'S SEAT COVER
COVER - outer backrest cushion cover
1шт.
3
307048A1
ARMREST ASSY.
Right Hand and Left Hand
1шт.
4
P2547002
SEAT COVER
COVER - seat cushion
1шт.
5
P4841462
CUSHION
- seat
1шт.
6
P2447088
KIT
- recliner cable
1шт.
7
307043A1
FRAMEWORK
KIT - seat frame
1шт.
8
307044A1
KIT
- lumbar support, pneumatic
1шт.
307045A1
KIT
- height riser, Includes: Ref. 9 - 11
1шт.
9
307046A1
KIT
- spring, height riser
1шт.
10
NSS
NOT SOLD SEPARAT
RISER - height
1шт.
11
307047A1
SET OF PARTS
KIT - knobs, height riser
1шт.
12
307052A1
KIT
- suspension cover
1шт.
307049A1
SUSPENSION
KIT - suspension, seat, Includes: Ref. 13 - 17
1шт.
13
P4143253
SHOCK ABSORBER
KIT - shock absorber, seat
1шт.
14
NSS
NOT SOLD SEPARAT
FRAME - suspension
1шт.
15
307050A1
KIT
- suspension bumper stop
1шт.
16
P2447086
KIT
- weight adjustment
1шт.
17
307051A1
BEARING ASSY
- bearing, blocks and roll pins for four joints
1шт.
18
307053A1
KIT
- slide rail, seat
1шт.
19
304621A1
SAFETY BELT
SAFETY BELT, Kit
1шт.
20
895-18010
WASHER,10.5mm ID x 18mm OD x 1.6mm Thk
2шт.
21
614-10020
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd
2шт.
22
863-8016
HEX SOC SCREW,M8 x 16mm, Cl 12.9
SCREW, Hex Soc Hd, M8 x 16, 12.9
2шт.
23
614-8016
BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd
- hex, full threads, 8-1.25 x 16 mm
2шт.
25
892-11008
LOCK WASHER,8mm ID
WASHER, LOCK, , With attached lockwasher M8
4шт.
26
829-1408
NUT,Hex, M8 x 1.25, Cl 10.9
- hex, 8 mm - 1.25, class 10
4шт.
24
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
- flat, 9 x 17 x 1.6 mm, Operator's manual tether
4шт.
Выбрано товаров: 30
