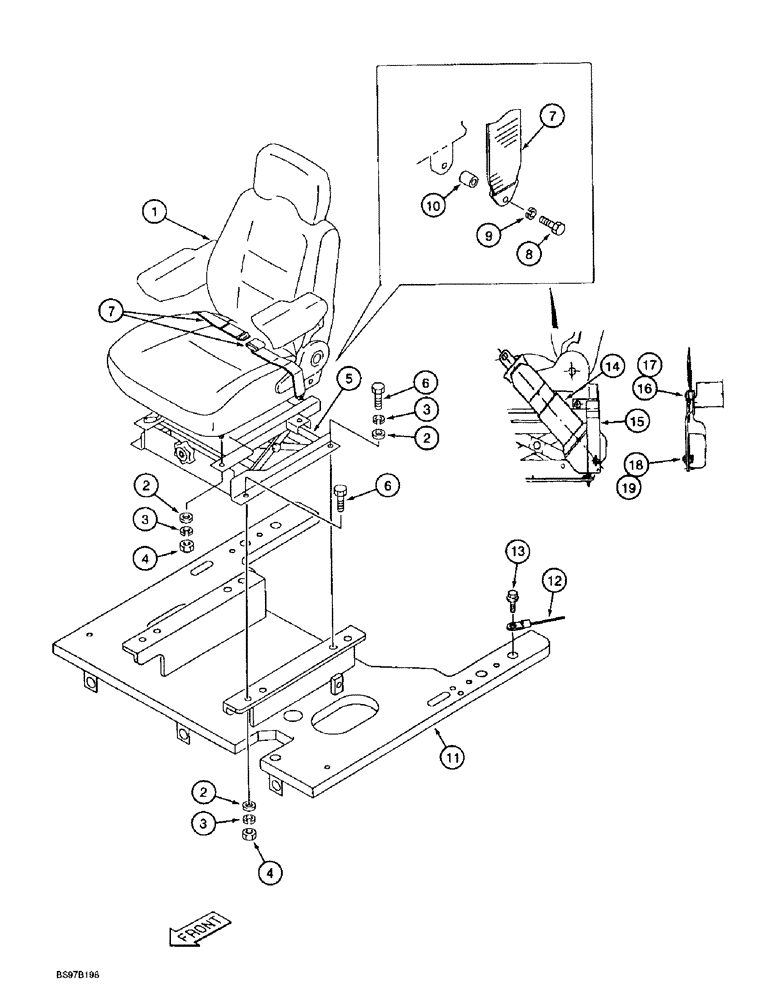

Запчасти Case 9030B (9-044) - SEAT, SEAT BELTS AND OPERATORS MANUAL TETHER, SEAT BACK CUSHION WITHOUT CASE LOGO (09) - CHASSIS

1

REF

INSTRUCTION

SEAT - operator's, see Figure 9-046 for correct assembly and components

1шт.

2

159500A1

WASHER

- flat, special

8шт.

3

159499A1

SPRING WASHER

WASHER - lock, special

8шт.

4

157770A1

NUT

- hex, special

6шт.

5

159526A1

SUSPENSION

- seat base

1шт.

164535A1

BASE

MEMBER - seat base, not shown

1шт.

164536A1

RUBBER BLOCK

STOP - rubber, not shown

2шт.

164537A1

ROLLER

- suspension, not shown

4шт.

164538A1

DAMPER

- oil, not shown

1шт.

6

159534A1

BOLT,High Strength, Hex, M8 x 25mm

BOLT - special

4шт.

7

151520A1

SAFETY BELT

SAFETY BELT, Includes Ref. 8 and 9

1шт.

8

151523A1

BOLT,High Strength, Hex

BOLT - hex

2шт.

9

151526A1

SPRING WASHER

WASHER - lock

2шт.

10

152755A1

SPACER

- 13.7 ID x 21.7 OD x 10 mm

1шт.

11

159540A1

PLATFORM

- seat mounting

1шт.

12

159895A1

CABLE,1500mm L

ROPE - steel wire, operator's manual tether

1шт.

13

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

BOLT - hex, special, with attached lockwasher

1шт.

14

165385A1

SAFETY BELT

SAFETY BELT, Retractable, Optional

1шт.

15

165386A1

BRACKET

- seat belt, optional retractable

1шт.

16

151523A1

BOLT,High Strength, Hex

BOLT - hex, optional retractable seat belt

2шт.

17

151526A1

SPRING WASHER

WASHER - lock, optional retractable seat belt

2шт.

18

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9, Optional retractable seat belt

1шт.

19

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm, optional retractable seat belt

1шт.
