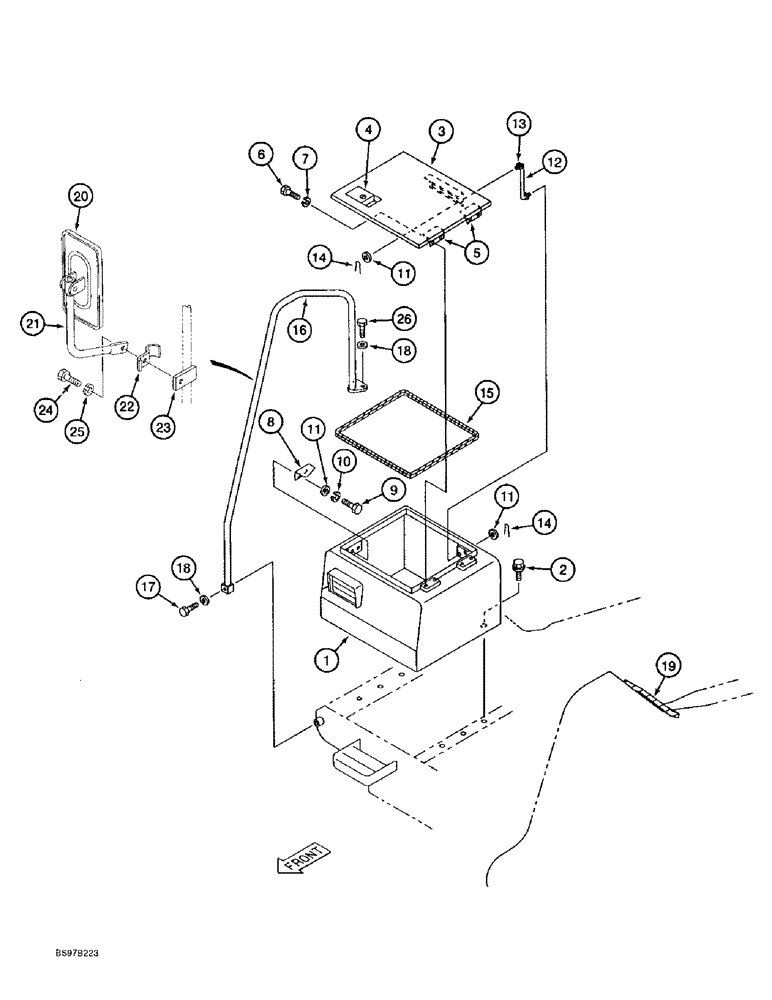

Запчасти Case 9030B (9-030) - UPPER STRUCTURE, STORAGE BOX AND REAR VIEW MIRROR (09) - CHASSIS

1

159113A1

COVER

BOX - storage

1шт.

2

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

6шт.

3

159117A1

COVER

- storage box, Includes: Ref. 4 and 5

1шт.

4

150938A1

LOCK

LATCH - recessed

1шт.

5

159118A1

HINGE

- storage box

2шт.

6

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 12 mm, class 10.9

2шт.

7

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

8

159114A1

BRACKET

- lock

1шт.

9

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

3шт.

10

892-11010

LOCK WASHER,M10

3шт.

12

159119A1

STAY

SUPPORT - cover, storage box, Includes: Ref. 13

1шт.

14

153181A1

COTTER PIN

CLIP - hair pin

2шт.

15

159116A1

GROMMET

SEAL - rubber, box cover

1шт.

16

162053A1

STAY

RAIL - hand

1шт.

17

828-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

- hex, 12 - 1.75 x 55 mm, class 10.9

2шт.

18

150811A1

WASHER

- flat, special, 12 mm

2шт.

19

159144A1

SEAL

CUSHION - rubber

1шт.

20

151025A1

MIRROR

- rear view

1шт.

21

156562A1

SUPPORT

ARM - rear view mirror

1шт.

22

150151A1

CLAMP

- special, rear view mirror

1шт.

23

150694A1

PLATE

- mirror mounting

1шт.

24

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

1шт.

25

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

26

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 12-1.75 x 35 mm, class 10.9

1шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

3шт.

13

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

2шт.
