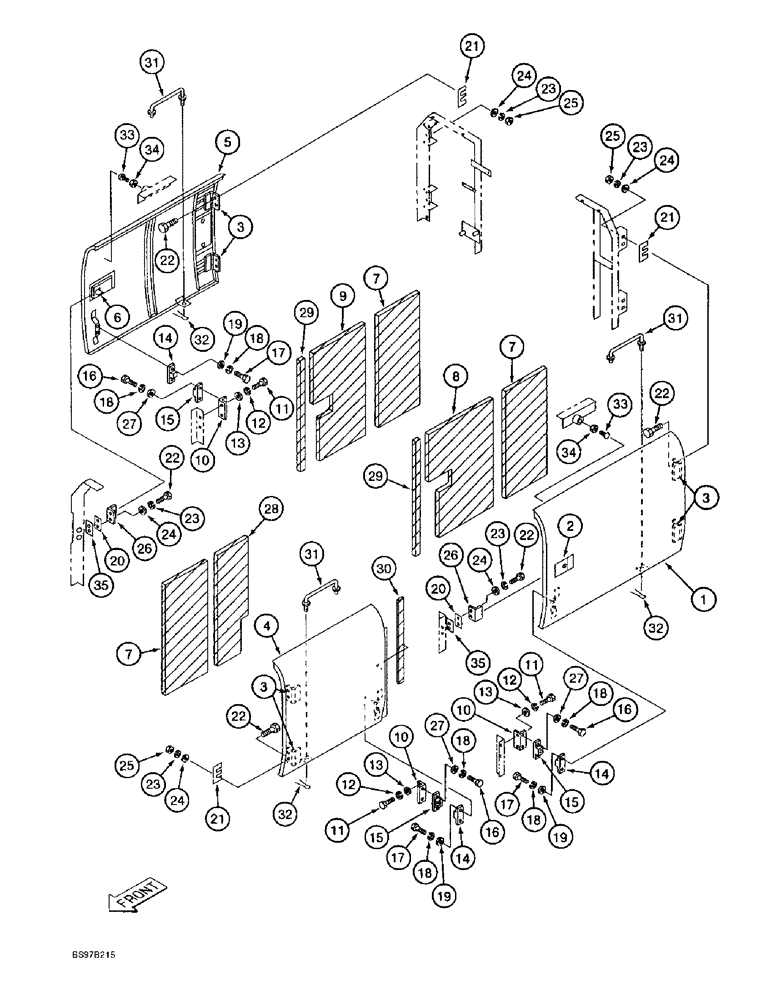

Запчасти Case 9030B (9-028) - UPPER STRUCTURE, LEFT AND RIGHT SIDE DOORS AND RELATED PARTS (09) - CHASSIS

1

159867A1

INSPECTION DOOR

DOOR ASSEMBLY - left-hand, rear, Includes: Ref. 2 and 3

1шт.

2

150938A1

LOCK

LATCH - recessed

1шт.

3

159098A1

HINGE

- door

6шт.

4

160761A1

INSPECTION DOOR

DOOR ASSEMBLY - left-hand, front, Includes: Ref. 6

1шт.

5

159865A1

INSPECTION DOOR

DOOR ASSEMBLY - right-hand, rear, Includes: Ref. 6

1шт.

6

150939A1

LOCK

LATCH - recessed

1шт.

7

159159A1

NOISE PROTECTION

INSULATION - acoustic

3шт.

8

159890A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

9

159891A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

10

159094A1

BRACKET

- door

3шт.

12

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

6шт.

14

159099A1

STOP

PER - door

3шт.

15

159095A1

BRACKET

- door

3шт.

16

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 20 mm, class 10.9

6шт.

17

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 12 mm, class 10.9

6шт.

18

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

12шт.

19

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

- flat, 6.6 x 12 x 1.6 mm

6шт.

20

152719A1

SHIM

PLATE - shim, 3.30 mm (0.13 inch) thick

1шт.

21

152651A1

ADJUSTING PLATE

SHIM - 1.27 mm (.05 inch) thick

1шт.

22

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 12-1.75 x 35 mm, class 10.9

10шт.

23

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

10шт.

24

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

10шт.

25

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm-1.75, class 10

6шт.

26

152720A1

BRACKET

- angle, recessed lock

4шт.

27

153360A1

WASHER

- flat, special

6шт.

28

159161A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

29

159135A1

SEAL

- cushion

2шт.

30

160760A1

GROMMET

CUSHION - rubber

1шт.

31

159101A1

STAY

HOLDER - door

3шт.

32

153181A1

COTTER PIN

CLIP - hair pin

3шт.

33

159091A1

STOP

PER - rubber

2шт.

35

158749A1

SHIM

PLATE - shim, 1.2 mm (0.05 inch) thick, for models P.I.N. DAC03#2001 and after only

1шт.

See Figure 1-2 for explanation of P.I.N. and model variations.

1шт.

11

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 8-1.25 x 25 mm, class 10.9

6шт.

34

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

6шт.
