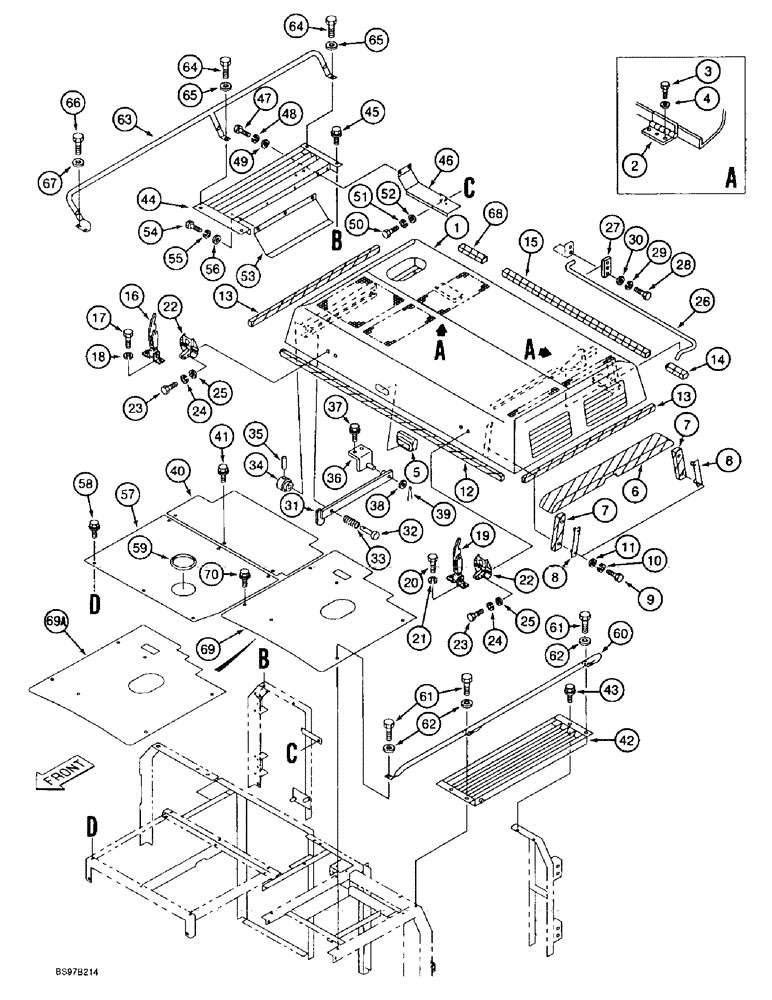

Запчасти Case 9030B (9-024) - UPPER STRUCTURE, HOOD, COVERS AND INSULATION (09) - CHASSIS

159874A1

HOOD ASSY.

HOOD ASSEMBLY - engine, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

HOOD - engine

1шт.

2

152819A1

HINGE

- hood

2шт.

3

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 20 mm, class 10.9

3шт.

4

150811A1

WASHER

- flat, special, 12 mm

6шт.

5

150484A1

HANDLE

- recessed, hood assembly

1шт.

6

159882A1

SEAL

- cushion

1шт.

7

159883A1

SEAL

- cushion

2шт.

8

161477A1

RETAINER

- seal

2шт.

9

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

- hex, 8 - 1.25 x 45 mm, class 10.9

4шт.

10

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

12

159879A1

NOISE PROTECTION

CUSHION - sponge rubber

1шт.

13

159878A1

CUSHION

- sponge rubber

2шт.

14

159880A1

ADHESIVE STRIP

CUSHION - sponge rubber

1шт.

15

159134A1

ADHESIVE STRIP

CUSHION - sponge rubber

1шт.

16

152423A1

LATCH

CATCH - hood assembly, right-hand

1шт.

17

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8-1.25 x 20 mm, class 10.9

2шт.

18

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

19

150790A1

LATCH

CATCH - hood assembly, left-hand

1шт.

20

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8-1.25 x 20 mm, class 10.9

2шт.

21

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

22

150785A1

STOP LOCK

LATCH - door assembly

2шт.

23

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8-1.25 x 20 mm, class 10.9

2шт.

24

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

26

159125A1

SPRING

- torsion-type, hood assembly

1шт.

27

159126A1

BRACKET

- torsion spring

1шт.

28

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8-1.25 x 20 mm, class 10.9

2шт.

29

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

31

159128A1

STAY

SUPPORT - hood assembly

1шт.

32

159127A1

HEADED PIN

PIN - clevis

1шт.

33

159877A1

SPRING

- compression

1шт.

34

159129A1

SPACER

COLLAR - special

1шт.

35

738-5332

PIN, ROLL

PIN - roll, 3 x 32 mm, collar

1шт.

36

159124A1

BRACKET

- hood support

1шт.

37

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

38

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

39

160762A1

COTTER PIN

CLIP - hair pin

1шт.

40

160757A1

COVER

- upper structure, top

1шт.

41

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

3шт.

42

159854A1

SIEVE

COVER - upper structure, left-hand, front

1шт.

43

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

44

159857A1

FRAME

COVER - upper structure, right-hand, rear

1шт.

45

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

46

159859A1

COVER

- upper structure, filler, right-hand, rear

1шт.

47

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8-1.25 x 20 mm, class 10.9

1шт.

48

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

50

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

1шт.

51

892-11010

LOCK WASHER,M10

1шт.

53

159858A1

COVER

- upper structure, filler, right-hand, center

1шт.

54

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8-1.25 x 20 mm, class 10.9

3шт.

55

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

57

159112A1

COVER

- upper structure, center, front

1шт.

58

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

6шт.

59

152804A1

GROMMET

- rubber

1шт.

60

159872A1

STAY

RAIL - hand, upper structure, left-hand

1шт.

61

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12-1.75 x 30 mm, class 10.9

3шт.

62

150811A1

WASHER

- flat, special, 12 mm

3шт.

63

159873A1

STAY

RAIL - hand, upper structure, right-hand

1шт.

64

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12-1.75 x 30 mm, class 10.9

2шт.

65

150811A1

WASHER

- flat, special, 12 mm

2шт.

66

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 12-1.75 x 35 mm, class 10.9

2шт.

67

150811A1

WASHER

- flat, special, 12 mm

2шт.

68

159881A1

CUSHION

- sponge rubber

1шт.

69

159870A1

COVER

- upper structure, center, left-hand, for models prior to P.I.N DAC03#2001

1шт.

See Figure 1-2 for explanation of P.I.N. and model variations.

1шт.

69a

164709A1

COVER

- upper structure, center, left-hand, for models P.I.N. DAC03#2001 and after

1шт.

See Figure 1-2 for explanation of P.I.N. and model variations.

1шт.

70

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

5шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

4шт.

25

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

2шт.

30

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

2шт.

49

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

1шт.

56

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

3шт.

52

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

1шт.
