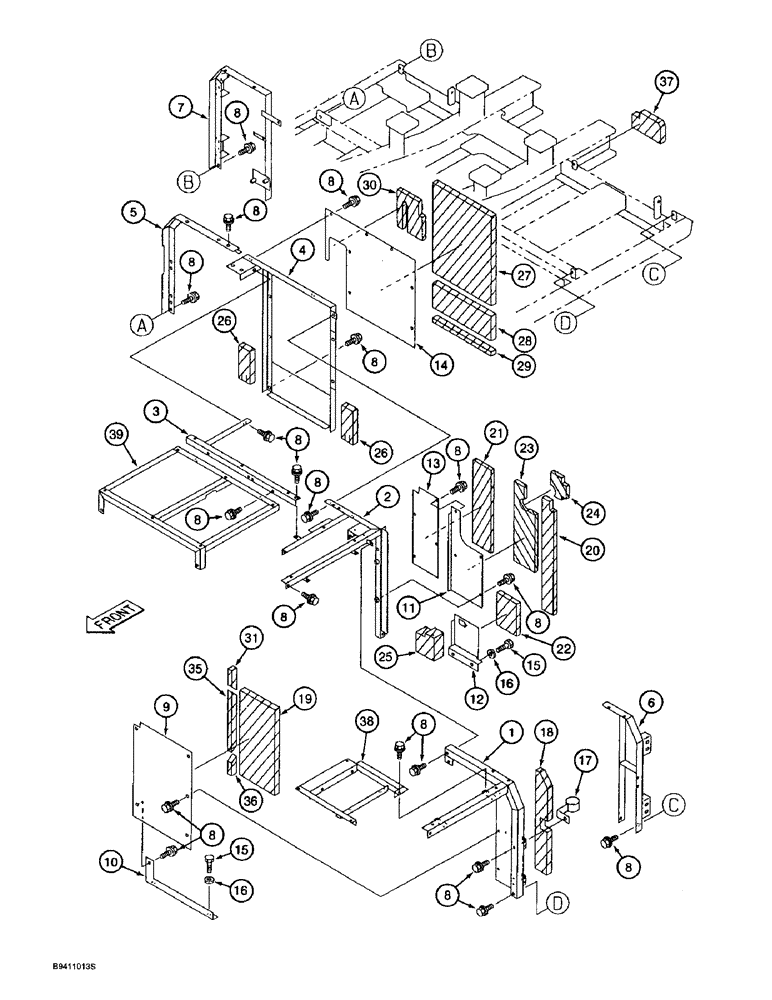

Запчасти Case 9030B (9-020) - UPPER STRUCTURE, FRAMES, COVERS AND INSULATION, PRIOR TO P.I.N. DAC03#2001 (09) - CHASSIS

1

161475A1

FRAME

- upper structure, left-hand

1шт.

2

159863A1

FRAME

- upper structure, left-hand

1шт.

3

159864A1

FRAME

- upper structure, center

1шт.

4

159860A1

FRAME

- upper structure, center

1шт.

5

159855A1

FRAME

- upper structure, right-hand

1шт.

6

161476A1

FRAME

- upper structure, left-hand

1шт.

7

161474A1

FRAME

- upper structure, right-hand

1шт.

8

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

67шт.

9

159869A1

COVER

- center, left-hand

1шт.

10

159108A1

COVER

FRAME - center, left-hand

1шт.

11

159106A1

COVER

- center, left-hand

1шт.

12

159107A1

COVER

- center, left-hand

1шт.

13

159105A1

COVER

- center, left-hand

1шт.

14

159868A1

COVER

- center, special

1шт.

15

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12-1.75 x 30 mm, class 10.9

9шт.

16

150811A1

WASHER

- flat, special, 12 mm

18шт.

17

159871A1

HOLDER

- special

1шт.

18

159893A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

19

159892A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

20

159889A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

21

159152A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

22

159157A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

23

159887A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

24

159888A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

25

159142A1

SEAL

- cushion

1шт.

26

159153A1

NOISE PROTECTION

INSULATION - acoustic

2шт.

27

159894A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

28

159155A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

29

159154A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

30

159141A1

SEAL

- cushion

1шт.

31

159886A1

SEAL

- cushion

1шт.

32

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8-1.25 x 20 mm, class 10.9

15шт.

33

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

25шт.

35

159884A1

SEAL

- cushion

1шт.

36

159885A1

SEAL

- cushion

1шт.

37

159143A1

SEAL

- cushion

1шт.

38

160659A1

FRAME

- upper structure, left-hand

1шт.

39

159861A1

FRAME

- upper structure, center

1шт.

34

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

21шт.
