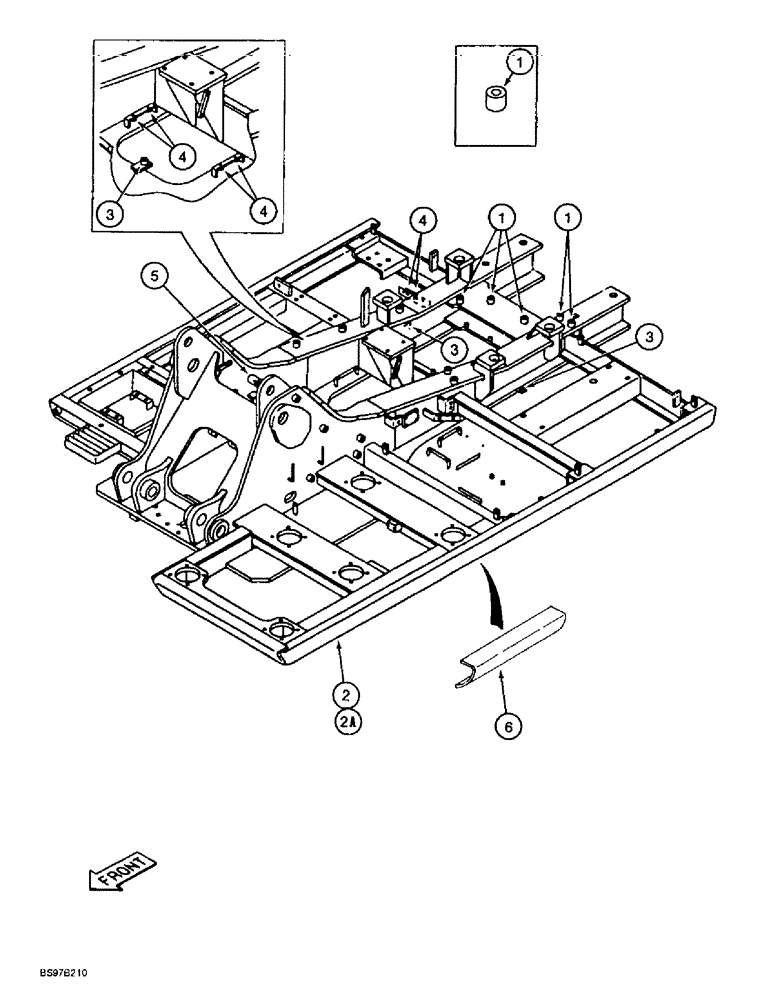

Запчасти Case 9030B (9-012) - TURNTABLE, TIMBER KING MODELS (09) - CHASSIS

1

158811A1

BOSS

- special

40шт.

2

163828A1

FRAME

- revolving, complete, for models prior to P.I.N. DAC0332001

1шт.

2a

165609A1

FRAME

- revolving, complete, for models P.I.N. DAC0332001 and after

1шт.

3

158918A1

SPECIAL NUT

- special

3шт.

4

829-1308

NUT,M8, Cl 10

- hex, 8 mm - 1.25, Cl 10

6шт.

5

829-1312

NUT,M12 x 1.75, Cl 10

- hex, 12 mm - 1.75, class 10

1шт.

6

159752A1

ANGLE BAR

GUARD - formed angle iron, 2546 mm (100 inch) long, frame repair

1шт.

Repair guard used on turntable sides. Guard is long enough to repair any side of the turntable. Cut and use the required length for the damaged side.

1шт.
