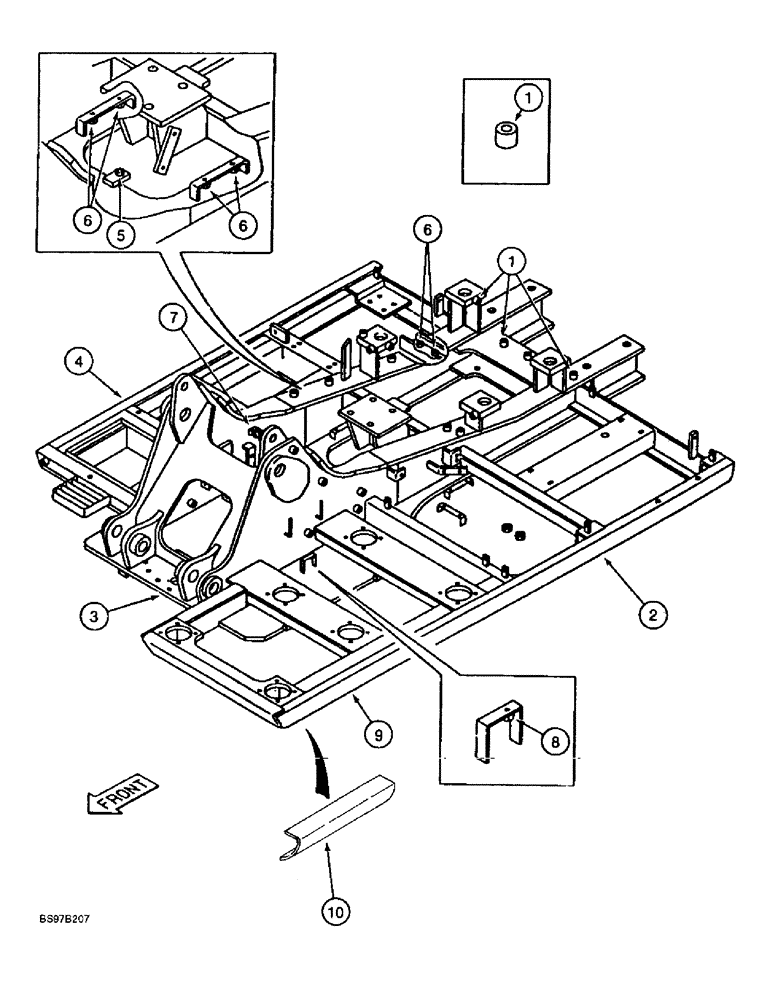

Запчасти Case 9030B (9-006) - TURNTABLE, STANDARD MODELS PRIOR TO P.I.N. DAC0301004 (09) - CHASSIS

1

158811A1

BOSS

- special

39шт.

2

159749A1

PLATFORM

- turntable, left-hand, replaced by Ref. 9, complete frame assembly, not available, order Ref. 10, 161022A1 frame, on Figure 9-008

1шт.

3

159753A1

FRAME

PLATFORM - boom mounting, replaced by Ref. 9, complete frame assembly, not available, order Ref. 10, 161022A1 frame, on Figure 9-008

1шт.

4

159754A1

PLATFORM

- turntable, right-hand, replaced by Ref. 9, complete frame assembly, not available, order Ref. 10, 161022A1 frame, on Figure 9-008

1шт.

5

158918A1

SPECIAL NUT

- special

1шт.

6

829-1308

NUT,M8, Cl 10

- hex, 8 mm - 1.25, Cl 10

6шт.

7

829-1312

NUT,M12 x 1.75, Cl 10

- hex, 12 mm - 1.75, class 10

1шт.

8

829-1306

NUT,M6, Cl 10

- hex, 6 mm-1.0, class 10

1шт.

9

161697A1

FRAME ASSY

FRAME - revolving, complete, not available order Ref. 10, 161022A1 frame, on Figure 9-008

1шт.

10

159752A1

ANGLE BAR

GUARD - formed angle iron, 2546 mm (139.33 inch) long, frame repair

1шт.

Repair guard used on turntable sides. Guard is long enough to repair any side of the turntable. Cut and use the required length for the damaged side.

1шт.
