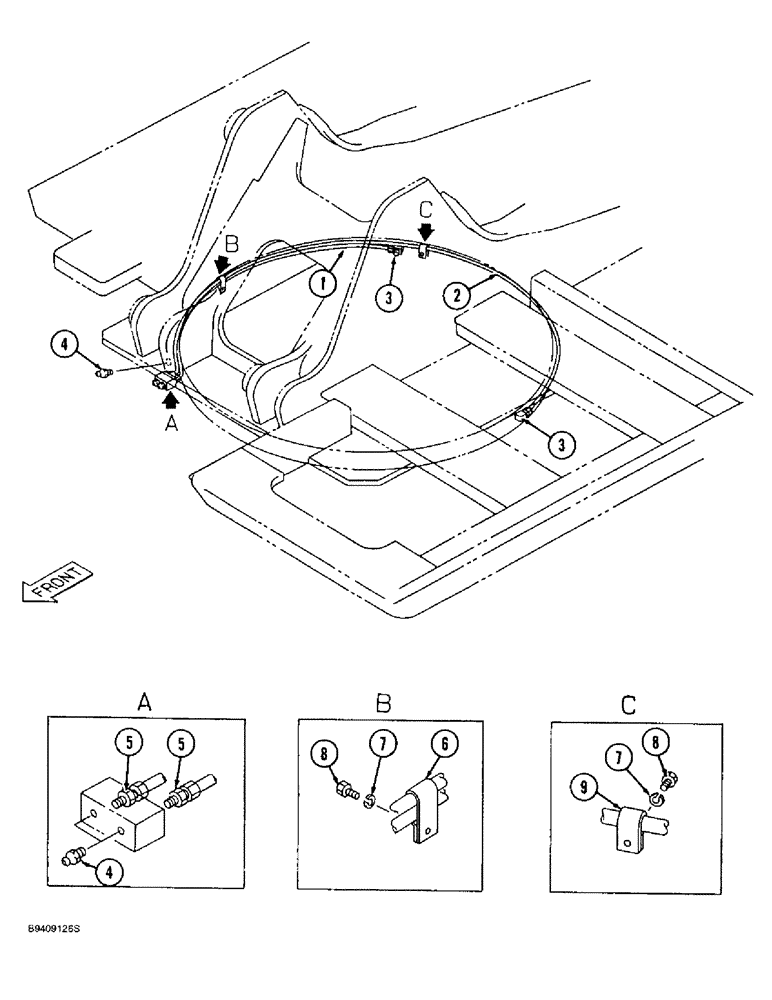

Запчасти Case 9030B (9-004) - TURNTABLE BEARING LUBRICATION LINES, ALL MODELS EXCEPT TIMBER KING MODELS (09) - CHASSIS

1

159767A1

TUBE ASSY.,817.8, 99 mm Length

TUBE - metal, lubrication

1шт.

2

159766A1

TUBE ASSY.

TUBE - metal, lubrication

1шт.

3

152627A1

ELBOW

- 90 degree, special

2шт.

4

153630A1

LUBE NIPPLE

FITTING - grease, straight

3шт.

5

152599A1

MULTIPOLE CONNECTOR

CONNECTOR - straight, special

2шт.

6

150578A1

CLAMP

- P-type

1шт.

7

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

8

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 12 mm, class 10.9

2шт.

9

150566A1

CLAMP

- P-type

1шт.
