(9-004[1]) - TURNTABLE BEARING LUBRICATION LINES, TIMBER KING MODELS

Запчасти Case 9030B (9-004[1]) - TURNTABLE BEARING LUBRICATION LINES, TIMBER KING MODELS (09) - CHASSIS

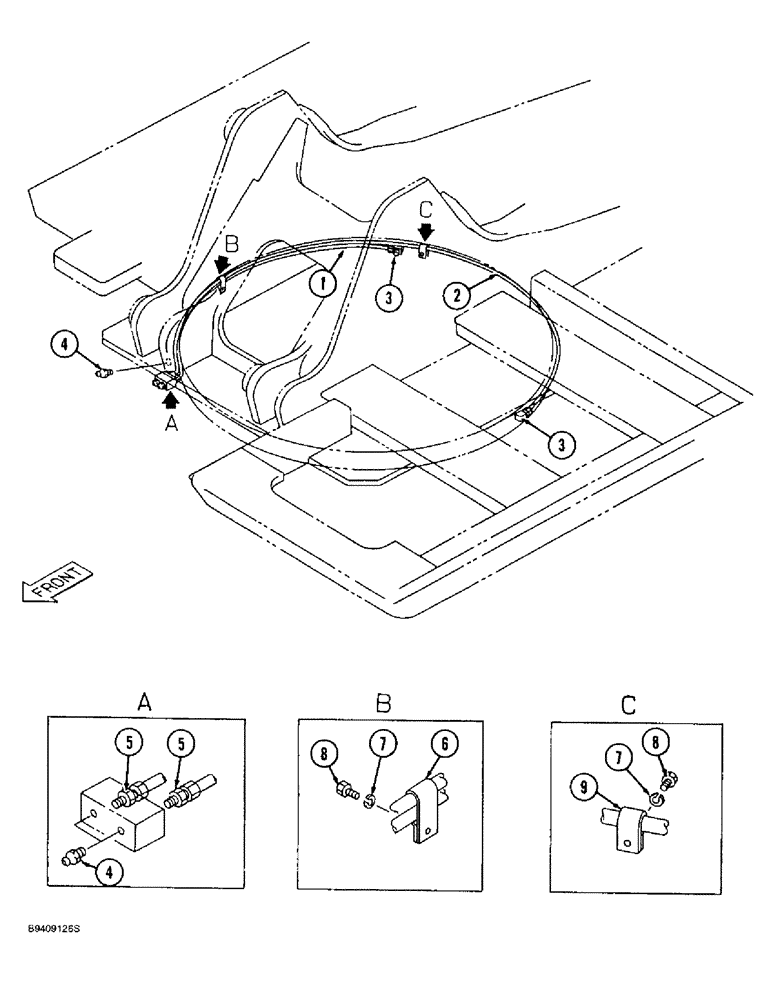

Схема запчастей Case 9030B - (9-004[1]) - TURNTABLE BEARING LUBRICATION LINES, TIMBER KING MODELS (09) - CHASSIS
7
8
8
7
4
6
9
4
5
1
6
5
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

164216A1

TUBE

- metal, lubrication

1шт.

2

164217A1

TUBE

- metal, lubrication

1шт.

3

152627A1

ELBOW

- 90 degree, special

2шт.

4

153630A1

LUBE NIPPLE

FITTING - grease, straight

3шт.

5

152599A1

MULTIPOLE CONNECTOR

CONNECTOR - straight, special

2шт.

6

150578A1

CLAMP

- P-type

1шт.

7

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

8

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 12 mm, class 10.9

2шт.

9

150566A1

CLAMP

- P-type

1шт.
