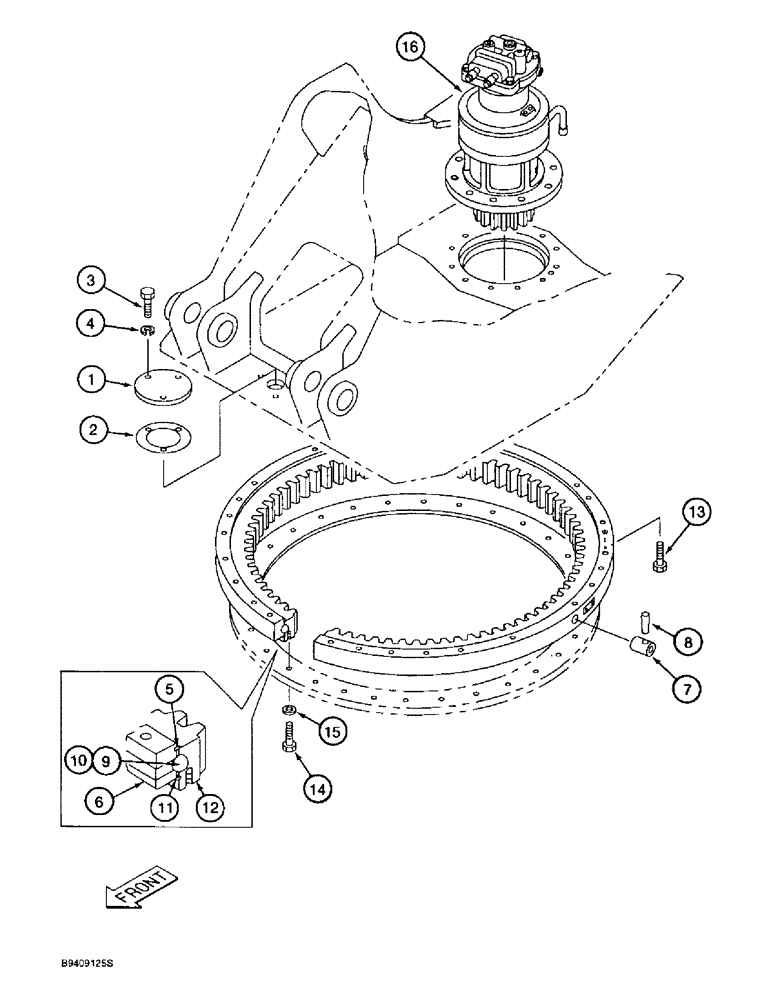

Запчасти Case 9030B (9-002) - TURNTABLE BEARING, ALL MODELS EXCEPT TIMBER KING MODELS (09) - CHASSIS

1

158929A1

LID

COVER - access, grease fill, turntable gear

1шт.

2

158930A1

CORK SEAL

GASKET - access cover

1шт.

3

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm, class 10.9

3шт.

4

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

3шт.

160434A1

CROWN WHEEL

BEARING ASSEMBLY - turntable, Includes: Ref. 5 - 12

1шт.

5

159762A1

SEALING RING

RING - seal

1шт.

6

NSS

NOT SOLD SEPARAT

RACE - bearing, outer

1шт.

7

NSS

NOT SOLD SEPARAT

STOPPER - turntable

1шт.

8

160433A1

DOWEL

PIN - special

1шт.

9

150980A1

BEARING, BALL,28.57mm OD

BEARING - ball, turntable

120шт.

10

159764A1

SPACER

- ball bearing, for standard or special application models

120шт.

10

163865A1

SPACER

- ball bearing, for long reach (21ft. arm) models only

120шт.

11

159763A1

SEALING RING

RING - seal

1шт.

12

NSS

NOT SOLD SEPARAT

RACE - bearing, inner

1шт.

13

827-20100

BOLT,Hex, M20 x 2.5 x 100mm, Cl 10.9

High strength Hex, M20 x 100, 10.9

31шт.

14

827-20065

BOLT,Hex, M20 x 2.5 x 65mm, Cl 10.9, Full Thd

- hex, 20 - 2.5 x 65 mm, class 10.9

36шт.

15

150817A1

WASHER,21mm ID x 40mm OD x 4.5mm Thk

- flat, special

47шт.

16

REF

INSTRUCTION

MOTOR ASSEMBLY - swing, see Figure 8-186

1шт.
