(2-12) - RADIATOR ASSEMBLY, PRIOR TO P.I.N. DAC03#2001

Запчасти Case 9030B (2-12) - RADIATOR ASSEMBLY, PRIOR TO P.I.N. DAC03#2001 (02) - ENGINE

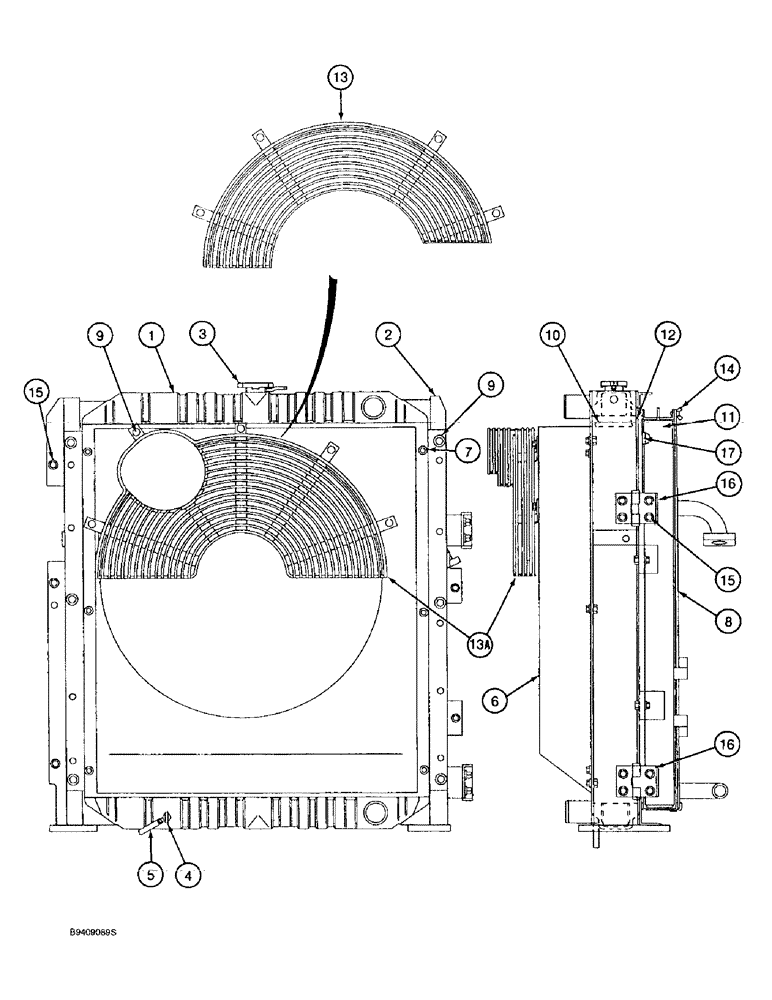

Схема запчастей Case 9030B - (2-12) - RADIATOR ASSEMBLY, PRIOR TO P.I.N. DAC03#2001 (02) - ENGINE
3
5
15
16
16
6
15
17
12
13a
13
1
4
9
10
8
7
14
2
9
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

159783A1

RADIATOR

ASSEMBLY - water and hydraulic oil cooling, Includes: Ref. 1 - 17

1шт.

1

161896A1

RADIATOR

- water

1шт.

2

161921A1

FRAME

- radiator

1шт.

3

156601A1

PLUG

CAP - radiator

1шт.

4

156602A1

COCK

VALVE - drain

1шт.

5

156603A1

HOSE

- radiator drain

1шт.

6

161922A1

SHROUD

- radiator

1шт.

7

156599A1

BOLT

BOLT - special

6шт.

8

151399A1

PROTECTOR

SCREEN - radiator

1шт.

9

158870A1

BOLT

BOLT - special, with shakeproof washer

11шт.

10

160322A1

PACKING

PAD - insulation

2шт.

11

161897A1

COOLER, OIL

COOLER - oil

1шт.

12

160321A1

PACKING

PAD - insulation

2шт.

13

158155A1

GUARD

- fan, machines without air conditioning compressor

1шт.

13a

162166A1

GUARD ASSY.

GUARD - fan, machines with air conditioning compressor

1шт.

14

156606A1

BOLT,Wing, M6

BOLT - wing type, special

2шт.

15

158869A1

BOLT

- special

13шт.

16

156419A1

HINGE

- radiator

2шт.

17

161919A1

PACKING

PAD - insulation

2шт.
