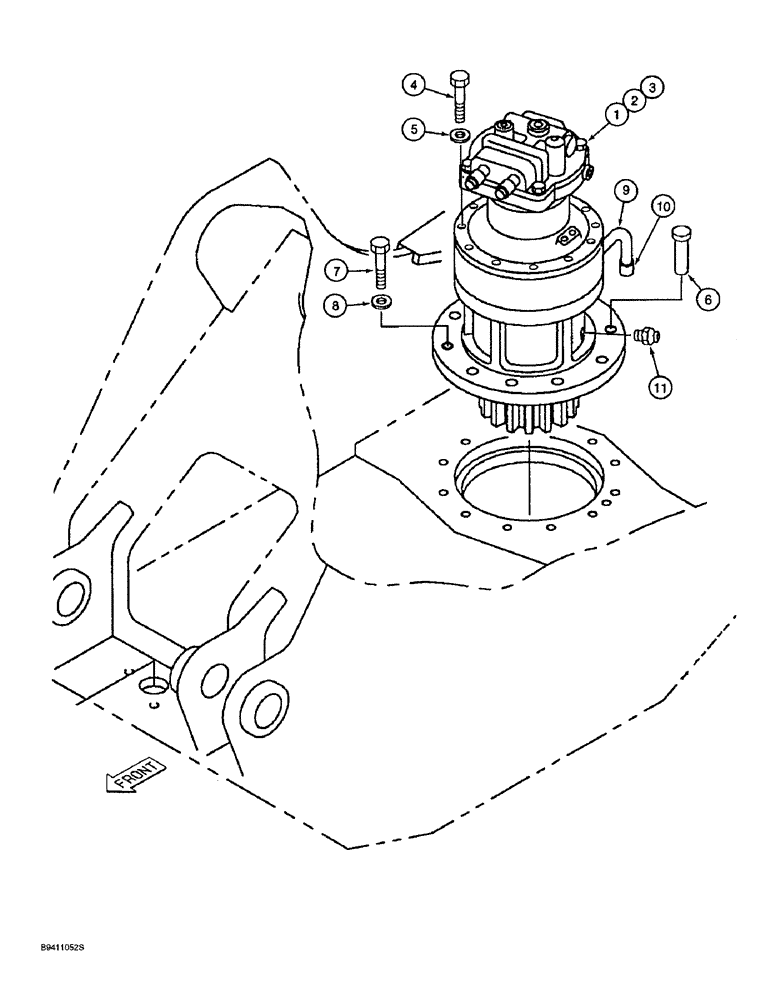

Запчасти Case 9030B (8-184) - SWING DRIVE ASSEMBLY MOUNTING (08) - HYDRAULICS

1

NSS

NOT SOLD SEPARAT

MOTOR ASSEMBLY - swing, with reduction gear, Standard and Special Application models, was 160437A1, is 165372A1, Includes: Ref. 4 and 5

1шт.

Ref# 1 - 165372A1 = NSS. Order 165610A1 Swing Motor and 160560A1 Reduction Gear. 11/06/97

1шт.

1

NSS

NOT SOLD SEPARAT

MOTOR ASSEMBLY - swing, with reduction gear, Long Reach and Timber King models, was 163866A1 on Long Reach models, is 164612A1, Includes: Ref. 4 and 5

1шт.

Ref# 1 - 164612A1 = NSS. Order 165611A1 Swing Motor and 160560A1 Reduction Gear. 11/06/97

1шт.

2

165610A1

MOTOR

ASSEMBLY - swing, without reduction gear, Standard and Special Application models, was 160637A1, see Figure 8-186

1шт.

2

165611A1

MOTOR

ASSEMBLY - swing, without reduction gear, Long Reach and Timber King models, see Figure 8-186

1шт.

3

160560A1

MOTO-REDUCTION GEAR

GEAR ASSEMBLY - reduction, swing drive, see Figure 8-188

1шт.

LN00111R

REMAN-REDUCTION UNIT

9030B (11/94-) Reman for new P/N 160560A1

1шт.

LN00111C

CORE-REDUCTION UNIT

Return Number

1шт.

4

826-12150

BOLT,Hex, M12 x 1.75 x 150mm, Cl 10.9

BOLT - hex, 12-1.75 x 150 mm, class 10.9

16шт.

5

892-10012

LOCK WASHER,M12

WASHER - lock, 12 mm

16шт.

6

158955A1

HEADED PIN

PIN - headed, special, locator

1шт.

7

827-20075

BOLT,Hex, M20 x 2.5 x 75mm, Cl 10.9, Full Thd

- hex, 20 - 2.5 x 75 mm, class 10.9

11шт.

8

150817A1

WASHER,21mm ID x 40mm OD x 4.5mm Thk

- flat, special

11шт.

9

159776A1

TUBE ASSY.,17.3 mm OD, 235, 110 mm Length

TUBE - drain, Standard, Special Application and Long Reach models

1шт.

9

158956A1

TUBE

- drain, Timber King models

1шт.

10

159390A1

CAPSCREW,Flat Hd, M4 x 30mm, Cl 8.8

CAP - tube

1шт.

11

153630A1

LUBE NIPPLE

FITTING - grease, straight

1шт.
