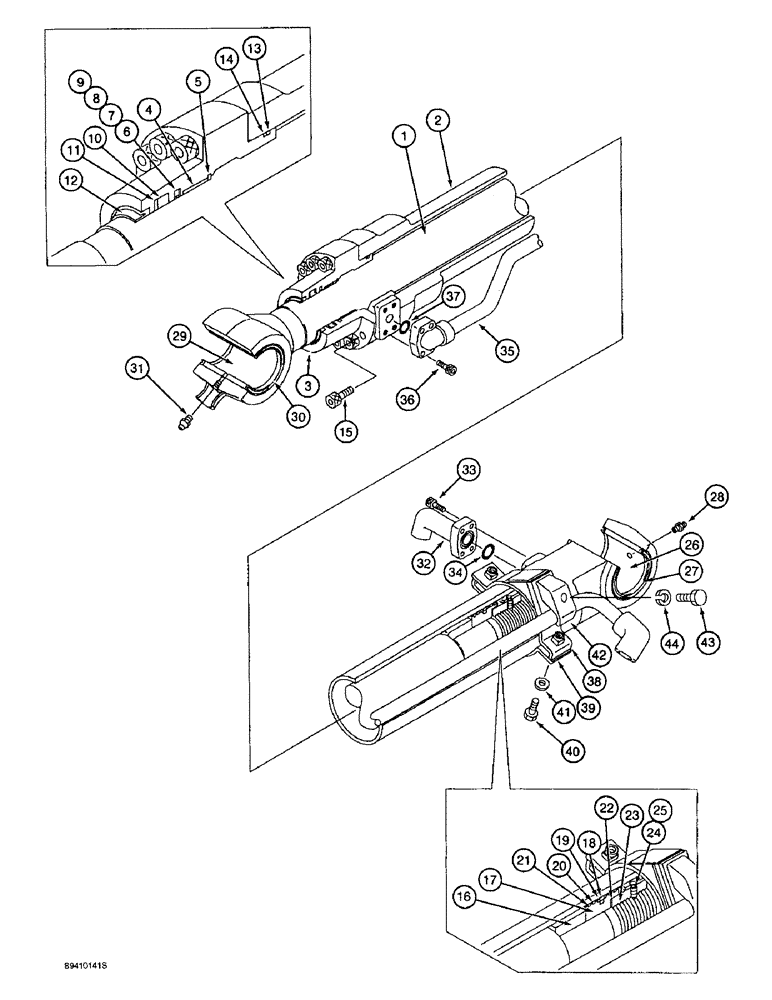

Запчасти Case 9030B (8-180) - BUCKET CYLINDER, MODELS WITHOUT LONG REACH (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
KRV2837
BUCKET CYLINDER
CYLINDER ASSEMBLY - 120 (4-3/4 ID) x 1012 mm (39-7/8 inch) stroke, bucket, for models without long reach, Includes: Ref. 1 - 44, Replaces 160458A1
1шт.
160588A1
PISTON ROD
KIT - rod replacement, Includes: Ref. 1 and 29 below
1шт.
1
NSS
NOT SOLD SEPARAT
ROD - bucket cylinder
1шт.
160587A1
PIPE SET
KIT - tube replacement, Includes: Ref. 2 and 26 below
1шт.
2
NSS
NOT SOLD SEPARAT
TUBE - bucket cylinder
1шт.
160582A1
GLAND
KIT - gland replacement, Includes: Ref. 3 thru 5 below
1шт.
3
160564A1
CYLINDER END CAP
GLAND - cylinder
1шт.
4
155430A1
BUSHING
- gland
1шт.
5
155696A1
RING, SNAP
RING - snap, Replaces 155698A1
1шт.
6
LE00766
SEAL,80mm ID x 96.2mm OD x 5.8mm Thk
ASSEMBLY - buffer, Replaces 160501A1
1шт.
Part of seal replacement KIT, P/N 160581A1
1шт.
7
LE00766
SEAL,80mm ID x 96.2mm OD x 5.8mm Thk
- slide, Replaces 160524A1
1шт.
Part of seal replacement KIT, P/N 160581A1
1шт.
8
LE00766
SEAL,80mm ID x 96.2mm OD x 5.8mm Thk
- backup, Replaces 160510A1
1шт.
Part of seal replacement KIT, P/N 160581A1
1шт.
9
LE00766
SEAL,80mm ID x 96.2mm OD x 5.8mm Thk
- square, Replaces 160529A1
1шт.
Part of seal replacement KIT, P/N 160581A1
1шт.
10
155132A1
RING,80mm ID x 95mm OD x 9mm Thk
SEAL - U-cup
1шт.
Part of seal replacement KIT, P/N 160581A1
1шт.
11
155241A1
BACK-UP RING
RING - backup
1шт.
Part of seal replacement KIT, P/N 160581A1
1шт.
12
158033A1
WIPER SEAL
WIPER - piston rod
1шт.
Part of seal replacement KIT, P/N 160581A1
1шт.
13
154753A1
O-RING,114.4mm ID x 3.1mm Width
- seal, Replaces 160514A1
1шт.
Part of seal replacement KIT, P/N 164183A1
1шт.
14
155234A1
BACK-UP RING
RING - backup
1шт.
Part of seal replacement KIT, P/N 160581A1
1шт.
15
161059A1
BOLT,Hex Skt, M16 x 70mm, Cl 12.9
Hex Soc Hd, M16 x 70, 12.9, Replaces 863-16070
12шт.
16
LE00794
SEALING RING
RING - cushion, Replaces 160552A1
1шт.
17
LJ00756
JACK PISTON
PISTON - cylinder, Replaces 160572A1
1шт.
18
155313A1
SEALING RING
SEAL - piston
1шт.
Part of seal replacement KIT, P/N 160581A1
1шт.
19
LE00705
BACK-UP RING
RING - backup, Replaces 160512A1
2шт.
Part of seal replacement KIT, P/N 160581A1
1шт.
20
155326A1
RING
- wear
2шт.
Part of seal replacement KIT, P/N 160581A1
1шт.
21
155308A1
RING
- wear
2шт.
Part of seal replacement KIT, P/N 160581A1
1шт.
22
155737A1
SHIM
WASHER - flat, special, Replaces 155721A1
1шт.
Part of seal replacement KIT, P/N 160581A1
1шт.
23
LA00711
NUT
- special, Replaces156219A1
1шт.
24
156223A1
SET SCREW
SCREW - set
1шт.
25
155977A1
BALL
- steel, Replaces 160393A1
1шт.
26
160534A1
BUSHING
- mounting pin, cylinder tube end
1шт.
27
160482A1
WIPER SEAL
WIPER - pin, cylinder end, Replaces 160500A1
2шт.
29
160535A1
BUSHING
- mounting pin, rod end
1шт.
32
155516A1
TUBE
TUBE - hydraulic, cylinder end
1шт.
33
87016471
HEX SOC SCREW,M10 x 30mm, Cl 12.9
BOLT - hex socket, 10 - 1.5 x 30 mm, class 12.9, Replaces 861-10030
4шт.
34
154528A1
O-RING
- tube
1шт.
35
LR017560
HYD TUBE
TUBE - hydraulic, rod end, Replaces 160542A1
1шт.
36
87016471
HEX SOC SCREW,M10 x 30mm, Cl 12.9
BOLT - hex socket, 10 - 1.5 x 30 mm, class 12.9, Replaces 861-10030
4шт.
37
154528A1
O-RING
- tube
1шт.
38
160435A1
MOUNTING CLIP
CLAMP - band
1шт.
39
156376A1
MOUNTING CLIP
CLAMP - band
1шт.
40
158131A1
BOLT,High Strength, M10 x 1.5 x 35mm, Cl 10.9
BOLT - hex, special
2шт.
41
156227A1
WASHER
- lock, special
2шт.
42
155717A1
COLLAR
CLAMP - tube, special
1шт.
43
337476
BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9
- hex, 12-1.75 x 50 mm, class 10.9, Replaces 827-12050
1шт.
44
892-10012
LOCK WASHER,M12
WASHER - lock, 12 mm, Replaces 112312A1
1шт.
LZ00387
SEAL KIT
KIT - seal replacement, Includes: Ref. 6 thru 14 and 18 thru 22, Replaces 160581A1
1шт.
