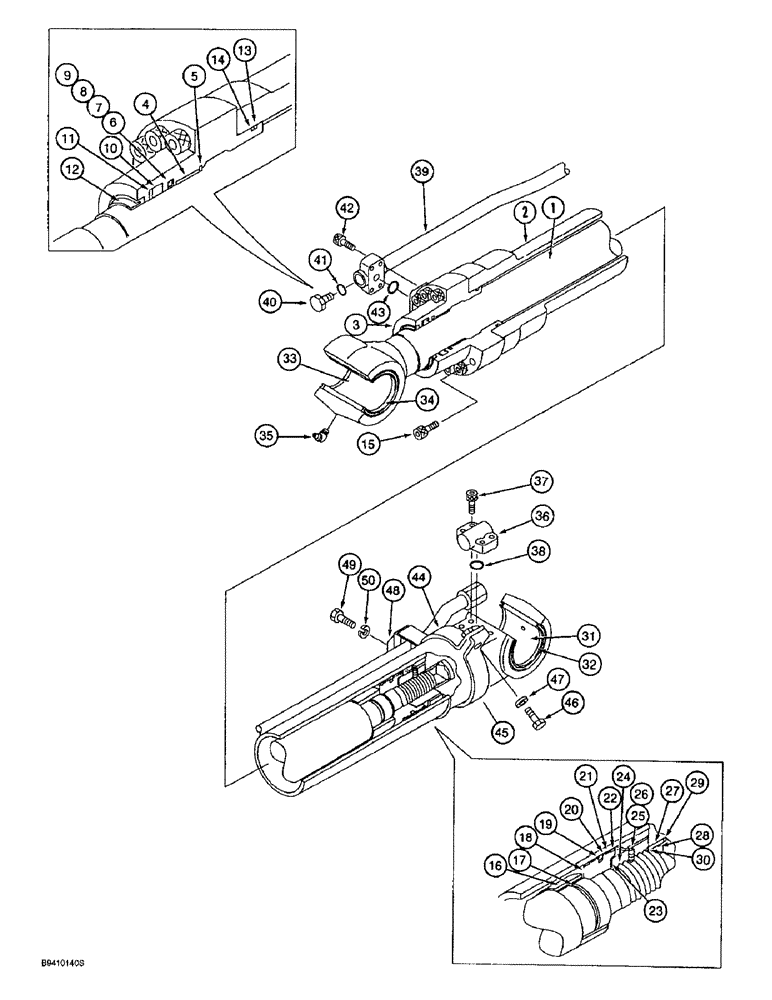

Запчасти Case 9030B (8-175A) - ARM CYLINDER, LONG REACH MODELS (08) - HYDRAULICS

159453A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 150 (5-15/16) ID x 1632 mm (64-1/4 inch) stroke, arm, for Long Reach models without load hold, Includes: Ref. 1 - 50

1шт.

162816A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 150 (5-15/16) ID x 1632 mm (64-1/4 inch) stroke, arm, for Long Reach models with load hold, Includes: Ref. 1 - 50

1шт.

1

NSS

NOT SOLD SEPARAT

ROD ASSEMBLY - cylinder, see kit below

1шт.

2

NSS

NOT SOLD SEPARAT

TUBE ASSEMBLY - cylinder, see kit below

1шт.

3

160172A1

CYLINDER END CAP

GLAND - cylinder

1шт.

4

160049A1

BUSHING

- gland

1шт.

5

155711A1

RING, SNAP

RING - retaining

1шт.

6

160124A1

SEALING RING

RING - buffer

1шт.

7

160017A1

RING

- slide

1шт.

8

159996A1

BACK-UP RING

RING - backup

1шт.

9

160021A1

RING

- square

1шт.

10

155118A1

RING

SEAL - U-cup

1шт.

11

155247A1

BACK-UP RING

RING - backup

1шт.

12

159999A1

O-RING

WIPER - piston rod

1шт.

13

154777A1

O-RING

- seal

1шт.

14

159997A1

BACK-UP RING

RING - backup

1шт.

15

160300A1

BOLT

BOLT - hex, special

12шт.

16

160120A1

RING

- cushion

1шт.

17

160126A1

SEAL

O-RING - seal

1шт.

18

160216A1

PISTON

- cylinder

1шт.

19

155314A1

SEALING RING

SEAL - ring

1шт.

20

160000A1

BACK-UP RING

RING - backup

2шт.

21

160018A1

RING

- wear

2шт.

22

155309A1

RING

- wear

2шт.

23

155733A1

SHIM

Washer - Special

1шт.

24

156230A1

NUT

- Piston retaining

1шт.

25

156228A1

SET SCREW

1шт.

26

155981A1

BALL

- Steel

1шт.

27

160121A1

RING

- cushion

1шт.

28

160127A1

SEAL

- Cushion

1шт.

29

160128A1

STOP

- Cushion

2шт.

30

160129A1

RING, SNAP

RING SNAP

1шт.

31

160048A1

BUSHING

- mounting pin, cylinder end

1шт.

32

155117A1

BACK-UP RING

WIPER - pin, cylinder end

2шт.

33

160048A1

BUSHING

- mounting pin, rod end

1шт.

34

155117A1

BACK-UP RING

WIPER - pin, rod end

2шт.

35

153630A1

LUBE NIPPLE

FITTING - grease, straight

1шт.

36

155530A1

TUBE

ELBOW - 90 degree, cylinder end

1шт.

37

160301A1

BOLT

- special

4шт.

38

154543A1

O-RING

- Elbow

1шт.

39

160088A1

HYD TUBE

TUBE ASSEMBLY - hydraulic, rod end, 159453A1 cylinder only, see Figure 8-178 for rod end connections on 162816A1 cylinder, Includes: Ref. 40 and 41

1шт.

40

152924A1

PLUG

- tube assembly sealing

1шт.

41

154503A1

O-RING

- port plug

1шт.

42

160301A1

BOLT

- special

4шт.

43

154543A1

O-RING

- Tube assembly

1шт.

44

160338A1

BAND

CLAMP - band

1шт.

45

160340A1

MOUNTING CLIP

CLAMP - band

1шт.

46

158131A1

BOLT,High Strength, M10 x 1.5 x 35mm, Cl 10.9

BOLT - hex, special

2шт.

47

156227A1

WASHER

- lock, special

2шт.

48

155717A1

COLLAR

CLAMP - tube, special

1шт.

49

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

- hex, 12 - 1.75 x 50 mm, class 10.9

1шт.

50

112312A1

LOCK WASHER

- lock, 12 mm

1шт.

160227A1

SEAL KIT

KIT - seal replacement, contains Ref. 6 -14, 17, 19 -23, and 28, in the quantities specified

1шт.

160228A1

GASKET KIT

KIT - gland replacement, contains Ref. 3 - 5, in the quantities specified

1шт.

160359A1

PIPE SET

KIT - cylinder replacement, contains Ref. 2 and 31, in the quantities specified

1шт.

160360A1

SET OF PARTS

KIT - rod replacement, contains Ref. 1 and 33, in the quantities specified

1шт.
