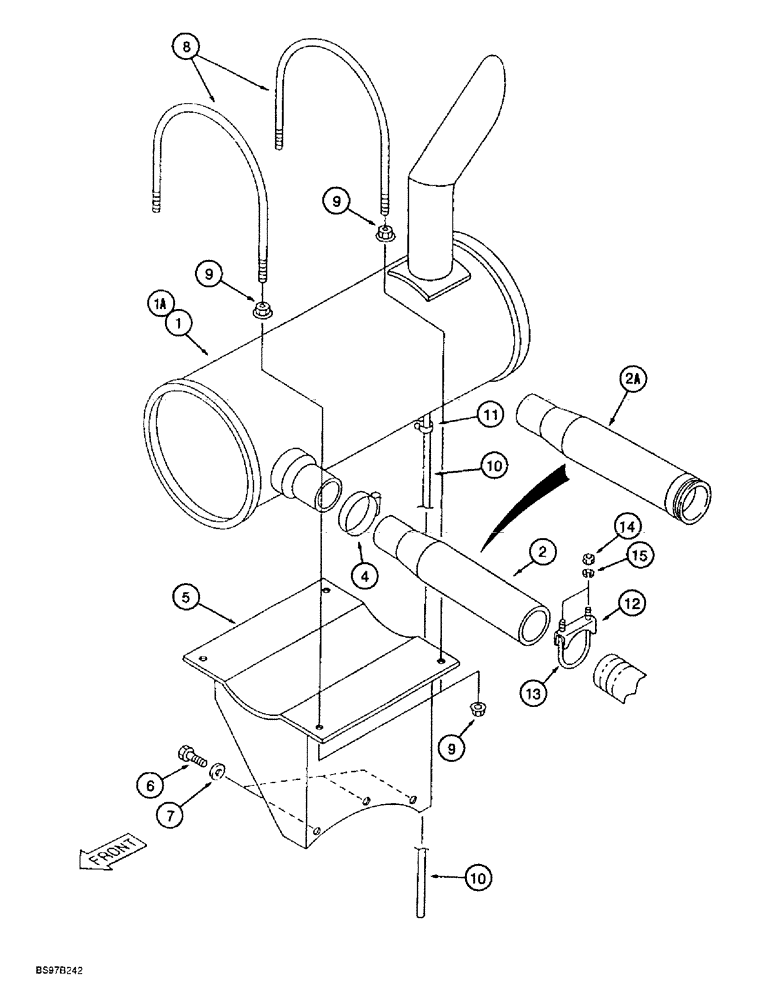

Запчасти Case 9030B (2-10) - MUFFLER AND EXHAUST SYSTEM (02) - ENGINE

1

159803A1

MUFFLER

- exhaust, Serial Range: -DAC032001

1шт.

1a

164704A1

MUFFLER

- exhaust, Start Serial: DAC032001

1шт.

2

152225A1

PIPE, EXHAUST SYSTEM

PIPE - exhaust, Serial Range: -DAC032001

1шт.

2a

164705A1

PIPE, EXHAUST SYSTEM

PIPE - exhaust, Start Serial: DAC032001

1шт.

Item 12,13,14,15 not needed

1шт.

4

150460A1

COLLAR

CLAMP - adjustable, exhaust, Serial Range: pipe-muffler

1шт.

5

152231A1

SUPPORT

BRACKET - muffler mounting

1шт.

6

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

- hex, 10 - 1.5 x 40 mm, class 10.9

3шт.

7

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

3шт.

8

152378A1

U-BOLT,M10 x 250mm W x 241mm L

BOLT - U type, special

2шт.

9

150472A1

FLANGE NUT

- hex flange, special, 8 mm-1.25

8шт.

10

150662A1

TUBE,10 mm ID, 950 mm Length

- drain, muffler, 950 mm (37-13/32 inch) long

1шт.

11

151367A1

COLLAR

CLAMP - adjustable, tube

1шт.

12

156695A1

SUPPORT

CLAMP - saddle, Serial Range: -DAC032001

1шт.

13

156694A1

U-BOLT,M10 x 86mm W x 80mm L

BOLT - U-type, Serial Range: -DAC032001

1шт.

15

892-11010

LOCK WASHER,M10

, Serial Range: -DAC032001

2шт.

14

829-1410

NUT,M10 x 1.5, Cl 10.9

, Serial Range: -DAC032001

2шт.
