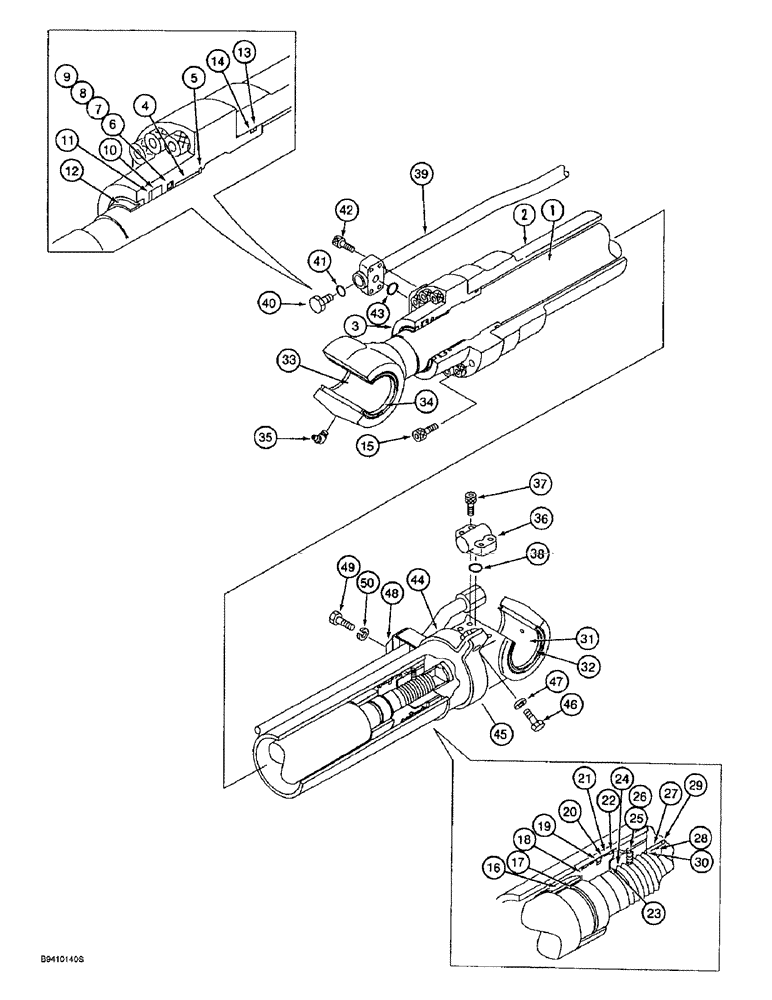

Запчасти Case 9030B (8-172) - ARM CYLINDER, MODELS WITHOUT LOAD HOLD OR LONG REACH OPTIONS (08) - HYDRAULICS

160457A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 135 (5-5/16) ID x 1580 mm (62-3/16 inch) stroke, arm, for models without load hold or long reach, Includes: Ref. 1 - 50

1шт.

1

NSS

NOT SOLD SEPARAT

ROD ASSEMBLY - cylinder, see kit below

1шт.

2

NSS

NOT SOLD SEPARAT

TUBE ASSEMBLY - cylinder, see kit below

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder, see kit below

1шт.

4

155429A1

BUSHING

- gland

1шт.

5

155695A1

RING, SNAP

RING - retaining

1шт.

6

160554A1

SEALING RING

RING - buffer

1шт.

7

160525A1

RING

- slide

1шт.

8

160511A1

BACK-UP RING

RING - backup

1шт.

9

160529A1

RING

- square

1шт.

10

155115A1

RING

SEAL - U-cup

1шт.

11

155236A1

BACK-UP RING

RING - backup

1шт.

12

160502A1

WIPER SEAL

WIPER - piston rod

1шт.

13

154777A1

O-RING

- seal

1шт.

14

159994A1

BACK-UP RING

RING - backup

1шт.

15

160299A1

BOLT,Hex Skt Hd

BOLT - hex, special

12шт.

16

160550A1

RING

- cushion

1шт.

17

155345A1

SEALING RING

RING - seal, seal

1шт.

18

164189A1

PISTON

- cylinder

1шт.

19

159961A1

SEALING RING

SEAL - piston

1шт.

20

159995A1

BACK-UP RING

RING - backup

2шт.

21

160526A1

RING

- wear

2шт.

22

160016A1

RING

- wear

2шт.

23

155722A1

SHIM

WASHER - flat, special

1шт.

24

156220A1

NUT

- special

1шт.

25

160603A1

SCREW

- set

1шт.

26

155977A1

BALL

- steel

1шт.

27

164190A1

RING

- cushion

1шт.

28

160555A1

SEAL

- cushion

1шт.

29

160556A1

STOP

- cushion

2шт.

30

160557A1

RING, SNAP

RING - snap

1шт.

31

155409A1

BUSHING

- mounting pin, cylinder end

1шт.

32

155144A1

BACK-UP RING

WIPER - pin, cylinder end

2шт.

33

155409A1

BUSHING

- mounting pin, rod end

1шт.

34

155144A1

BACK-UP RING

WIPER - pin, rod end

2шт.

35

153630A1

LUBE NIPPLE

FITTING - grease, straight

1шт.

36

155530A1

TUBE

ELBOW - 90 degree, cylinder end

1шт.

37

160301A1

BOLT

- special

4шт.

38

154543A1

O-RING

- Elbow

1шт.

39

160541A1

TUBE

TUBE ASSEMBLY - hydraulic, rod end, Includes: Ref. 40 and 41

1шт.

40

152924A1

PLUG

- tube assembly sealing

1шт.

41

154503A1

O-RING

- port plug

1шт.

42

160301A1

BOLT

- special

4шт.

43

154543A1

O-RING

- Tube assembly

1шт.

44

160337A1

MOUNTING CLIP

CLAMP - band

1шт.

45

160339A1

MOUNTING CLIP

CLAMP - band

1шт.

46

158131A1

BOLT,High Strength, M10 x 1.5 x 35mm, Cl 10.9

BOLT - hex, special

2шт.

47

156227A1

WASHER

- lock, special

2шт.

48

155717A1

COLLAR

CLAMP - tube, special

1шт.

49

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

- hex, 12 - 1.75 x 50 mm, class 10.9

1шт.

50

112312A1

LOCK WASHER

- lock, 12 mm

1шт.

160579A1

SEAL KIT

KIT - seal replacement, contains Ref. 6 -14, 17, 19 - 23, and 28, in the quantities specified

1шт.

160580A1

KIT

- gland replacement, contains Ref. 3 - 5, in the quantities specified

1шт.

160585A1

JACK BODY

KIT - tube replacement, contains Ref. 2 and 31, in the quantities specified

1шт.

160586A1

PISTON ROD

KIT - rod replacement, contains Ref. 1 and 33, in the quantities specified

1шт.
