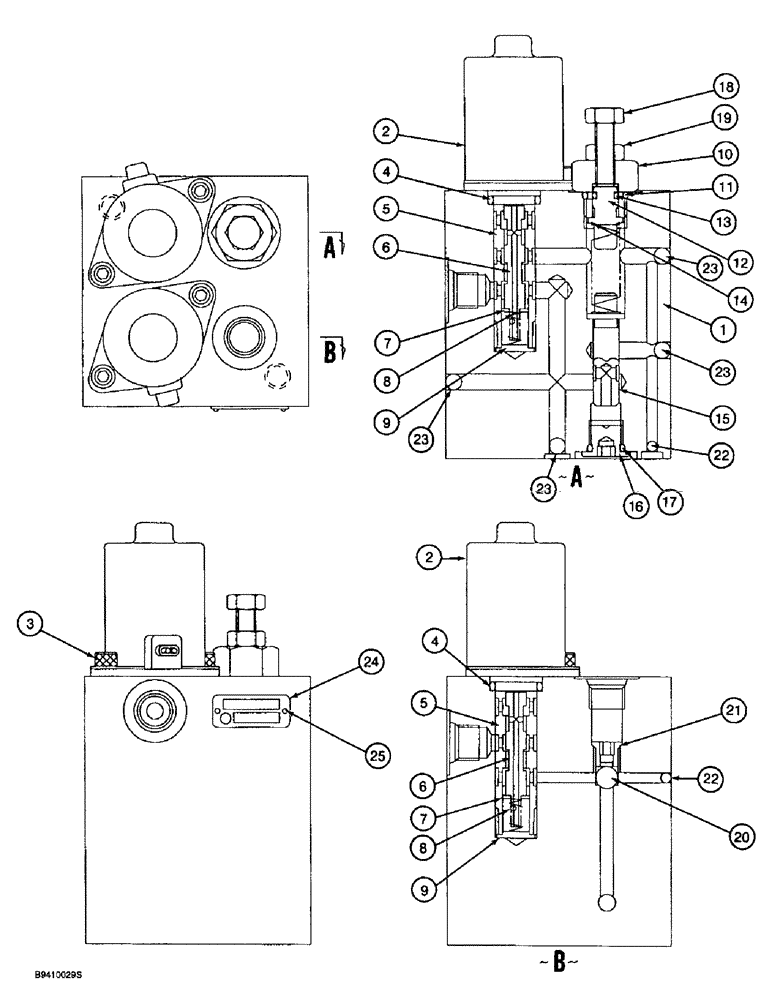

Запчасти Case 9030B (8-162) - SWING BRAKE RELEASE VALVE (08) - HYDRAULICS

159242A1

VALVE

ASSEMBLY - swing brake release, Includes: Ref. 1 - 25

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

2

160319A1

SOLENOID

- valve

2шт.

3

160298A1

BOLT,Hex Skt

BOLT - hex socket head, special

4шт.

4

154482A1

O-RING

- solenoid

2шт.

5

NSS

NOT SOLD SEPARAT

SLEEVE - valve

2шт.

Part of valve repair KIT, P/N 160135A1

1шт.

6

NSS

NOT SOLD SEPARAT

SPOOL - valve

2шт.

Part of valve repair KIT, P/N 160135A1

1шт.

7

NSS

NOT SOLD SEPARAT

SEAT - spring

2шт.

Part of valve repair KIT, P/N 160135A1

1шт.

8

NSS

NOT SOLD SEPARAT

SPRING - compression, valve

2шт.

Part of valve repair KIT, P/N 160135A1

1шт.

9

NSS

NOT SOLD SEPARAT

SEAT - spring

2шт.

Part of valve repair KIT, P/N 160135A1

1шт.

10

160318A1

COVER

- valve

1шт.

11

154475A1

O-RING

- cover

1шт.

12

160066A1

PLUG

- spring guide, valve

1шт.

13

154450A1

O-RING

- plug

1шт.

14

160244A1

SPRING

- compression, valve

1шт.

15

160192A1

SPOOL

- valve

1шт.

16

160083A1

PLUG

- port

1шт.

17

154467A1

O-RING,10.8mm ID x 2.4mm Width

- plug

1шт.

19

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10, locking

1шт.

20

160320A1

BALL

- steel

2шт.

21

160245A1

SEAT

- valve

1шт.

22

NSS

NOT SOLD SEPARAT

BALL - steel

2шт.

23

NSS

NOT SOLD SEPARAT

BALL - steel

5шт.

24

NSS

NOT SOLD SEPARAT

PLATE - name

1шт.

25

NSS

NOT SOLD SEPARAT

RIVET - name plate mounting

2шт.

160135A1

GASKET KIT

KIT - repair, valve, Includes one each of: Ref. 5 thru 9

1шт.

18

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 8-1.25 x 25 mm, class 10.9, Adjusting

1шт.
