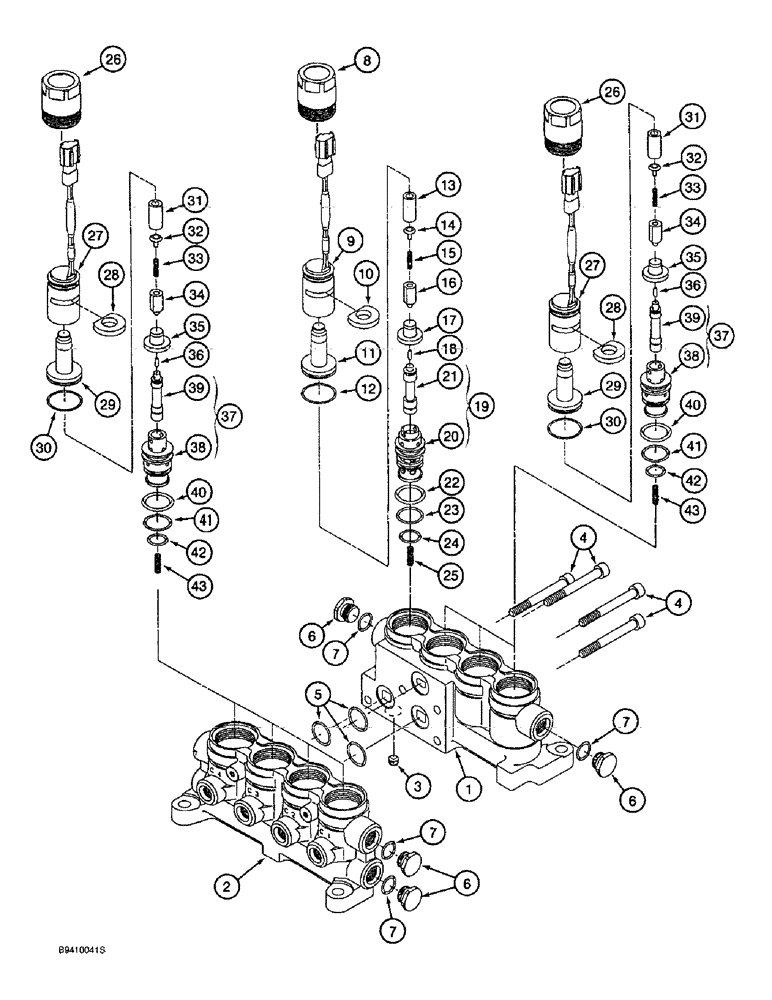

Запчасти Case 9030B (8-154) - PILOT CONTROL SOLENOID VALVE, PRIOR TO P.I.N. DAC03#2001 (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
159713A1
VALVE
ASSEMBLY - solenoid, pilot control, prior to P.I.N. DAC03#2001, Includes: Ref. 1 - 43
1шт.
1
NSS
NOT SOLD SEPARAT
HOUSING - valve, 6-port
1шт.
2
NSS
NOT SOLD SEPARAT
HOUSING - valve, 8-port
1шт.
3
NSS
NOT SOLD SEPARAT
PLUG - pipe
1шт.
4
861-8070
HEX SOC SCREW,M8 x 70mm, Cl 12.9
BOLT - hex socket, 8-1.25 x 70 mm, class 12.9
4шт.
5
154491A1
O-RING
- valve housing
3шт.
6
160069A1
PLUG
- port
4шт.
7
154475A1
O-RING
- plug
4шт.
8
160067A1
SCREW
- special retaining
1шт.
9
160137A1
COIL ASSY.
COIL - solenoid
1шт.
10
160091A1
SPACER
- special
1шт.
11
160302A1
PLUNGER
HOUSING - valve, inner
1шт.
12
159975A1
O-RING
- valve housing
1шт.
13
160068A1
SPACER
PIPE - special
1шт.
14
160246A1
SPRING SEAT
SEAT - spring
1шт.
15
160248A1
SPRING
- valve
1шт.
16
160193A1
PLUNGER
- valve
1шт.
17
160194A1
STOP
- special, valve
1шт.
18
160025A1
ROD
- special, valve
1шт.
19
163168A1
VALVE
ASSEMBLY - body and spool, Includes: Ref. 20 and 21
1шт.
20
NSS
NOT SOLD SEPARAT
BODY - valve
1шт.
21
NSS
NOT SOLD SEPARAT
SPOOL - valve
1шт.
22
154499A1
O-RING
- valve
1шт.
23
154495A1
O-RING
- valve
1шт.
24
154483A1
O-RING
- valve
1шт.
25
160247A1
SPRING
- special, valve
1шт.
26
160067A1
SCREW
- special retaining
7шт.
27
160137A1
COIL ASSY.
COIL - solenoid
7шт.
28
160091A1
SPACER
- special
7шт.
29
160302A1
PLUNGER
HOUSING - valve, inner
7шт.
30
159975A1
O-RING
- valve housing
7шт.
31
160068A1
SPACER
PIPE - special
7шт.
32
160246A1
SPRING SEAT
SEAT - spring
7шт.
33
160248A1
SPRING
- valve
7шт.
34
160193A1
PLUNGER
- valve
7шт.
35
160194A1
STOP
- special, valve
7шт.
36
160024A1
ROD
- special, valve
7шт.
37
163167A1
VALVE
ASSEMBLY - body and spool, Includes: Ref. 38 and 39
7шт.
38
NSS
NOT SOLD SEPARAT
BODY - valve
7шт.
39
NSS
NOT SOLD SEPARAT
SPOOL - valve
7шт.
40
154499A1
O-RING
- valve
7шт.
41
154495A1
O-RING
- valve
7шт.
42
154475A1
O-RING
- valve
7шт.
43
160247A1
SPRING
- special, valve
7шт.
Выбрано товаров: 44
