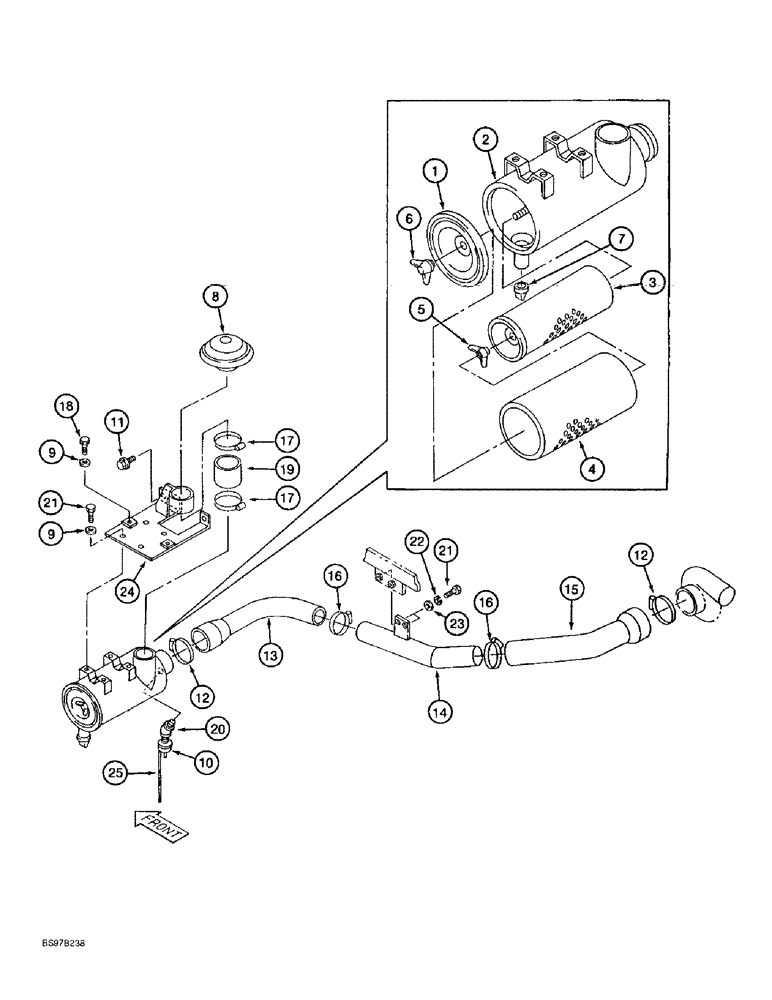

Запчасти Case 9030B (2-08) - AIR CLEANER SYSTEM, P.I.N. DAC03#2001 AND AFTER (02) - ENGINE

165439A1

AIR CLEANER

CLEANER ASSEMBLY - air, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - end, air cleaner

1шт.

2

165482A1

HOUSING ASSY.

HOUSING - air cleaner

1шт.

3

161862A1

AIR FILTER

ELEMENT - air cleaner, inner

1шт.

4

161863A1

AIR FILTER

ELEMENT - air cleaner, outer

1шт.

5

156497A1

WING NUT

NUT - wing, includes gasket, inner element

1шт.

6

162870A1

NUT

NUT - wing, air cleaner housing

1шт.

7

156412A1

VALVE POPPET

CUP - dust

1шт.

8

152389A1

PROTECTION CAP

COVER - air inlet

1шт.

9

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

6шт.

10

150042A1

SENSOR

SWITCH - air restriction indicator

1шт.

11

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

12

150294A1

CLAMP,95mm - 115mm

CLAMP - adjustable, hose at air cleaner housing

2шт.

13

159805A1

AIR HOSE,76.30 mm ID, 101.60 mm ID x 230.00 mm

- at air cleaner 76.30 mm ID, 101.60 mm ID x 230.00 mm

1шт.

14

164694A1

AIR INTAKE TUBE,73.1 mm ID, 76.3 mm OD

TUBE - air inlet

1шт.

15

164695A1

INTAKE AIR HOSE

HOSE - at turbocharger

1шт.

16

152782A1

COLLAR

CLAMP - adjustable, air inlet tube and hose

2шт.

17

150294A1

CLAMP,95mm - 115mm

CLAMP - adjustable

2шт.

18

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 35 mm, class 10.9

2шт.

19

160658A1

INTAKE AIR HOSE

HOSE - air inlet

1шт.

20

161710A1

ELBOW

- 45 degree, special

1шт.

21

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

6шт.

22

892-11010

LOCK WASHER,M10

2шт.

24

160657A1

BRACKET

- mounting, air cleaner

1шт.

25

161711A1

HARNESS

- wiring, air restriction indicator

1шт.

23

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

2шт.
