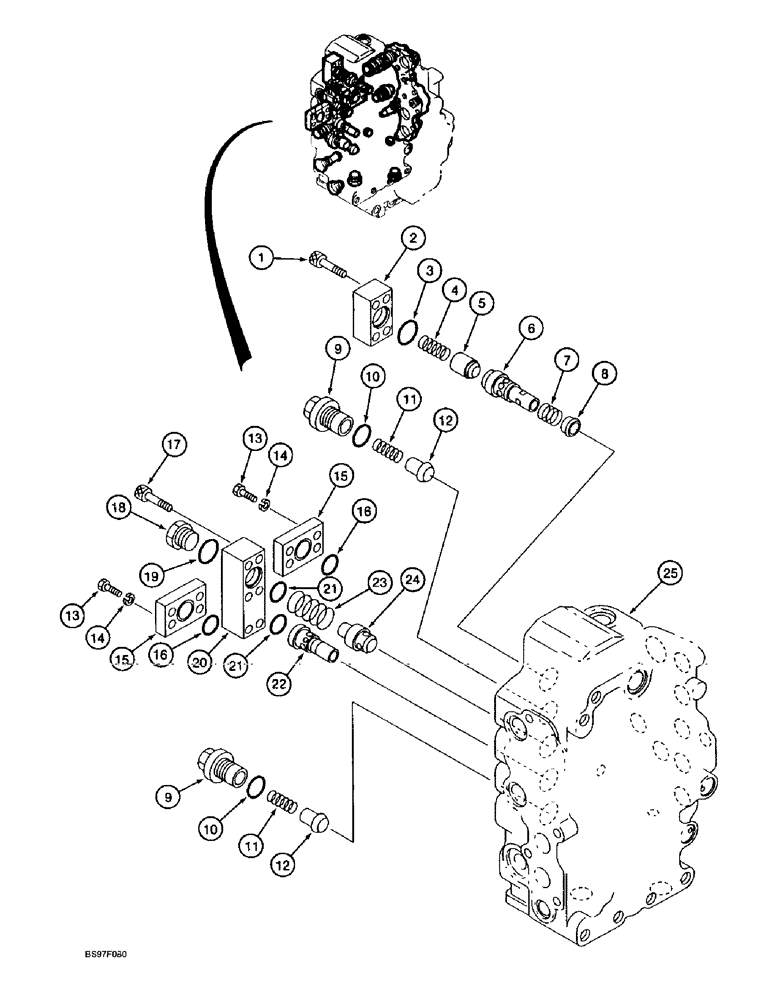

Запчасти Case 9030B (8-148) - HYDRAULIC CONTROL VALVE COMPONENTS, FIVE SPOOL VALVE SECTION, RELIEF AND CHECK VALVES (08) - HYDRAULICS

REF

INSTRUCTION

VALVE ASSEMBLY - control, see Figure 8-136 for correct valve assembly, Includes: Ref. 1 - 25 on this figure and parts on Figures 8-136 - 8-146, 8-150 and 8-152

1шт.

NSS

NOT SOLD SEPARAT

SECTION ASSEMBLY - 5 spool, Includes: Ref. 1 - 25 on this figure and parts on Figures 8-144 and 8-146

1шт.

1

160289A1

BOLT,Hex Skt

BOLT - hex socket

4шт.

2

160317A1

FLANGE

PLATE - cover

1шт.

3

154527A1

O-RING

- cover

1шт.

4

160242A1

SPRING

- compression

1шт.

5

160187A1

VALVE POPPET

VALVE - poppet

1шт.

6

160180A1

SLEEVE

- valve

1шт.

7

160237A1

SPRING

- compression, valve

1шт.

8

163387A1

VALVE POPPET

VALVE - poppet

1шт.

9

160064A1

PLUG

- valve

2шт.

10

155224A1

O-RING

- plug

2шт.

11

160243A1

SPRING

- compression

2шт.

12

160189A1

WELL

PLUNGER - valve

2шт.

13

156209A1

BOLT

BOLT - hex socket

8шт.

14

892-10010

LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk

WASHER, LOCK, M10

8шт.

15

160311A1

PLATE

- cover

2шт.

16

159989A1

O-RING

- plate

2шт.

17

160289A1

BOLT,Hex Skt

BOLT - hex socket

4шт.

18

160054A1

PLUG

- port, 161873A1 and 162839A1 valves

1шт.

18

165836A1

PLUG

- port, 165058A1 and 165060A1 valves

1шт.

19

154503A1

O-RING

- plug

1шт.

20

160316A1

FLANGE

PLATE - cover

1шт.

21

154527A1

O-RING

- cover plate

2шт.

22

160178A1

SLEEVE

- valve

1шт.

23

160241A1

SPRING

- compression

1шт.

24

160186A1

WELL

VALVE - poppet

1шт.

25

NSS

NOT SOLD SEPARAT

HOUSING - valve, five spool side

1шт.
