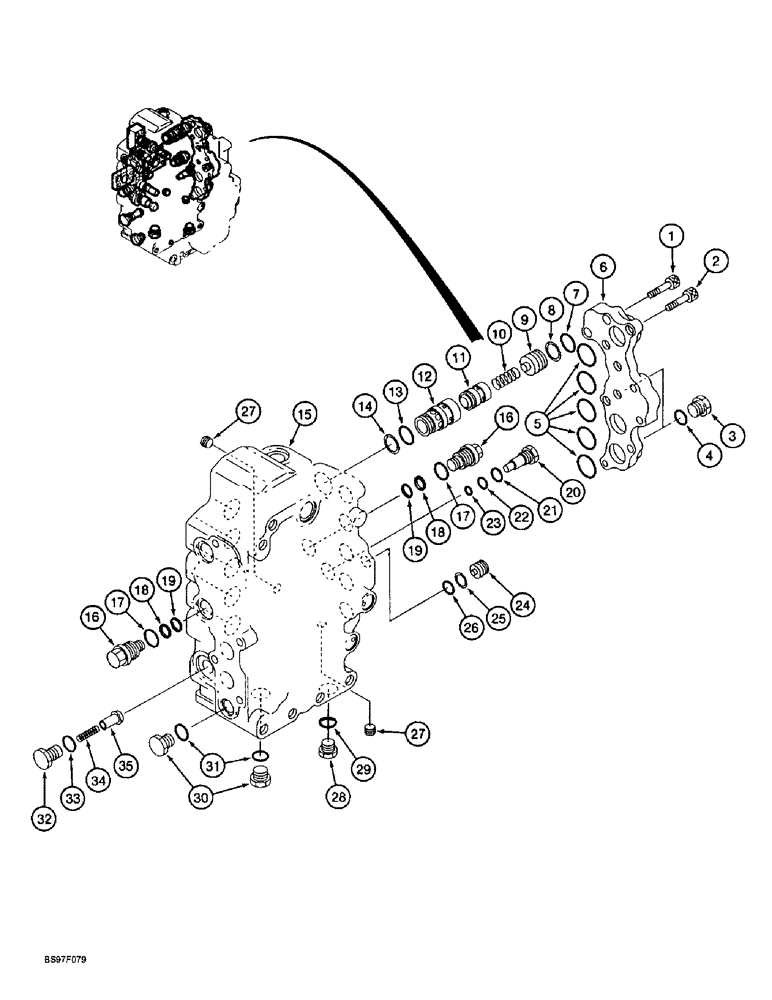

Запчасти Case 9030B (8-146) - HYDRAULIC CONTROL VALVE COMPONENTS, FIVE SPOOL VALVE SECTION, RELIEF AND CHECK VALVES (08) - HYDRAULICS

REF

INSTRUCTION

VALVE ASSEMBLY - control, see Figure 8-136 for correct valve assembly, Includes: Ref. 1 - 35 on this figure and parts on Figures 8-136 - 8-144 and 8-148 - 8-152

1шт.

NSS

NOT SOLD SEPARAT

SECTION ASSEMBLY - 5 spool, Includes: Ref. 1 - 35 on this figure and parts on Figures 8-144 and 8-148

1шт.

1

160288A1

BOLT,Hex Skt

BOLT - hex socket, special

5шт.

2

160287A1

BOLT,Hex Skt

BOLT - hex socket, special

4шт.

3

160056A1

PLUG

- port, cover, 161873A1 and 162839A1 valves, Includes: Ref. 4

2шт.

3

163972A1

PLUG

- port, cover, 165058A1 and 165060A1 valves, Includes: Ref. 4

2шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

- plug

1шт.

5

154547A1

O-RING

-, Serial Range: cover-housing

5шт.

6

160315A1

CAP

COVER - spool end

1шт.

7

153982A1

BACK-UP RING

RING - backup, valve

1шт.

8

154502A1

O-RING

- plug, 161873A1 and 162839A1 valves

1шт.

8

154503A1

O-RING

- plug, 165058A1 and 165060A1 valves

1шт.

9

160062A1

PLUG

- special, sleeve

1шт.

10

160240A1

SPRING

- poppet

1шт.

11

160182A1

VALVE POPPET

POPPET - valve, 161873A1 and 162839A1 valves

1шт.

11

165494A1

VALVE POPPET

SLEEVE - valve, 165058A1 and 165060A1 valves

1шт.

12

160176A1

SLEEVE

- valve, 161873A1 and 162839A1 valves

1шт.

12

165495A1

SLEEVE

POPPET - valve, 165058A1 and 165060A1 valves

1шт.

13

155094A1

O-RING

- plug

1шт.

14

154426A1

BACK-UP RING

RING - backup

1шт.

15

NSS

NOT SOLD SEPARAT

HOUSING - valve, five spool side

1шт.

155438A1

PLUG

- port, special, 161873A1 and 162839A1 valves, Includes: Ref. 16 - 19

2шт.

165839A1

PLUG

ASSEMBLY - port, special, 165058A1 and 165060A1 valves, Includes: Ref. 16 - 19

2шт.

16

NSS

NOT SOLD SEPARAT

PLUG - port, special

1шт.

17

155223A1

O-RING

- plug, outer

1шт.

18

165779A1

RING

- backup

1шт.

19

165778A1

O-RING

- plug, inner

1шт.

160065A1

PLUG

- special, auxiliary spool, Includes: Ref. 20 - 23

1шт.

20

NSS

NOT SOLD SEPARAT

PLUG - special

1шт.

21

154487A1

O-RING

- plug, outer

1шт.

22

155086A1

O-RING

- plug, middle

1шт.

23

154458A1

O-RING

- seal, plug, inner

1шт.

24

160063A1

PLUG

- port

1шт.

25

153967A1

BACK-UP RING

RING - backup

1шт.

26

154482A1

O-RING

- plug

1шт.

27

164178A1

PLUG - port, valve

2шт.

28

160058A1

PLUG

- port, 161873A1 and 162839A1 valves

1шт.

28

163370A1

PLUG

- port, 165058A1 and 165060A1 valves

1шт.

29

154487A1

O-RING

- plug

1шт.

30

157348A1

PLUG

- port

2шт.

31

154475A1

O-RING

- plug

1шт.

32

155464A1

PLUG

- check

1шт.

33

155222A1

O-RING

- plug

1шт.

34

156026A1

SPRING

- compression

1шт.

35

155931A1

VALVE POPPET

VALVE - poppet, main relief isolation check

1шт.
