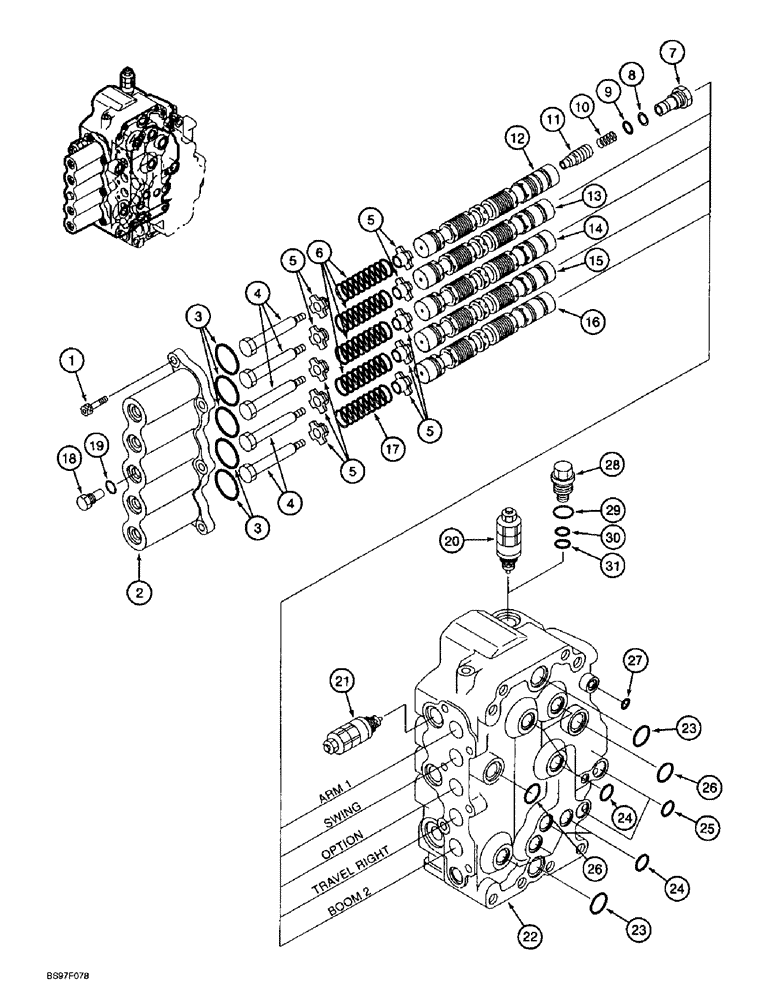

Запчасти Case 9030B (8-144) - HYDRAULIC CONTROL VALVE COMPONENTS, FIVE SPOOL VALVE SECTION, SPOOLS AND COVERS (08) - HYDRAULICS

REF

INSTRUCTION

VALVE ASSEMBLY - control, see Figure 8-136 for correct valve assembly, Includes: Ref. 1 - 31 on this figure and parts on Figures 8-136 - 8-140 and 8-146 - 8-152

1шт.

NSS

NOT SOLD SEPARAT

SECTION ASSEMBLY - 5 spool, Includes: Ref. 1 - 31 on this figure and parts on Figures 8-146 and 8-148

1шт.

1

160287A1

BOLT,Hex Skt

BOLT - hex socket, special

6шт.

2

160314A1

CAP

COVER - spool end

1шт.

3

154567A1

O-RING

- seal

5шт.

4

156243A1

CAP

RETAINER - spring

5шт.

5

156019A1

SPRING SEAT

SEAT - spring, 161873A1 and 162839A1 valves

10шт.

5

165838A1

SPRING SEAT

SEAT - spring, 165058A1 and 165060A1 valves

10шт.

6

160231A1

SPRING

- spool return

4шт.

7

160060A1

PLUG

RETAINER - spring and poppet

1шт.

8

154420A1

RING

- backup

1шт.

9

155087A1

O-RING

- retainer

1шт.

10

160589A1

SPRING

- compression

1шт.

11

160183A1

WELL

POPPET - valve spool

1шт.

12

NSS

NOT SOLD SEPARAT

SPOOL - valve, arm 1

1шт.

13

NSS

NOT SOLD SEPARAT

SPOOL - valve, swing

1шт.

14

NSS

NOT SOLD SEPARAT

SPOOL - valve, option

1шт.

15

NSS

NOT SOLD SEPARAT

SPOOL - valve, travel right

1шт.

16

NSS

NOT SOLD SEPARAT

SPOOL - valve, boom 2

1шт.

17

156057A1

SPRING

- valve

1шт.

18

160057A1

PLUG

- port

1шт.

19

154467A1

O-RING,10.8mm ID x 2.4mm Width

- plug

1шт.

20

155745A1

VALVE PRESSURE RELIE

VALVE - relief, 161873A1 valve, see Figure 8-150

1шт.

20

164457A1

VALVE

ASSEMBLY - relief, 165058A1 valve, see Figure 8-150

1шт.

21

155745A1

VALVE PRESSURE RELIE

VALVE - relief, 161873A1 and 162839A1 valves, see Figure 8-150

1шт.

21

164457A1

VALVE

ASSEMBLY - relief, 165058A1 and 165060A1 valves, see Figure 8-150

1шт.

22

NSS

NOT SOLD SEPARAT

HOUSING - valve, 5 spool side

1шт.

23

154528A1

O-RING

- housing

2шт.

24

159971A1

O-RING

- housing

5шт.

25

154491A1

O-RING

- housing

2шт.

26

159972A1

O-RING

- housing

2шт.

27

155087A1

O-RING

- housing

2шт.

155438A1

PLUG

- 162839A1 valve

1шт.

165839A1

PLUG

ASSEMBLY - port, special, 165060A1 valve, Includes: Ref. 28 - 31

1шт.

28

NSS

NOT SOLD SEPARAT

PLUG - port, special

1шт.

29

155223A1

O-RING

- plug, outer

1шт.

30

165779A1

RING

- backup

1шт.

31

165778A1

O-RING

- plug, inner

1шт.
