(9030B) - CASE CRAWLER EXCAVATOR (11/94-12/00)
/
(08) - HYDRAULICS
/

(8-136) - CONTROL VALVE MOUNTING

Запчасти Case 9030B (8-136) - CONTROL VALVE MOUNTING (08) - HYDRAULICS

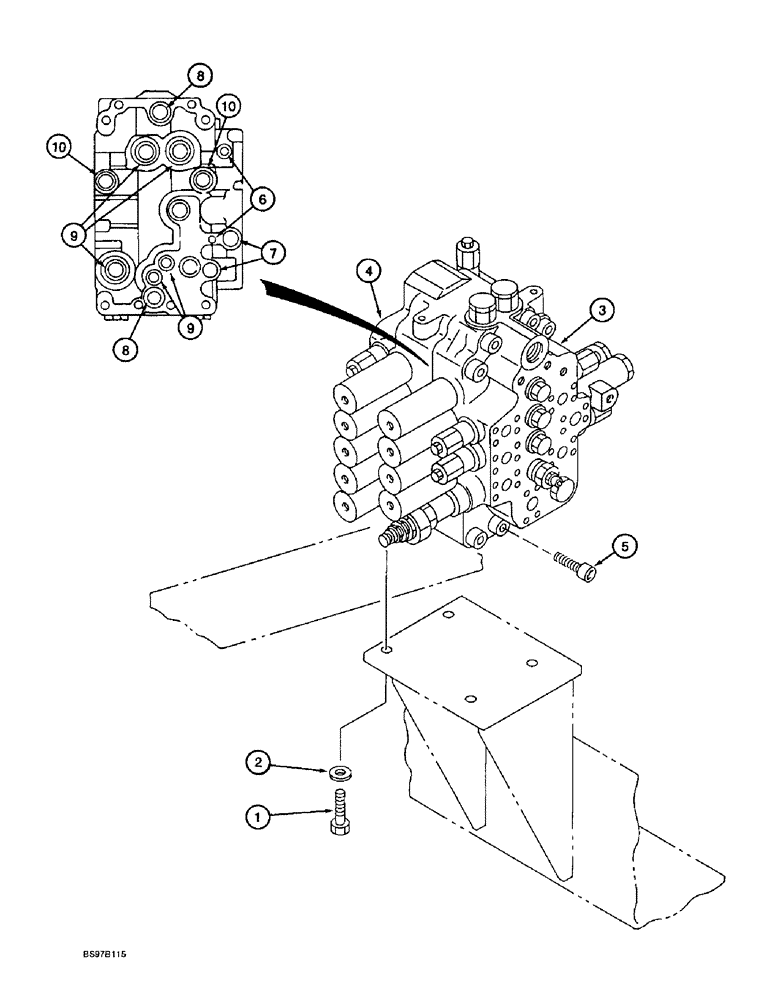

Схема запчастей Case 9030B - (8-136) - CONTROL VALVE MOUNTING (08) - HYDRAULICS
2
6
4
8
10
9
8
9
1
7
3
10
5

№

Артикул

Название

Примечание

Количество

1

627-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

4шт.

2

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special

4шт.

161873A1

VALVE, CONTROL

VALVE ASSEMBLY - control, standard models without load hold, Includes: Ref. 3 - 10 on this figure and parts on Figures 8-138 - 8-152, replaced by 165058A1

1шт.

165058A1

VALVE

ASSEMBLY - control, standard models without load hold, Includes: Ref. 3 - 10 on this figure and parts on Figures 8-138 - 8-152

1шт.

162839A1

VALVE

ASSEMBLY - control, standard models with load hold, Includes: Ref. 3 - 10 on this figure and parts on Figures 8-138 - 8-152, replaced by 165060A1

1шт.

165060A1

VALVE

ASSEMBLY - control, standard models with load hold, Includes: Ref. 3 - 10 on this figure and parts on Figures 8-138 - 8-152

1шт.

164372A1

VALVE

ASSEMBLY - control, Long Reach models without load hold, component information not available at time of printing, replaced by 165059A1, Includes: Ref. 3 - 10

1шт.

165059A1

VALVE

ASSEMBLY - control, Long Reach models without load hold, component information not available at time of printing, Includes: Ref. 3 - 10

1шт.

163261A1

VALVE

ASSEMBLY - control, Long Reach models with load hold, component information not available at time of printing, replaced by 165061A1, Includes: Ref. 3 - 10

1шт.

165061A1

VALVE

ASSEMBLY - control, Long Reach models with load hold, component information not available at time of printing, Includes: Ref. 3 - 10

1шт.

3

NSS

NOT SOLD SEPARAT

SECTION ASSEMBLY - 4 spool, control valve, see Figures 8-138 thru 8-140

1шт.

4

NSS

NOT SOLD SEPARAT

SECTION ASSEMBLY - 5 spool, control valve, see Figures 8-144 thru 8-148

1шт.

5

156169A1

BOLT

BOLT - hex socket

8шт.

6

155087A1

O-RING

- port, between sections

3шт.

7

154491A1

O-RING

- port, between sections

2шт.

8

154528A1

O-RING

- port, between sections

2шт.

9

159971A1

O-RING

- port, between sections

7шт.

10

159972A1

O-RING

- port, between sections

2шт.

Выбрано товаров: 18
