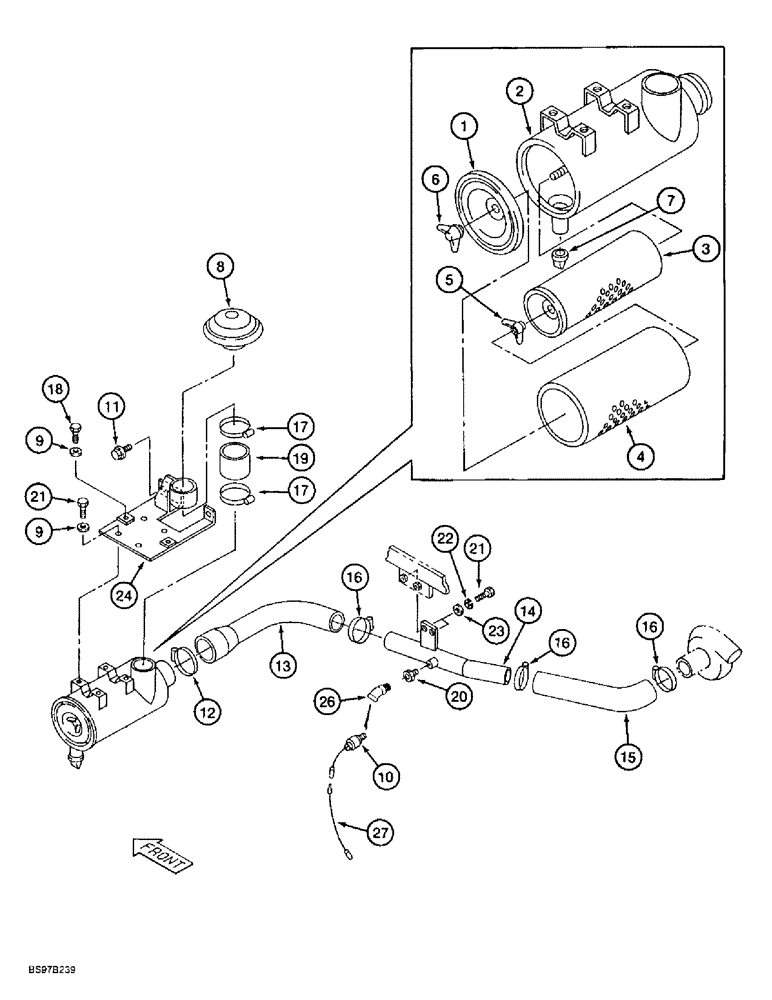

Запчасти Case 9030B (2-06) - AIR CLEANER SYSTEM, PRIOR TO P.I.N. DAC03#2001 (02) - ENGINE
№
Артикул
Название
Примечание
Количество
160656A1
AIR CLEANER
CLEANER ASSEMBLY - air, Includes: Ref. 1 - 8
1шт.
1
NSS
NOT SOLD SEPARAT
COVER - end, air cleaner
1шт.
2
162869A1
AIR CLEANER
HOUSING ASSEMBLY - air cleaner, Includes: Ref. 3 - 7
1шт.
3
161862A1
AIR FILTER
ELEMENT - air cleaner, inner
1шт.
4
161863A1
AIR FILTER
ELEMENT - air cleaner, outer
1шт.
5
156497A1
WING NUT
NUT - wing, includes gasket, inner element
1шт.
6
162870A1
NUT
NUT - wing, air cleaner housing
1шт.
7
156412A1
VALVE POPPET
CUP - dust
1шт.
8
152389A1
PROTECTION CAP
COVER - air inlet
1шт.
9
150409A1
WASHER
- flat, special, 10.5 x 21 x 3.2 mm
6шт.
10
150042A1
SENSOR
SWITCH - air restriction indicator
1шт.
11
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
- special
2шт.
12
150294A1
CLAMP,95mm - 115mm
CLAMP - adjustable, hose at air cleaner housing
1шт.
13
159805A1
AIR HOSE,76.30 mm ID, 101.60 mm ID x 230.00 mm
- at air cleaner 76.30 mm ID, 101.60 mm ID x 230.00 mm
1шт.
14
159804A1
AIR INTAKE TUBE,76.3 mm OD, 341.2, 108.7 mm Length
TUBE - air inlet
1шт.
15
159806A1
AIR HOSE,76.30 mm ID x 336.30 mm
- at turbocharger 76.30 mm ID x 336.30 mm
1шт.
16
152782A1
COLLAR
CLAMP - adjustable, air inlet tube and hose
3шт.
17
150294A1
CLAMP,95mm - 115mm
CLAMP - adjustable
2шт.
18
627-10035
BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd
- hex, full threads, 10 - 1.5 x 35 mm, class 10.9
2шт.
19
160658A1
INTAKE AIR HOSE
HOSE - air inlet
1шт.
20
157908A1
NIPPLE, LUBE
ADAPTER - straight, special, 1/4 x 1/8 inch PT
1шт.
21
BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd
- hex, full threads, 10 - 1.5 x 25 mm, class 10.9
6шт.
22
892-11010
LOCK WASHER,M10
2шт.
24
160657A1
BRACKET
- mounting, air cleaner
1шт.
26
161710A1
ELBOW
- 45 degree, special
1шт.
27
161711A1
HARNESS
- wiring, air restriction indicator
1шт.
23
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
- flat, 11 x 20 x 2 mm
2шт.
Выбрано товаров: 27
