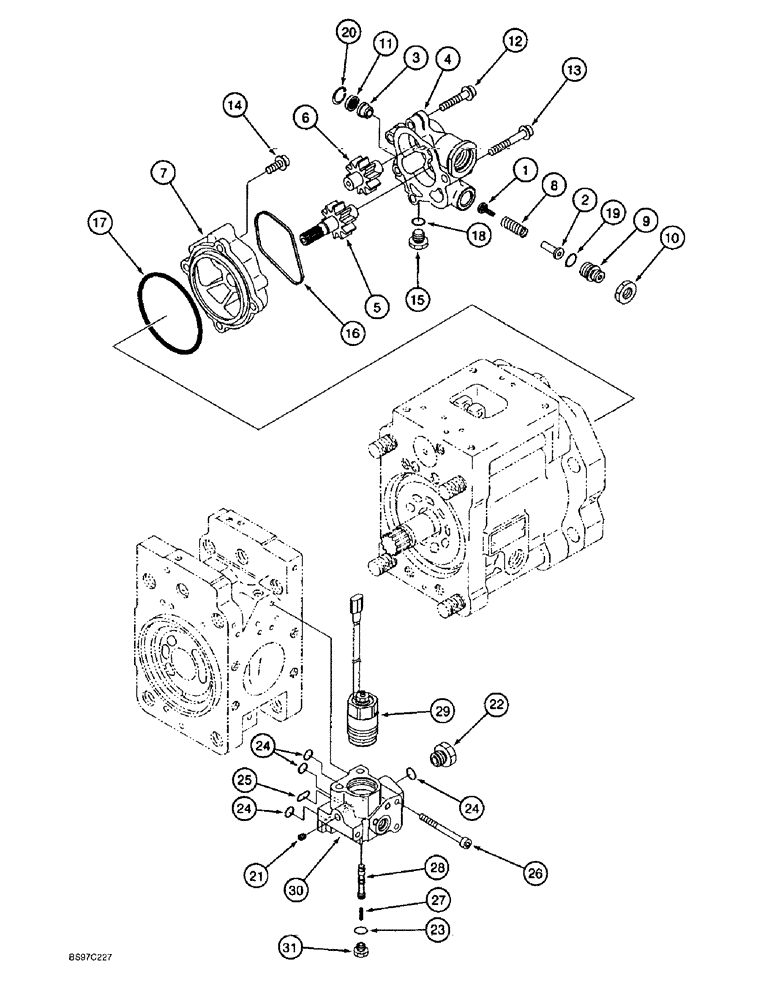

Запчасти Case 9030B (8-124) - PILOT GEAR PUMP & PROPORTIONING VALVE, 159817A1 OR 162219A1 HYDRAULIC PUMPS, 163659A1 GEAR PUMP ASSY (08) - HYDRAULICS

163659A1

PUMP, HYDRAULIC

PUMP ASSEMBLY - pilot gear, Includes: Ref. 1 - 20

1шт.

163660A1

VALVE, PRESSURE RELI

VALVE - relief, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

POPPET - valve

1шт.

2

NSS

NOT SOLD SEPARAT

SEAT - spring

1шт.

NSS

NOT SOLD SEPARAT

PUMP - pilot gear, Includes: Ref. 3 - 7

1шт.

3

NSS

NOT SOLD SEPARAT

SEAT - valve

1шт.

4

NSS

NOT SOLD SEPARAT

CASE - gear

1шт.

5

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

6

NSS

NOT SOLD SEPARAT

GEAR - driven

1шт.

7

NSS

NOT SOLD SEPARAT

CASE - front

1шт.

8

160593A1

SPRING

- valve

1шт.

9

160568A1

ADJUSTMENT SCREW

- set

1шт.

10

163662A1

LOCK NUT

NUT - locking

1шт.

11

163663A1

FILTER

- oil

1шт.

12

163664A1

FLANGE BOLT,Hex Skt, M8 x 50mm

BOLT - hex socket, special

2шт.

13

163665A1

FLANGE BOLT,Hex Skt, M8 x 60mm

BOLT - hex socket, special

2шт.

14

163666A1

FLANGE BOLT

BOLT - hex socket, special

4шт.

15

155496A1

PLUG

- port

1шт.

16

163667A1

SEALING RING

RING - quad

1шт.

17

154713A1

O-RING

- flange cover

1шт.

18

154467A1

O-RING,10.8mm ID x 2.4mm Width

- plug

1шт.

19

154483A1

O-RING

- valve

1шт.

20

163668A1

RING, LOCKING

RING - locking

1шт.

163523A1

VALVE

ASSEMBLY - proportioning, 162219A1 hydraulic pump, Includes: Ref. 21 - 31

1шт.

21

156972A1

PLUG

- port

6шт.

22

155496A1

PLUG

- port

1шт.

23

154455A1

O-RING

- plug

1шт.

24

154467A1

O-RING,10.8mm ID x 2.4mm Width

- port

4шт.

25

154475A1

O-RING

- port

1шт.

26

862-6065

HEX SOC SCREW,M6 x 65mm, Cl 12.9

BOLT - hex socket, 6-1.0 x 65 mm, class 12.9

3шт.

27

NSS

NOT SOLD SEPARAT

SPRING - spool return

1шт.

28

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

29

NSS

NOT SOLD SEPARAT

SOLENOID - valve

1шт.

30

NSS

NOT SOLD SEPARAT

HOUSING - proportioning valve

1шт.

31

NSS

NOT SOLD SEPARAT

PLUG - special, spool end cover

1шт.
