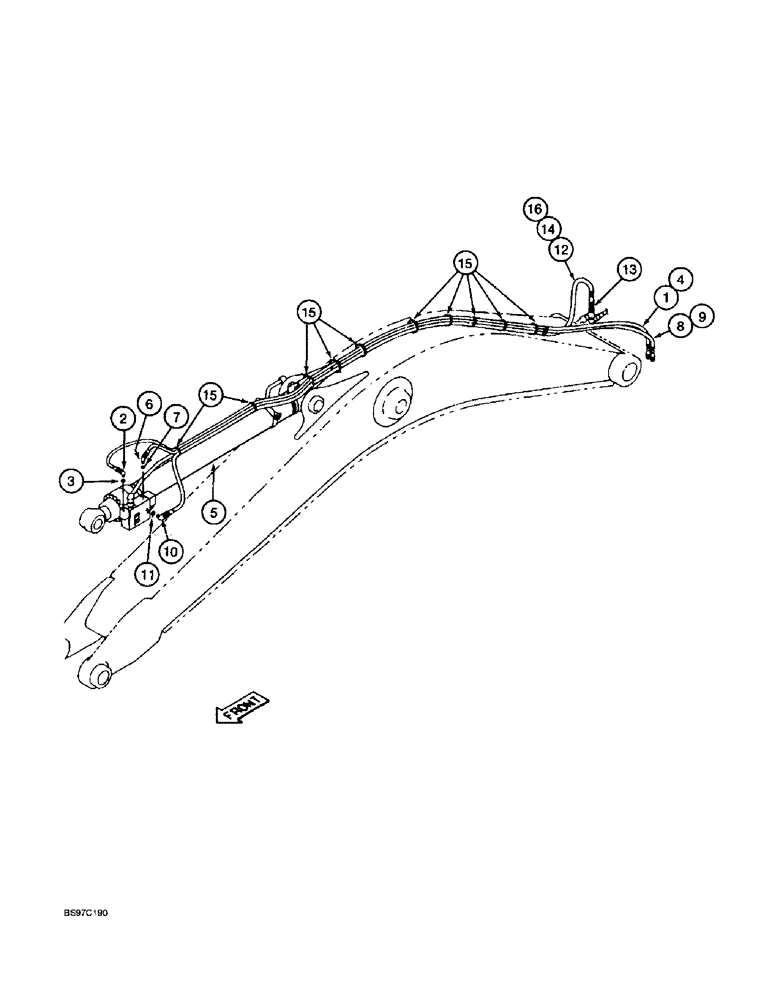

Запчасти Case 9030B (8-112) - ARM AND BOOM HOLDING OPTION, ARM COMPONENTS, STANDARD MODELS WITHOUT LONG REACH (08) - HYDRAULICS

1

162798A1

HOSE,6500.00 mm

arm cylinder release signal line (from fitting in free end of locking hose bracket to port "P" of the arm cylinder lock valve) 6500.00 mm

1шт.

2

159367A1

ELBOW

- 90 degree, special, Includes: Ref. 3

1шт.

3

154475A1

O-RING

- elbow

1шт.

4

150773A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 800 mm (31-1/2 inch) long

1шт.

5

REF

INSTRUCTION

CYLINDER ASSEMBLY - arm, see Figures 8-176 and 8-178 for correct cylinder and components

1шт.

6

159367A1

ELBOW

- 90 degree, special, Includes: Ref. 7

2шт.

7

154475A1

O-RING

- elbow

2шт.

8

162798A1

HOSE,6500.00 mm

arm cylinder release signal return line (from port "T" of the arm cylinder lock valve to the fitting in the mounting end of the locking hose bracket) 6500.00 mm

2шт.

9

150773A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 800 mm (31-1/2 inch) long

2шт.

10

159370A1

ELBOW

- 90 degree, special, Includes: Ref. 11

1шт.

11

154487A1

O-RING

- elbow

2шт.

12

162801A1

HYDRAULIC HOSE,12.70 mm ID x 6500.00 mm

(From arm cylinder lock valve to tee in center of arm and boom return line) 12.70 mm ID x 6500.00 mm

1шт.

13

150073A1

ADAPTER

- straight

1шт.

14

158061A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 800 mm (31-1/2 inch) long

1шт.

15

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

10шт.

16

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long

16шт.
