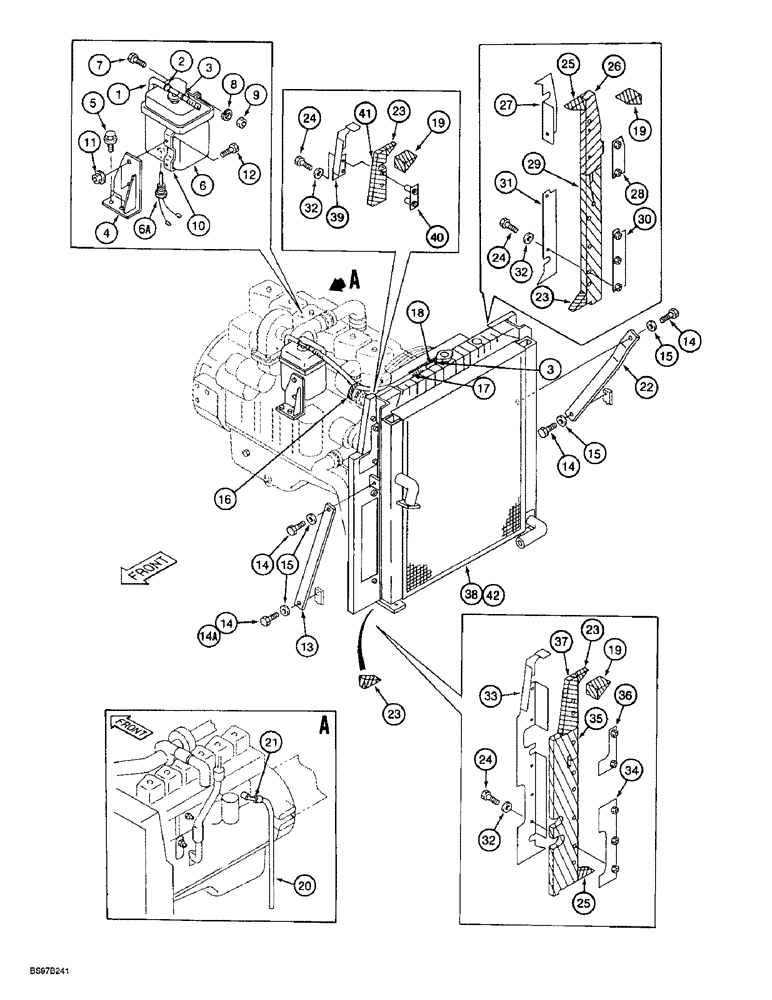

Запчасти Case 9030B (2-04) - RADIATOR SUPPORTS AND COOLANT OVERFLOW RESERVOIR (02) - ENGINE

1

150627A1

HOSE

TUBE - overflow, reservoir

1шт.

2

153040A1

COLLAR

CLAMP - wire-type, reservoir overflow hose

1шт.

3

153042A1

CLAMP

- adjustable, radiator overflow hose

2шт.

4

159788A1

BRACKET

- overflow reservoir

1шт.

5

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special, Serial Range: bracket-frame

2шт.

160626A1

RESERVOIR, COOLANT E

RESERVOIR ASSEMBLY - radiator overflow, Includes: Ref. 6 and 6A

1шт.

6

NSS

NOT SOLD SEPARAT

RESERVOIR - coolant recovery

1шт.

6a

161740A1

SWITCH

- sender, coolant level

1шт.

7

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8-1.25 x 20 mm, class 10.9

1шт.

8

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

9

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

1шт.

10

150465A1

HOLDER

STRAP - mounting, reservoir

1шт.

11

150472A1

FLANGE NUT

- hex flange, special, 8 mm-1.25

2шт.

12

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

2шт.

13

159784A1

STAY

SUPPORT - radiator, left-hand front

1шт.

14

627-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 10.9, Full Thd

3-4шт.

14a

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

, Start Serial: DAC03#2001

1шт.

15

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special

4шт.

16

150498A1

MOUNTING CLIP

STRAP - tie

1шт.

17

150398A1

LOOM

GUARD - corrugated tubing

1шт.

18

150010A1

HOSE

- radiator overflow

1шт.

19

159798A1

SOCKET

INSULATION - acoustic

2шт.

20

121904A1

HOSE

- 1030 mm (40-1/2 inch) long, engine breather

1шт.

21

157916A1

CLAMP

- special, engine breather hose

1шт.

22

159785A1

STAY

SUPPORT - radiator, left-hand rear

1шт.

23

159793A1

SEAL

- cushion

2шт.

24

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

- hex, 10-1.5 x 50 mm, class 10.9

10шт.

25

159792A1

SEAL

- cushion

2шт.

26

159794A1

SEAL

- cushion

1шт.

27

159789A1

BRACKET

- radiator, left-hand rear, upper

1шт.

28

159800A1

RETAINER

- seal

1шт.

29

159795A1

SEAL

- cushion

1шт.

30

159799A1

RETAINER

- seal

1шт.

31

159790A1

BRACKET

- radiator, left-hand rear, lower

1шт.

32

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

10шт.

33

159791A1

BRACKET

- radiator, left-hand front, Serial Range: -DAC03#2001

1шт.

34

159801A1

RETAINER

- seal, Serial Range: -DAC03#2001

1шт.

35

159797A1

SEAL

- cushion, Serial Range: -DAC03#2001

1шт.

36

159802A1

RETAINER

- seal, Serial Range: -DAC03#2001

1шт.

37

159796A1

SEAL

- cushion, Serial Range: -DAC03#2001

1шт.

38

159783A1

RADIATOR

ASSEMBLY - water and hydraulic oil cooling, see Figure 2-12, Serial Range: -DAC03#2001

1шт.

39

164698A1

BRACKET

- radiator, left-hand front, Start Serial: DAC03#2001

1шт.

40

164697A1

RING

RETAINER - seal, Start Serial: DAC03#2001

1шт.

41

164696A1

SEAL

- cushion, Start Serial: DAC03#2001

1шт.

42

164901A1

RADIATOR

ASSEMBLY - water and hydraulic oil cooling, see Figure 2-14, Start Serial: DAC03#2001

1шт.
