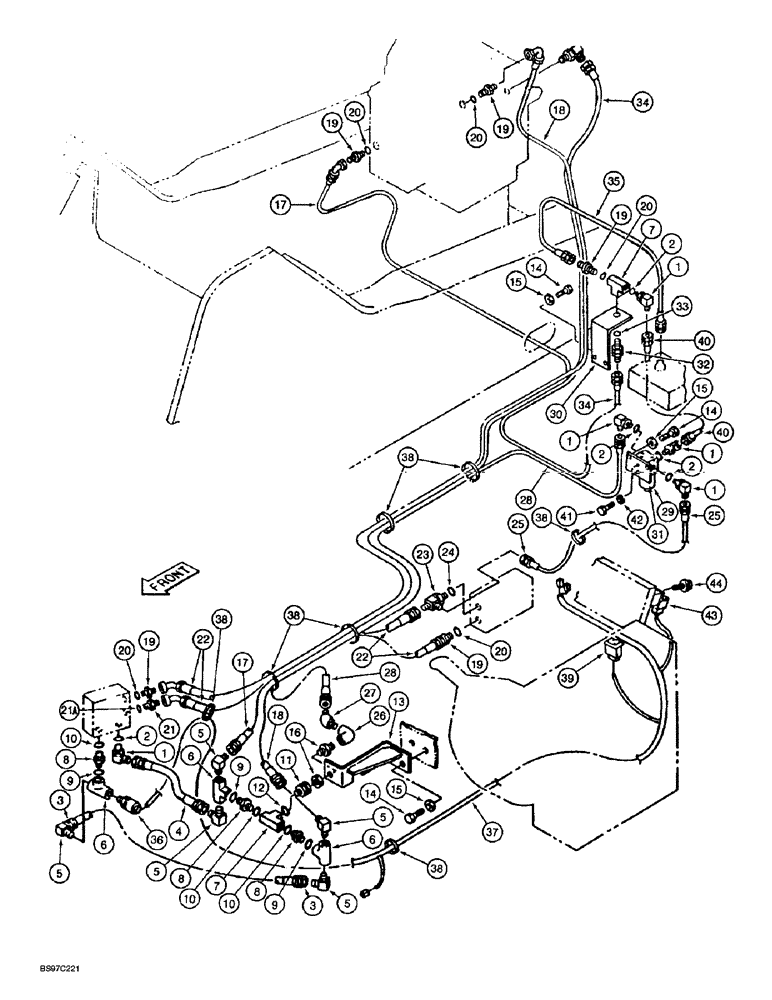

Запчасти Case 9030B (8-094) - DOUBLE ACTION AUXILIARY EQUIP OPTION, PILOT CONTROL LINES, STD MODELS PIN DAC0301369 AND AFTER (08) - HYDRAULICS

1

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 2

5шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

3

151872A1

HOSE ASSY.

HOSE - 850 mm (33-1/2 inch) long

1шт.

4

151867A1

HOSE,63.00 mm ID x 600.00 mm

63.00 mm ID x 600.00 mm

1шт.

5

153596A1

ADAPTER

ELBOW - 90 degree

5шт.

6

152135A1

TEE

- special

3шт.

7

KHJ17090

VALVE PRESSURE RELIE

VALVE - shuttle; Replaces 158186A1

2шт.

8

152899A1

HYD CONNECTOR

CONNECTOR - straight, Includes: Ref. 9

3шт.

9

154467A1

O-RING,10.8mm ID x 2.4mm Width

- connector

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

- connector

3шт.

11

162654A1

HYD CONNECTOR

ADAPTER - straight, Includes: Ref. 12

1шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

13

162638A1

BRACKET

- mounting

1шт.

14

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

6шт.

15

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

6шт.

16

162640A1

ADAPTER

- special

1шт.

17

159711A1

HOSE,3250.00 mm

1шт.

18

165344A1

HOSE

- 2950 mm (116-1/8 inch) long

1шт.

19

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 20

5шт.

20

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

21

161841A1

HYD CONNECTOR

ADAPTER - straight, special, Includes: Ref. 21A

1шт.

21a

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

22

159045A1

HOSE ASSY.

HOSE - 1150 mm (45-1/4 inch) long

2шт.

23

159497A1

TEE

- special, Includes: Ref. 24

1шт.

24

154467A1

O-RING,10.8mm ID x 2.4mm Width

- tee

1шт.

25

152514A1

HOSE,63mm ID x 1000mm L

63.00 mm ID x 1000.00 mm

1шт.

26

153600A1

HYDROMETER

ELBOW - 90 degree

1шт.

27

153599A1

ADAPTER

ELBOW - 45 degree

1шт.

28

153483A1

HOSE ASSY.

HOSE - 1450 mm (57 inch) long

1шт.

29

162538A1

VALVE

ASSEMBLY - solenoid

1шт.

30

163361A1

BRACKET

- support, hydraulic line

1шт.

31

162537A1

LARGE PLATE

BRACKET - mounting

1шт.

32

158183A1

ELEC CONNECTOR,Male

ADAPTER - straight, special, Includes: Ref. 33

1шт.

33

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

34

152709A1

HOSE,6.4mm ID x 2100mm L

64.00 mm ID x 2100.00 mm

1шт.

35

153342A1

HOSE ASSY.

HOSE - 900 mm (35-7/16 inch) long

1шт.

36

159599A1

PRESSURE SWITCH

SWITCH - pressure

1шт.

37

162227A1

HARNESS

- solenoid valve to rocker switch and relay

1шт.

38

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long

1шт.

39

162660A1

TOGGLE SWITCH

SWITCH - rocker, Aux Attachment Control Switch - selector, single/double option, electrical components

1шт.

40

165343A1

HYDRAULIC HOSE,6.30 mm ID x 320.00 mm

6.30 mm ID x 320.00 mm

1шт.

41

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 20 mm, class 10.9

2шт.

42

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

43

159919A1

RELAY

- electrical system controller

1шт.

44

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

BOLT - hex, special

1шт.
