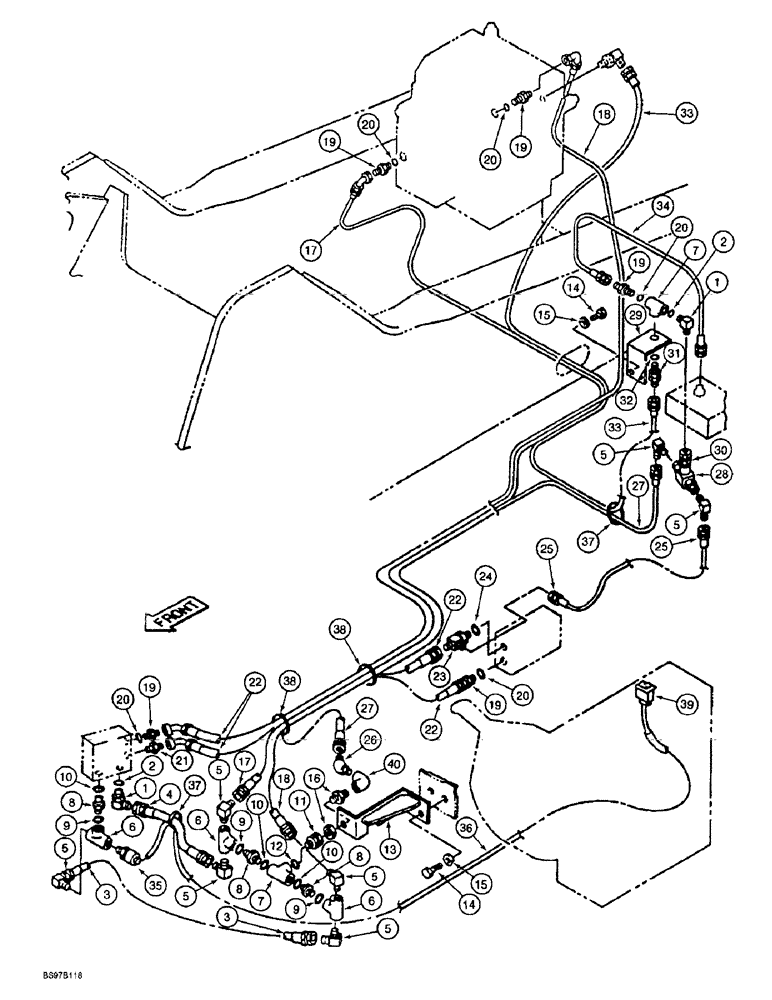

Запчасти Case 9030B (8-088) - DOUBLE ACTION AUXILIARY EQUIPMENT OPTION, PILOT CONTROL LINES, STD MODELS PRIOR TO PIN DAC0301369 (08) - HYDRAULICS

1

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 2

2шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

3

152281A1

HOSE,63.00 mm ID x 800.00 mm

63.00 mm ID x 800 mm

1шт.

4

151867A1

HOSE,63.00 mm ID x 600.00 mm

63.00 mm ID x 600.00 mm

1шт.

5

153596A1

ADAPTER

ELBOW - 90 degree

7шт.

6

152135A1

TEE

- hydraulic

3шт.

7

KHJ17090

VALVE PRESSURE RELIE

VALVE - shuttle; Replaces 158186A1, Includes: Ref. 8

2шт.

8

154467A1

O-RING,10.8mm ID x 2.4mm Width

- valve

3шт.

9

152899A1

HYD CONNECTOR

CONNECTOR - straight, Includes: Ref. 10

3шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

- connector

3шт.

11

162654A1

HYD CONNECTOR

ADAPTER - straight, Includes: Ref. 12

1шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

13

162638A1

BRACKET

- mounting

1шт.

14

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

4шт.

15

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

10шт.

16

162640A1

ADAPTER

- special

1шт.

17

159711A1

HOSE,3250.00 mm

1шт.

18

159714A1

HOSE,3450.00 mm

1шт.

19

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 20

5шт.

20

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

5шт.

21

161841A1

HYD CONNECTOR

ADAPTER - straight, special

1шт.

22

159045A1

HOSE ASSY.

HOSE - 1150 mm (45-1/4 inch) long

2шт.

23

159497A1

TEE

- special, Includes: Ref. 24

1шт.

24

154467A1

O-RING,10.8mm ID x 2.4mm Width

- tee

1шт.

25

152517A1

HOSE,63mm ID x 1100mm L

63.00 mm ID x 1100.00 mm

1шт.

26

153599A1

ADAPTER

ELBOW - 45 degree

1шт.

27

152264A1

HOSE,6.3mm ID x 2200mm L

63.00 mm ID x 2200.00 mm

1шт.

28

162643A1

VALVE

- selector

1шт.

29

159237A1

BRACKET

- mounting

1шт.

30

153601A1

ADAPTER

- straight

1шт.

31

158183A1

ELEC CONNECTOR,Male

ADAPTER - straight, special, Includes: Ref. 32

1шт.

32

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

33

152709A1

HOSE,6.4mm ID x 2100mm L

64.00 mm ID x 2100.00 mm

1шт.

34

153342A1

HOSE ASSY.

HOSE - 900 mm (35-7/16 inch) long

1шт.

35

159599A1

PRESSURE SWITCH

SWITCH - pressure

1шт.

36

162641A1

HARNESS

- wiring

1шт.

37

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long

14шт.

38

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

2шт.

39

162642A1

SWITCH

- special

1шт.

40

153600A1

HYDROMETER

ELBOW - 90 degree

1шт.
