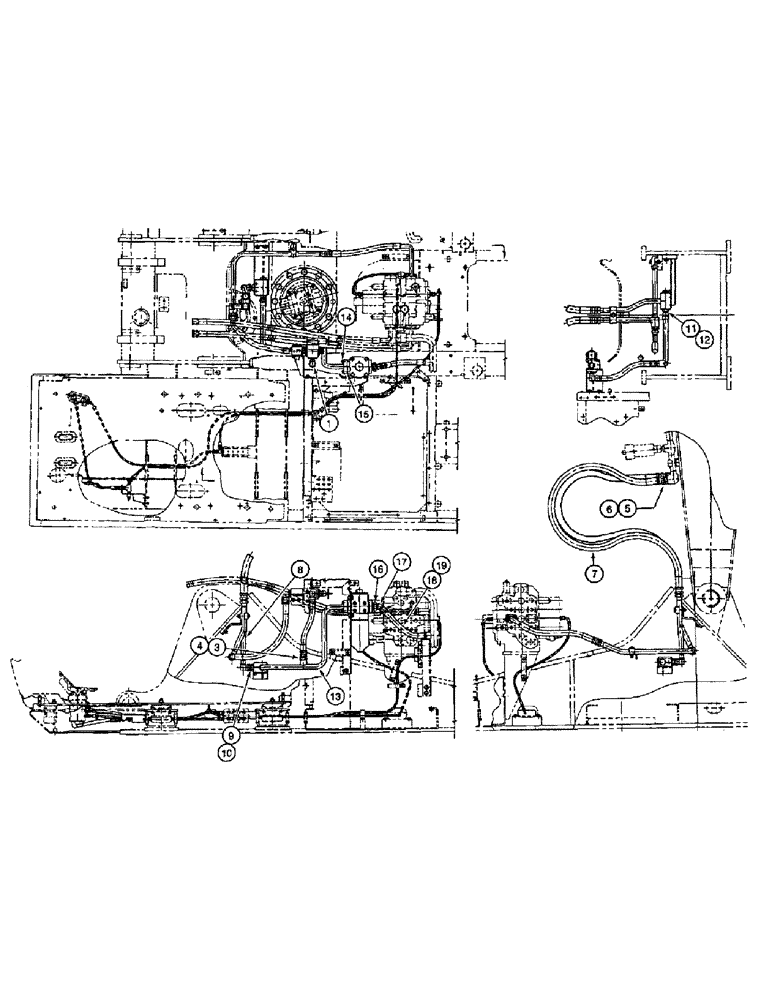

Запчасти Case 9030B (8-084) - SINGLE ACTION AUXILIARY EQUIPMENT OPTION, RELIEF CIRCUIT, STANDARD MODELS PRIOR TO P.I.N. DAC0301369 (08) - HYDRAULICS

1

153622A1

ADAPTER

ELBOW - 90 degree, special

1шт.

2

159747A1

HYDRAULIC HOSE,19.00 mm ID x 400.00 mm

(Relief valve to return tube) 19.00 mm ID x 400.00 mm

1шт.

3

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 4

1шт.

4

154503A1

O-RING

- adapter

1шт.

5

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

ADAPTER - straight, Includes: Ref. 6

1шт.

6

154523A1

O-RING

- adapter

1шт.

7

159731A1

HYDRAULIC HOSE,25.40 mm ID x 2000.00 mm

- - Auxiliary equipment cylinder relief line (From cylinder relief line to tube) 25.40 mm ID x 2000.00 mm

1шт.

8

159721A1

HYD TUBE,20.8 mm ID, 27.2 mm OD

TUBE - auxiliary equipment cylinder relief line (from relief hose to relief manifold)

1шт.

9

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 10

1шт.

10

154503A1

O-RING

- adapter

1шт.

11

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 12

1шт.

12

154503A1

O-RING

- adapter

1шт.

13

159719A1

HYD TUBE,20.8 mm ID, 27 mm OD

TUBE - return, (from relief manifold to filter)

1шт.

14

862-10040

HEX SOC SCREW,M10 x 40mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 40 mm, class 12.9

4шт.

15

154623A1

O-RING

- tube

1шт.

16

157506A1

BUSHING

- special

1шт.

17

152400A1

ADAPTER

ELBOW - 45 degree, special

1шт.

18

162838A1

HYDRAULIC HOSE,19.00 mm ID x 360.00 mm

- Auxiliary return line (Filter to system return line), Includes Ref. 19 19.00 mm ID x 360.00 mm

1шт.

19

154503A1

O-RING

- hose connection

1шт.
