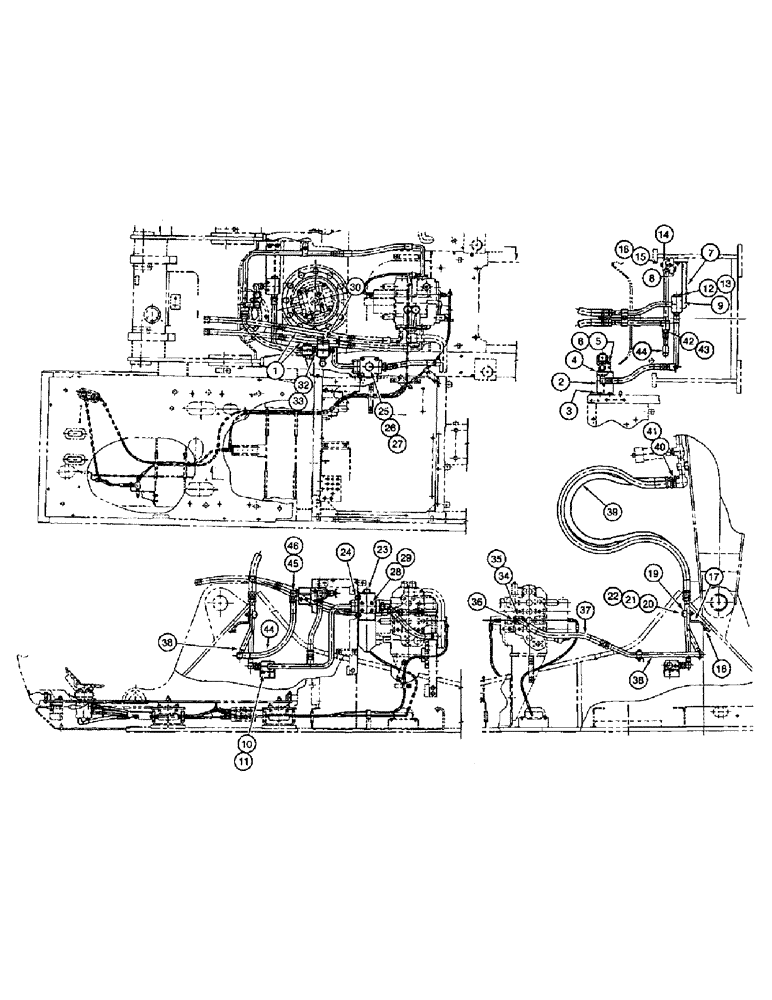

Запчасти Case 9030B (8-082) - SINGLE ACTION AUXILIARY EQUIPMENT OPTION, CYLINDER SUPPLY LINES, STD MODELS PRIOR TO PIN DAC0301369 (08) - HYDRAULICS

1

159498A1

GUARD

- hose

2шт.

2

159723A1

BRACKET

- mounting

1шт.

3

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

4

159727A1

MANIFOLD

- relief

1шт.

5

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

- hex, 12 - 1.75 x 70 mm, class 10.9

2шт.

6

150811A1

WASHER

- flat, special, 12 mm

2шт.

7

159722A1

BRACKET

- mounting

1шт.

8

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

9

159726A1

MANIFOLD

- relief

1шт.

10

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

2шт.

11

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

12

152924A1

PLUG

- port, Includes: Ref. 13

1шт.

13

154503A1

O-RING

- plug

1шт.

14

151486A1

CLAMP BRACKET

CLAMP - tube

1шт.

15

150811A1

WASHER

- flat, special, 12 mm

1шт.

16

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

- hex, 12-1.75 x 60 mm, class 10.9

1шт.

17

162837A1

BRACKET

- mounting

1шт.

18

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

19

152085A1

COLLAR

CLAMP - tube

1шт.

20

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

- hex, 12 - 1.75 x 65 mm, class 10.9

1шт.

21

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm-1.75, class 10

1шт.

22

150811A1

WASHER

- flat, special, 12 mm

1шт.

23

159717A1

BRACKET

- mounting

1шт.

24

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

25

159704A1

FILTER ASSY

FILTER ASSEMBLY - line, Includes: Ref. 26 and 27

1шт.

26

159705A1

HYDRAULIC OIL FILTER

ELEMENT - filter

1шт.

27

159706A1

INDICATOR

GAUGE - special indicator

1шт.

28

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

4шт.

29

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

4шт.

30

159490A1

VALVE

- relief

1шт.

31

151002A1

PLUG

- pipe

1шт.

32

157685A1

HYD CONNECTOR

ADAPTER - straight, special, Includes: Ref. 33

1шт.

33

154503A1

O-RING

- adapter

1шт.

34

153458A1

FLANGE

- split

2шт.

35

161097A1

O-RING

- hose

1шт.

36

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10-1.5 x 30 mm, class 12.9

4шт.

37

159730A1

HYDRAULIC HOSE,19 mm ID x 580 mm L

- - Auxiliary equipment supply line, Control valve end (Control valve port "AL2" to tube assembly) 19.00 mm ID x 580.00 mm

1шт.

38

159720A1

HYD TUBE,20.8 mm ID, 27.2 mm OD

TUBE - auxiliary equipment supply line (hose connection tube)

1шт.

39

159731A1

HYDRAULIC HOSE,25.40 mm ID x 2000.00 mm

- - Auxiliary equipment supply line, Boom end (Tube assembly to boom supply line) 25.40 mm ID x 2000.00 mm

1шт.

40

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

ADAPTER - straight, Includes: Ref. 41

1шт.

41

154523A1

O-RING

- adapter

1шт.

42

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 43

1шт.

43

154503A1

O-RING

- adapter

1шт.

44

159724A1

HYDRAULIC HOSE,19.00 mm ID x 660.00 mm

- Auxiliary equipment supply line, Pressurizing circuit (Tube assembly to relief valve) 19.00 mm ID x 660.00 mm

1шт.

45

159372A1

ELBOW

- 90 degree, special, Includes: Ref. 46

1шт.

46

154503A1

O-RING

- elbow

1шт.
