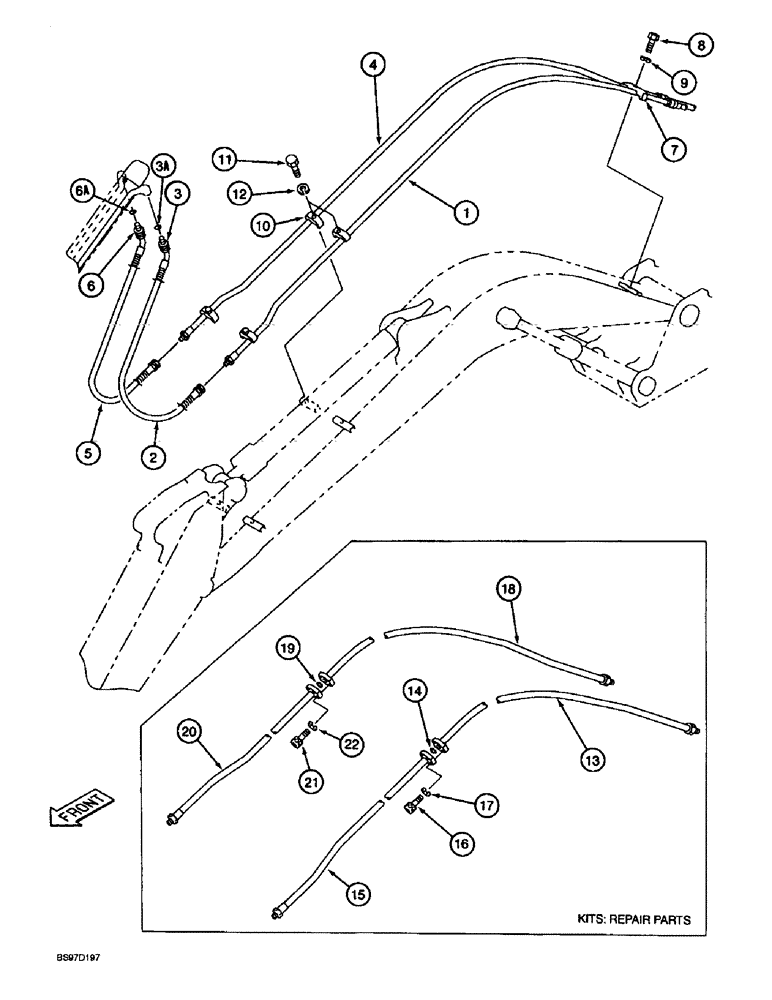

Запчасти Case 9030B (8-074) - BUCKET CYLINDER LINES, 2.4 METER ARM (08) - HYDRAULICS

1

NSS

NOT SOLD SEPARAT

TUBE - bucket-open line, replace with Kit No. 160478A1 shown below

1шт.

2

162252A1

HYDRAULIC HOSE,19.00 mm ID x 1500.00 mm

- Bucket-open line 19.00 mm ID x 1500.00 mm

1шт.

3

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 3A

1шт.

3a

154503A1

O-RING

- adapter

1шт.

4

NSS

NOT SOLD SEPARAT

TUBE - bucket-close line, replace with Kit No. 160477A1 shown below

1шт.

5

162252A1

HYDRAULIC HOSE,19.00 mm ID x 1500.00 mm

- Bucket-close line 19.00 mm ID x 1500.00 mm

1шт.

6

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 6A

1шт.

6a

154503A1

O-RING

- adapter

1шт.

7

159742A1

COLLAR

CLAMP - bucket cylinder lines

1шт.

8

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

1шт.

9

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

1шт.

10

151486A1

CLAMP BRACKET

CLAMP - bucket cylinder lines

4шт.

11

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

- hex, 12-1.75 x 60 mm, class 10.9

4шт.

12

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

160478A1

SET OF PARTS

KIT - bucket-open line, Includes: Ref. 13 - 17

1шт.

Kits 160478A1 and 160477A1 should be ordered to replace Ref. 1 and 4 respectively. Individual kit parts may be ordered for subsequent replacement needs.

1шт.

13

160476A1

TUBE ASSY.

TUBE - replacement, input end, bucket-open line

1шт.

14

154528A1

O-RING

- line seal

1шт.

15

160475A1

TUBE ASSY.,27.2 mm OD, 2363, 30 mm Length

TUBE - replacement, output end, bucket-open line

1шт.

16

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 35 mm, class 12.9

4шт.

17

112309A1

LOCK WASHER

- lock, special

4шт.

160477A1

SET OF PARTS

KIT - bucket-close line, Includes: Ref. 18 - 22

1шт.

Kits 160478A1 and 160477A1 should be ordered to replace Ref. 1 and 4 respectively. Individual kit parts may be ordered for subsequent replacement needs.

1шт.

18

160474A1

TUBE ASSY.,27.2 mm OD, 3295.7, 1326 mm Length

TUBE - replacement, input end, bucket-close line

1шт.

19

154528A1

O-RING

- line seal

1шт.

20

160436A1

TUBE ASSY.,27.2 mm OD, 2363 mm Length

TUBE - replacement, output end, bucket-close line

1шт.

21

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 35 mm, class 12.9

4шт.

22

112309A1

LOCK WASHER

- lock, special

4шт.
