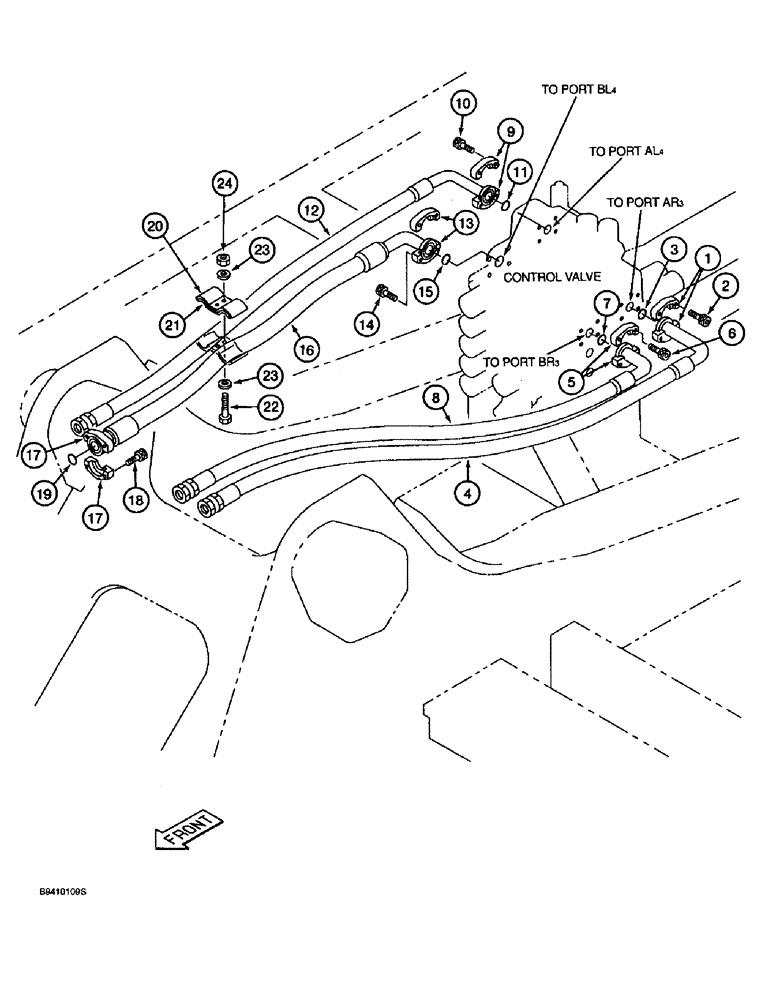

Запчасти Case 9030B (8-066) - ARM AND BUCKET SUPPLY LINES (08) - HYDRAULICS

1

153458A1

FLANGE

- split

2шт.

2

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10-1.5 x 30 mm, class 12.9

4шт.

3

161097A1

O-RING

- hose seal

1шт.

4

159844A1

HYDRAULIC HOSE,19.00 mm ID x 1420.00 mm

- Bucket-open supply line (Connects to control valve port "AR3") 19.00 mm ID x 1420.00 mm

1шт.

5

153458A1

FLANGE

- split

2шт.

6

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10-1.5 x 30 mm, class 12.9

4шт.

7

161097A1

O-RING

- hose seal

1шт.

8

159843A1

HYDRAULIC HOSE,19.00 mm ID x 1280.00 mm

- Bucket-close supply line (Connects to control valve port "BR3") 19.00 mm ID x 1280.00 mm

1шт.

9

153458A1

FLANGE

- split

2шт.

10

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10-1.5 x 30 mm, class 12.9

4шт.

11

161097A1

O-RING

- hose seal

1шт.

12

159844A1

HYDRAULIC HOSE,19.00 mm ID x 1420.00 mm

- Arm-out supply line (Connects to control valve port "AL4") 19.00 mm ID x 1420.00 mm

1шт.

13

153459A1

FLANGE

- split

2шт.

22

827-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

- hex, 8 - 1.25 x 35 mm, class 10.9

2шт.

14

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10-1.5 x 30 mm, class 12.9

4шт.

15

162246A1

O-RING

- hose seal

1шт.

16

160438A1

HYDRAULIC HOSE,25.40 mm ID x 1300.00 mm

- Arm-in supply line (Connects to control valve port "BL4") 25.40 mm ID x 1300.00 mm

1шт.

17

153459A1

FLANGE

- split

2шт.

18

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 35 mm, class 12.9

4шт.

19

162246A1

O-RING

- tube assembly seal

1шт.

20

161677A1

CLAMP

- hose

2шт.

21

161678A1

HALF-FLANGE

CUSHION - rubber

2шт.

23

153081A1

WASHER

- flat, special

4шт.

24

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

2шт.
