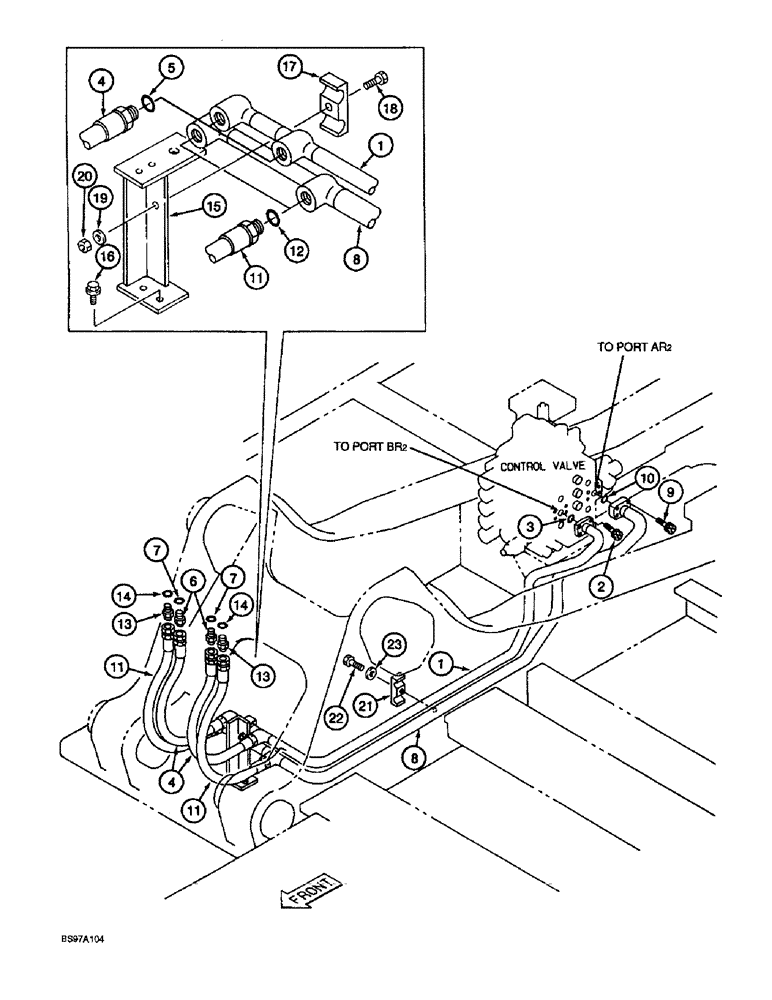

Запчасти Case 9030B (8-064) - BOOM CYLINDER LINES (08) - HYDRAULICS

1

159199A1

TUBE ASSY.

TUBE - boom-down (connects to control valve port " BR2")

1шт.

2

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10-1.5 x 30 mm, class 12.9

4шт.

3

154528A1

O-RING

- tube

1шт.

4

159203A1

HYDRAULIC HOSE,19.05mm ID x 800mm L

- Boom down lines, Includes Ref. 5 19.00 mm ID x 800.00 mm

2шт.

5

154503A1

O-RING

- hose

2шт.

6

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 7

2шт.

7

154503A1

O-RING

- adapter

2шт.

8

159200A1

TUBE ASSY.

TUBE - boom-up (connects to control valve port "AR2")

1шт.

9

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 35 mm, class 12.9

4шт.

10

154548A1

O-RING

- tube

1шт.

11

159203A1

HYDRAULIC HOSE,19.05mm ID x 800mm L

- Boom up lines, Includes Ref. 12 19.00 mm ID x 800.00 mm

2шт.

12

154503A1

O-RING

- hose

2шт.

13

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 14

2шт.

14

154503A1

O-RING

- adapter

2шт.

15

162987A1

BRACKET

- mounting

1шт.

16

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

17

152085A1

COLLAR

CLAMP - tube

1шт.

18

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

- hex, 12 - 1.75 x 65 mm, class 10.9

1шт.

19

150811A1

WASHER

- flat, special, 12 mm

1шт.

20

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm-1.75, class 10

1шт.

21

153186A1

COLLAR

CLAMP - tube

1шт.

22

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

- hex, 12 - 1.75 x 65 mm, class 10.9

1шт.

23

150811A1

WASHER

- flat, special, 12 mm

1шт.
