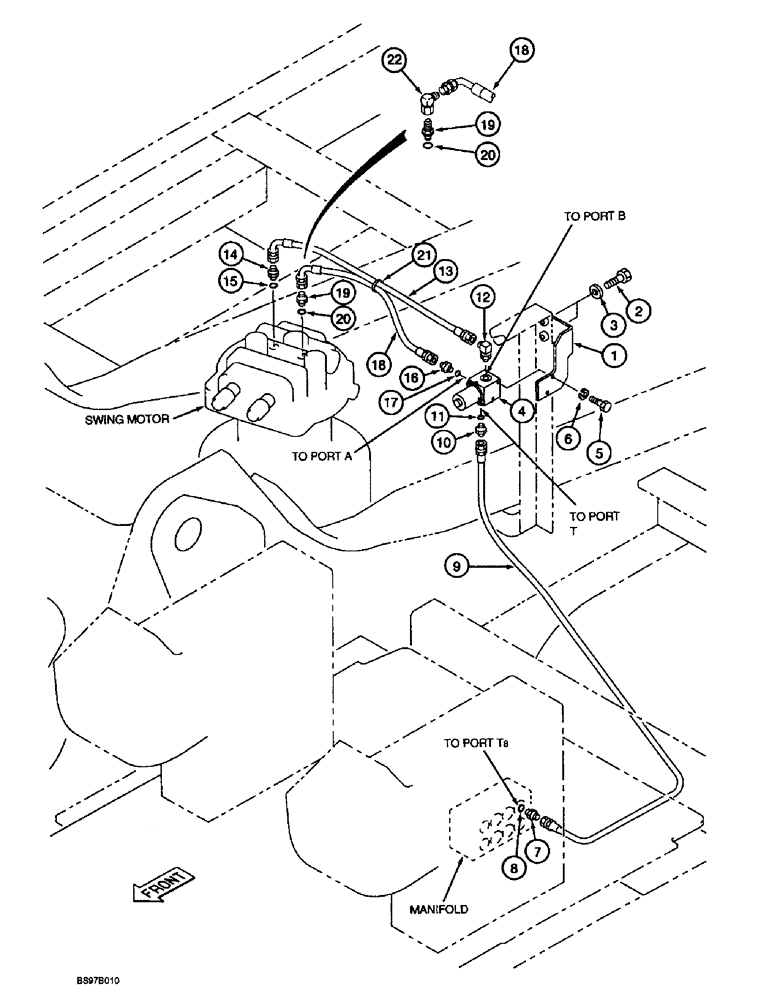

Запчасти Case 9030B (8-060) - FREE SWING CIRCUIT (08) - HYDRAULICS

1

159206A1

BRACKET

- valve mounting

1шт.

2

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

2шт.

3

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

4

159205A1

VALVE

ASSEMBLY - solenoid, see Figure 8-158

1шт.

5

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 16 mm, class 10.9

2шт.

6

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

7

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 8

1шт.

8

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

9

152704A1

HOSE

- 1800 mm (71 inch) long (From manifold port "T8" to solenoid valve port "T")

1шт.

10

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 11

1шт.

11

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

12

158784A1

ELBOW

- 90 degree, special

1шт.

13

159204A1

HYDRAULIC HOSE,6.30 mm ID x 650.00 mm

(From solenoid valve port "B" to swing motor) 6.30 mm ID x 650.00 mm

1шт.

14

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 15

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

16

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 17

1шт.

17

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

18

159207A1

HYDRAULIC HOSE,6.30 mm ID x 550.00 mm

- Metering line (From solenoid valve port "A" to swing motor) 6.30 mm ID x 550.00 mm

1шт.

19

159848A1

ORIFICE

ADAPTER - special, orifice, Includes: Ref. 20

1шт.

20

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

21

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

1шт.

22

163814A1

ELBOW

- 90 degree, special

1шт.
