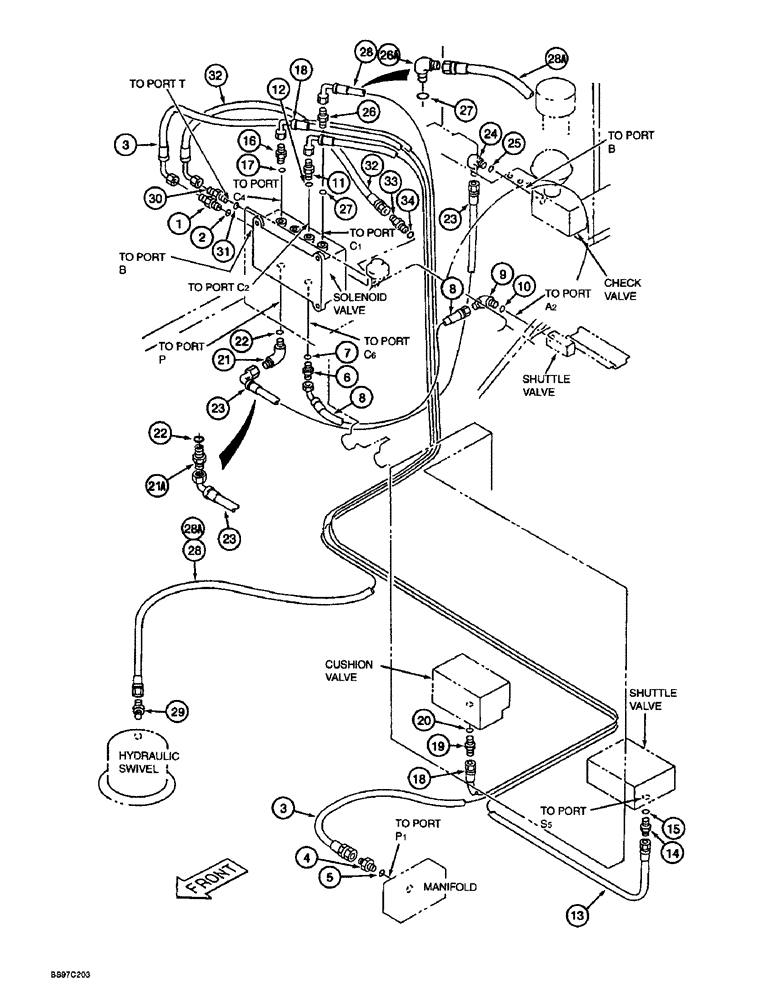

Запчасти Case 9030B (8-056) - SOLENOID VALVE PILOT LINES (08) - HYDRAULICS

1

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 2

1шт.

2

154475A1

O-RING

- adapter

1шт.

3

162486A1

HOSE ASSY.

HOSE - 3400 mm (133-7/8 inch) long (pilot line between solenoid valve port "B" and manifold port "P1")

1шт.

4

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 5

1шт.

5

154475A1

O-RING

- adapter

1шт.

6

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 7

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

8

159349A1

HOSE ASSY.

HOSE - 500 mm (19-11/16 inch) long (pilot line between solenoid valve port "C6" and shuttle valve port "A2")

1шт.

9

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 10

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

11

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 12

1шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

13

159008A1

HOSE ASSY.

HOSE - 3050 mm (120 inch) long (pilot line between solenoid valve port "C2" and shuttle valve port "S5")

1шт.

14

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 15

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

16

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 17

1шт.

17

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

18

159009A1

HOSE ASSY.

HOSE - 2600 mm (102-5/16 inch) long (pilot line between solenoid valve port "C4" and cushion valve port "S")

1шт.

19

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 20

1шт.

20

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

21

157584A1

ELBOW

- 90 degree, special, Start Serial: DAC03#2001

1шт.

21a

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 22, Serial Range: -DAC03#2001

1шт.

22

154475A1

O-RING

- elbow or adapter

1шт.

23

159011A1

HOSE ASSY.

HOSE - 1250 mm (49-3/16 inch) long (pilot line between solenoid valve port "P" and check valve port "B")

1шт.

24

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

- 90 degree, Includes: Ref. 25

1шт.

25

154475A1

O-RING

- elbow

1шт.

26

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Start Serial: DAC03#2001

1шт.

26a

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 27, Serial Range: -DAC03#2001

1шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter or elbow

1шт.

28

165392A1

HYDRAULIC HOSE

- 2350 mm, Pilot Line Between Solenoid Valve Port "C1" and Swivel Port "F", Start Serial: DAC03#2001

1шт.

28a

159007A1

HOSE

- 2300 mm (90-9/16 inch) long, pilot line between solenoid valve port "C1" and swivel port "F", Serial Range: -DAC03#2001

1шт.

29

153599A1

ADAPTER

ELBOW - 45 degree

1шт.

30

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 31

1шт.

31

154475A1

O-RING

- adapter

1шт.

32

159012A1

HOSE ASSY.

HOSE - 580 mm (22-13/16 inch) long (pilot line between solenoid valve port "T" and drain line)

1шт.

33

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER straight

1шт.

34

154475A1

O-RING

- adapter

1шт.
