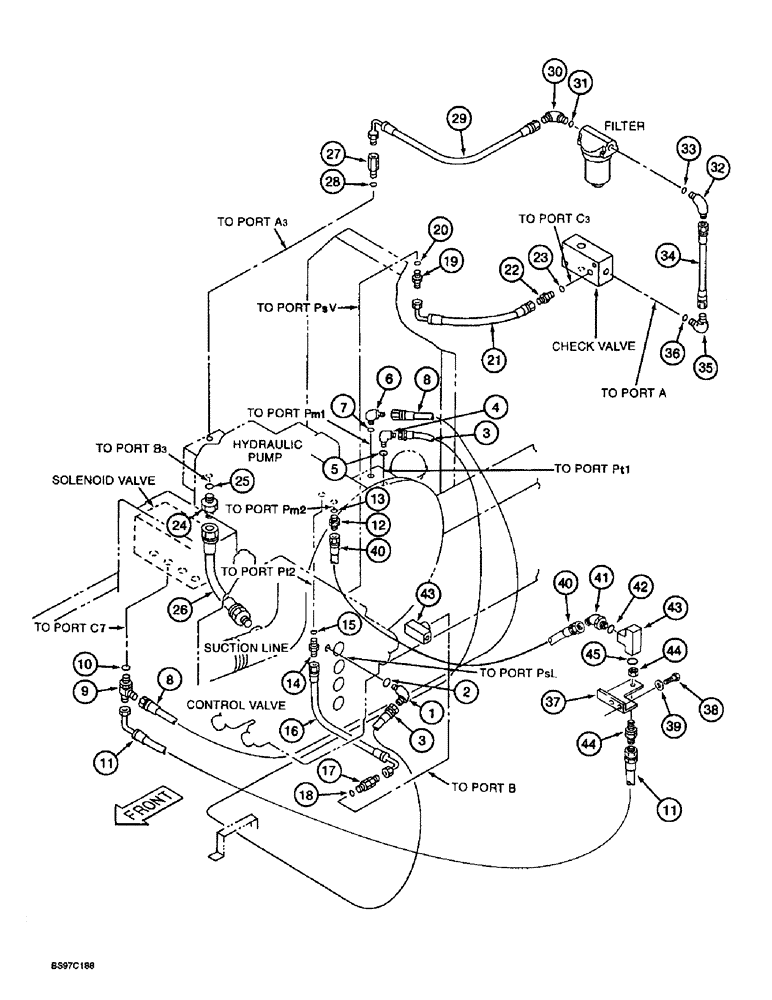

Запчасти Case 9030B (8-052) - HYDRAULIC PUMP AND FILTER PILOT LINES, FOR MODELS WITH LONG REACH (08) - HYDRAULICS

1

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 2

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

3

152299A1

HOSE,63.00 mm ID x 2950.00 mm

(Hydraulic pump port "PsL" to control valve port "Pt1") 63.00 mm ID x 2950.00 mm

1шт.

4

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 5

1шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

6

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 7

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

8

153398A1

HOSE ASSY.

HOSE - 1400 mm (55-1/4 inch) long (hydraulic pump port "Pm1" to tee in control valve port "C7")

1шт.

9

159497A1

TEE

- special (installed in control valve port "C7"), Includes: Ref. 10

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

- tee

1шт.

11

164374A1

HYDRAULIC HOSE

2800 mm, Shuttle Valve to Solenoid Valve

1шт.

12

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 13

1шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

14

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 15

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

16

159349A1

HOSE ASSY.

HOSE - 500 mm (19-11/16 inch) long (hydraulic pump port "Pt2" to shuttle valve)

1шт.

17

158183A1

ELEC CONNECTOR,Male

ADAPTER - straight, special, Includes: Ref. 18

1шт.

18

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

19

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 20

1шт.

20

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

21

159355A1

HOSE ASSY.

HOSE - 350 mm (13-3/4 inch) long (hydraulic pump port "PsV" to check valve port "C3")

1шт.

22

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 23

1шт.

23

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

24

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 25

1шт.

25

154503A1

O-RING

- adapter

1шт.

26

159000A1

HYDRAULIC HOSE

HOSE - 520 mm (20-7/16 inch) long (hydraulic pump port "B3" to suction line)

1шт.

27

159361A1

ADAPTER

- straight, special, Includes: Ref. 28

1шт.

28

154487A1

O-RING

- adapter

1шт.

29

159845A1

HOSE ASSY.

HOSE - 520 mm (20-7/8 inch) long (hydraulic pump port, Serial Range: "A3"-filter)

1шт.

30

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

- 90 degree, Includes: Ref. 31

1шт.

31

154487A1

O-RING

- elbow

1шт.

32

157935A1

ELBOW

- 90 degree, special, 1/2 x 3/8 inch, Includes: Ref. 33

1шт.

33

154487A1

O-RING

- elbow

1шт.

34

159001A1

HOSE

- 300 mm (11-3/16 inch) long (filter to check valve port "A")

1шт.

35

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

- 90 degree, Includes: Ref. 36

1шт.

36

154475A1

O-RING

- elbow

1шт.

37

163362A1

BRACKET

- support, hydraulic line

1шт.

38

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

2шт.

39

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

40

159005A1

HOSE

- 3250 mm (127-15/16 inch) long, hydraulic pump port "Pm2" to shuttle valve

1шт.

41

150933A1

ELBOW

- 45 degree, Includes: Ref. 42

1шт.

42

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

43

KHJ17090

VALVE PRESSURE RELIE

VALVE - shuttle; Replaces 158186A1

2шт.

44

158183A1

ELEC CONNECTOR,Male

ADAPTER - straight, special, Includes: Ref. 45

1шт.

45

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.
