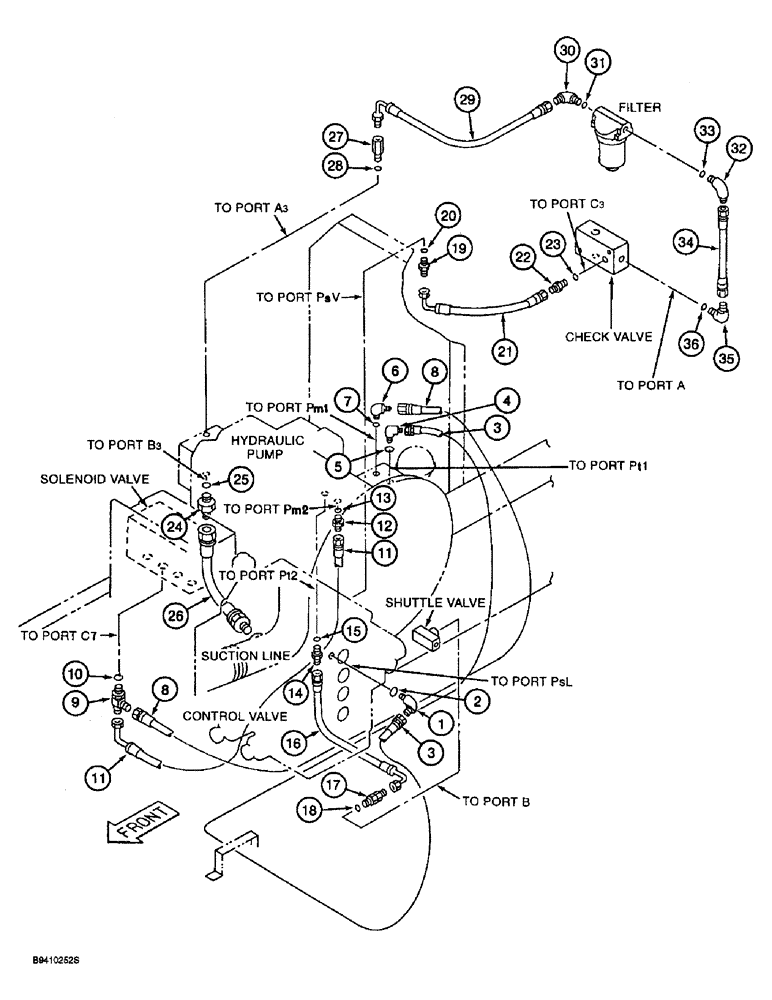

Запчасти Case 9030B (8-048) - HYDRAULIC PUMP AND FILTER PILOT LINES, FOR ALL MODELS EXCEPT THOSE WITH LONG REACH (08) - HYDRAULICS

1

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 2

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

3

152299A1

HOSE,63.00 mm ID x 2950.00 mm

(Hydraulic pump port "PsL" to control valve port "Pt1") 63.00 mm ID x 2950.00 mm

1шт.

4

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 5

1шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

6

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 7

1шт.

See Figure 8-050 for standard models prior to P.I.N. DAC0301004 or Figure 8-052 for long reach models. See Figure 1-2 for explanation of P.I.N. and model variations.

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

See Figure 8-050 for standard models prior to P.I.N. DAC0301004 or Figure 8-052 for long reach models. See Figure 1-2 for explanation of P.I.N. and model variations.

1шт.

8

153398A1

HOSE ASSY.

HOSE - 1400 mm (55-1/4 inch) long (hydraulic pump port "Pm1" to tee in control valve port "C7")

1шт.

See Figure 8-050 for standard models prior to P.I.N. DAC0301004 or Figure 8-052 for long reach models. See Figure 1-2 for explanation of P.I.N. and model variations.

1шт.

9

159497A1

TEE

- special (installed in control valve port "C7" ), Includes: Ref. 10

1шт.

See Figure 8-050 for standard models prior to P.I.N. DAC0301004 or Figure 8-052 for long reach models. See Figure 1-2 for explanation of P.I.N. and model variations.

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

- tee

1шт.

See Figure 8-050 for standard models prior to P.I.N. DAC0301004 or Figure 8-052 for long reach models. See Figure 1-2 for explanation of P.I.N. and model variations.

1шт.

11

164791A1

HOSE ASSY.

HOSE - 1200 mm (47-1/4 inch) long (hydraulic pump port "Pm2" to tee in control valve port "C7")

1шт.

See Figure 8-050 for standard models prior to P.I.N. DAC0301004 or Figure 8-052 for long reach models. See Figure 1-2 for explanation of P.I.N. and model variations.

1шт.

12

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 13

1шт.

See Figure 8-050 for standard models prior to P.I.N. DAC0301004 or Figure 8-052 for long reach models. See Figure 1-2 for explanation of P.I.N. and model variations.

1шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

See Figure 8-050 for standard models prior to P.I.N. DAC0301004 or Figure 8-052 for long reach models. See Figure 1-2 for explanation of P.I.N. and model variations.

1шт.

14

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 15

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

16

159349A1

HOSE ASSY.

HOSE - 500 mm (19-11/16 inch) long (hydraulic pump port "Pt2" to shuttle valve)

1шт.

17

158183A1

ELEC CONNECTOR,Male

ADAPTER - straight, special, Includes: Ref. 18

1шт.

18

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

19

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 20

1шт.

20

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

21

159355A1

HOSE ASSY.

HOSE - 350 mm (13-3/4 inch) long (hydraulic pump port "PsV" to check valve port "C3")

1шт.

22

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 23

1шт.

23

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

24

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 25

1шт.

25

154503A1

O-RING

- adapter

1шт.

26

159000A1

HYDRAULIC HOSE

HOSE - 520 mm (20-7/16 inch) long (hydraulic pump port "B3" to suction line)

1шт.

27

159361A1

ADAPTER

- straight, special, Includes: Ref. 28

1шт.

28

154487A1

O-RING

- adapter

1шт.

29

159845A1

HOSE ASSY.

HOSE - 520 mm (20-7/8 inch) long (hydraulic pump port, Serial Range: "A3"-filter)

1шт.

30

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

- 90 degree, Includes: Ref. 31

1шт.

31

154487A1

O-RING

- elbow

1шт.

32

157935A1

ELBOW

- 90 degree, special, 1/2 x 3/8 inch, Includes: Ref. 33

1шт.

33

154487A1

O-RING

- elbow

1шт.

34

159001A1

HOSE

- 300 mm (11-3/16 inch) long (filter to check valve port "A")

1шт.

35

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

- 90 degree, Includes: Ref. 36

1шт.

36

154475A1

O-RING

- elbow

1шт.
