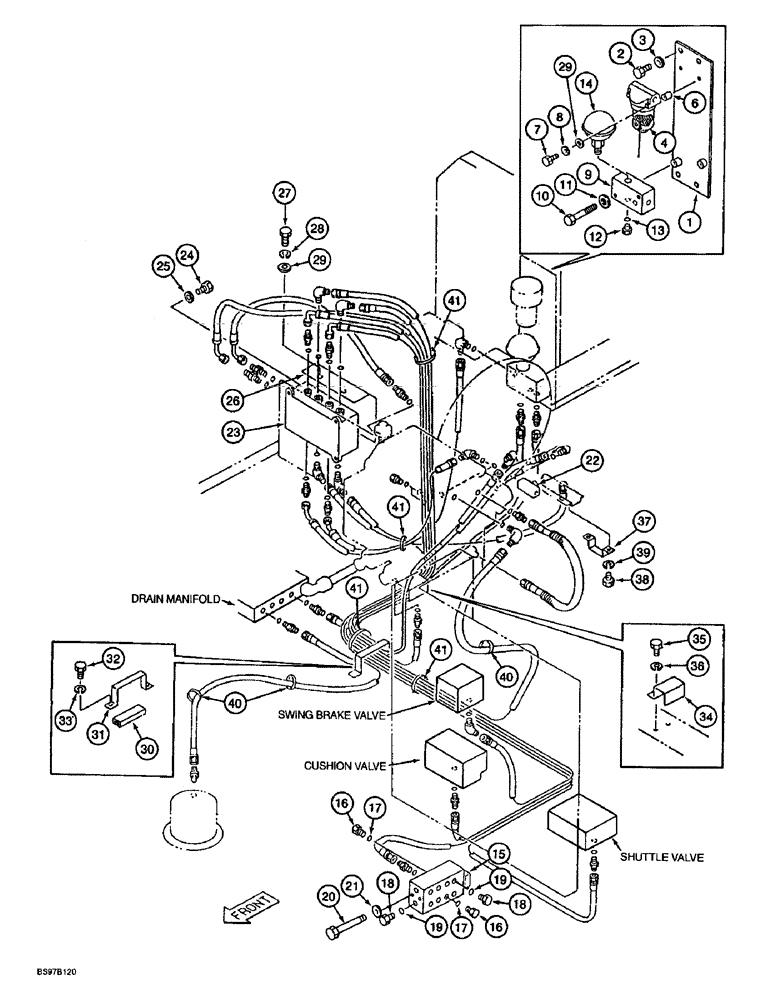

Запчасти Case 9030B (8-044) - PILOT COMPONENT MOUNTING AND HOSE SUPPORTS, PRIOR TO P.I.N. DAC03#2001 (08) - HYDRAULICS

1

159003A1

BRACKET

- flat, P.I.N. DAC0301001 only

1шт.

2

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9, if used

4шт.

3

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm, if used

4шт.

4

159482A1

FILTER

- line

1шт.

5

153233A1

HYDRAULIC OIL FILTER

ELEMENT - filter

1шт.

6

150325A1

SPACER

- tube, 8 ID x 13.8 OD x 10.35 mm long

2шт.

7

827-6080

BOLT,Hex, M6 x 80mm, Cl 10.9

- hex, 6 - 1.0 x 80 mm, class 10.9

2шт.

8

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

9

159483A1

VALVE

- check

1шт.

10

827-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9

- hex, 8 - 1.25 x 65 mm, class 10.9

2шт.

11

153081A1

WASHER

- flat, special

2шт.

12

159002A1

PLUG

- port, Includes: Ref. 13

1шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

- plug

1шт.

14

150894A1

ACCUMULATOR

- hydraulic

1шт.

15

159015A1

MANIFOLD

- pilot control supply and return

1шт.

16

153105A1

PLUG

- port, Includes: Ref. 17

2шт.

17

154467A1

O-RING,10.8mm ID x 2.4mm Width

- plug

2шт.

18

159002A1

PLUG

- port, Includes: Ref. 19

2шт.

19

154467A1

O-RING,10.8mm ID x 2.4mm Width

- plug

2шт.

20

159386A1

BOLT

BOLT - special

2шт.

21

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

22

KHJ17090

VALVE PRESSURE RELIE

VALVE - shuttle; Replaces 158186A1

1шт.

23

159713A1

VALVE

ASSEMBLY - solenoid

1шт.

24

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 35 mm, class 10.9

3шт.

25

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

3шт.

26

159023A1

COVER

- solenoid valve

1шт.

26a

161499A1

GROMMET

CUSHION - solenoid valve cover (used with 159023A1), not shown

1шт.

27

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 12 mm, class 10.9

2шт.

28

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

29

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

- flat, 6.6 x 12 x 1.6 mm

4шт.

30

159028A1

RUBBER BLOCK

CUSHION - support

1шт.

31

159039A1

CLAMP

- support

1шт.

32

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm, class 10.9

2шт.

33

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

34

159027A1

CLAMP

- special, hose

1шт.

35

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm, class 10.9

2шт.

36

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

37

159025A1

CLAMP

- support

1шт.

38

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm, class 10.9

2шт.

39

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

40

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long

4шт.

41

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

5шт.
