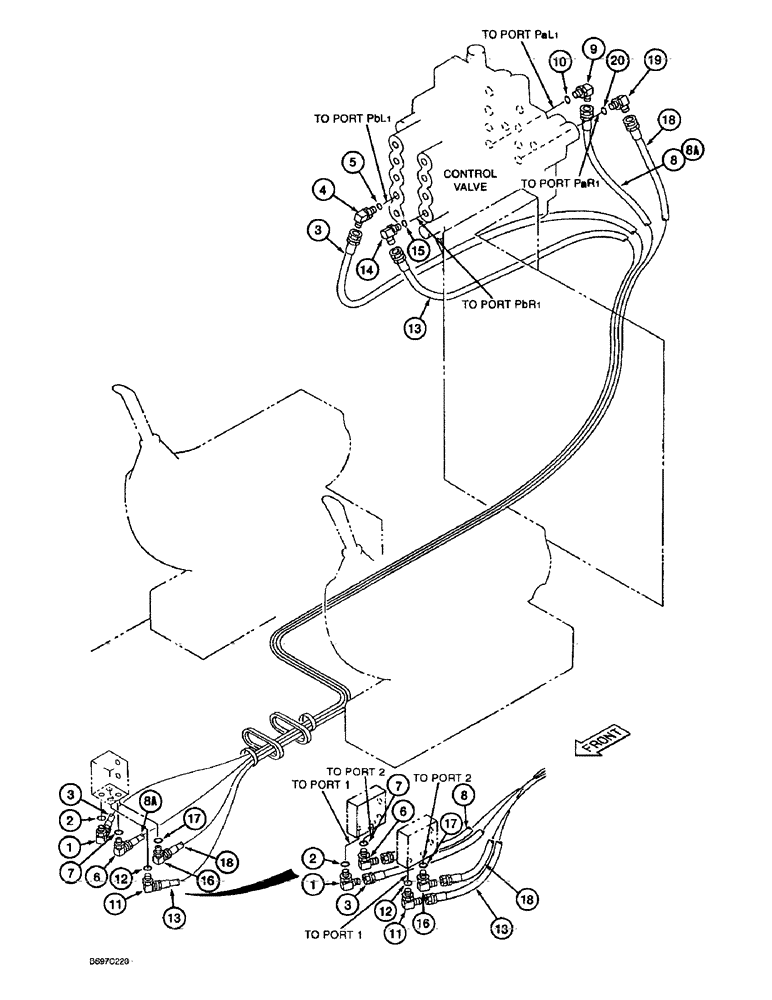

Запчасти Case 9030B (8-042) - TRAVEL CONTROL LINES (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
- 90 degree, Includes: Ref. 2
1шт.
2
154467A1
O-RING,10.8mm ID x 2.4mm Width
- adapter
1шт.
3
157997A1
HOSE,6.3 mm ID x 3700.00 mm
- 3700 mm (145-3/8 inch) long, right-hand forward travel line (right-hand controller port "1" to control valve port "PbL1")
1шт.
4
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
- 90 degree, Includes: Ref. 5
1шт.
5
154467A1
O-RING,10.8mm ID x 2.4mm Width
- adapter
1шт.
6
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
- 90 degree, Includes: Ref. 7
1шт.
7
154467A1
O-RING,10.8mm ID x 2.4mm Width
- adapter
1шт.
8
157838A1
HOSE,6.5 mm ID x 3500.00 mm
- 3500 mm (137-3/4 inch) long, right-hand backward travel line (right-hand controller port "2" to control valve port "PaL1"), Serial Range: -DAC03#2001
1шт.
8a
165397A1
HYDRAULIC HOSE
3400 mm, Right-Hand Backward Travel Line (Right-Hand Controller Port "2" to Control Valve Port "PaL1"), Start Serial: DAC03#2001
1шт.
9
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
- 90 degree, Includes: Ref. 10
1шт.
10
154467A1
O-RING,10.8mm ID x 2.4mm Width
- adapter
1шт.
11
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
- 90 degree, Includes: Ref. 12
1шт.
12
154467A1
O-RING,10.8mm ID x 2.4mm Width
- adapter
1шт.
13
158130A1
HOSE,6.3mm ID x 1350mm L
- 3350 mm (131-7/8 inch) long, left-hand forward travel line (left-hand controller port "1" to control valve port "PbR1")
1шт.
14
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
- 90 degree, Includes: Ref. 15
1шт.
15
154467A1
O-RING,10.8mm ID x 2.4mm Width
- adapter
1шт.
16
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
- 90 degree, Includes: Ref. 17
1шт.
17
154467A1
O-RING,10.8mm ID x 2.4mm Width
- adapter
1шт.
18
159005A1
HOSE
- 3250 mm (127-15/16 inch) long, left-hand backward travel line (left-hand controller port "2" to control valve port "PaR1")
1шт.
19
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
- 90 degree, Includes: Ref. 20
1шт.
20
154467A1
O-RING,10.8mm ID x 2.4mm Width
- adapter
1шт.
Выбрано товаров: 21
