Запчасти Case 9030B (8-040) - SWING CONTROL LINES (08) - HYDRAULICS

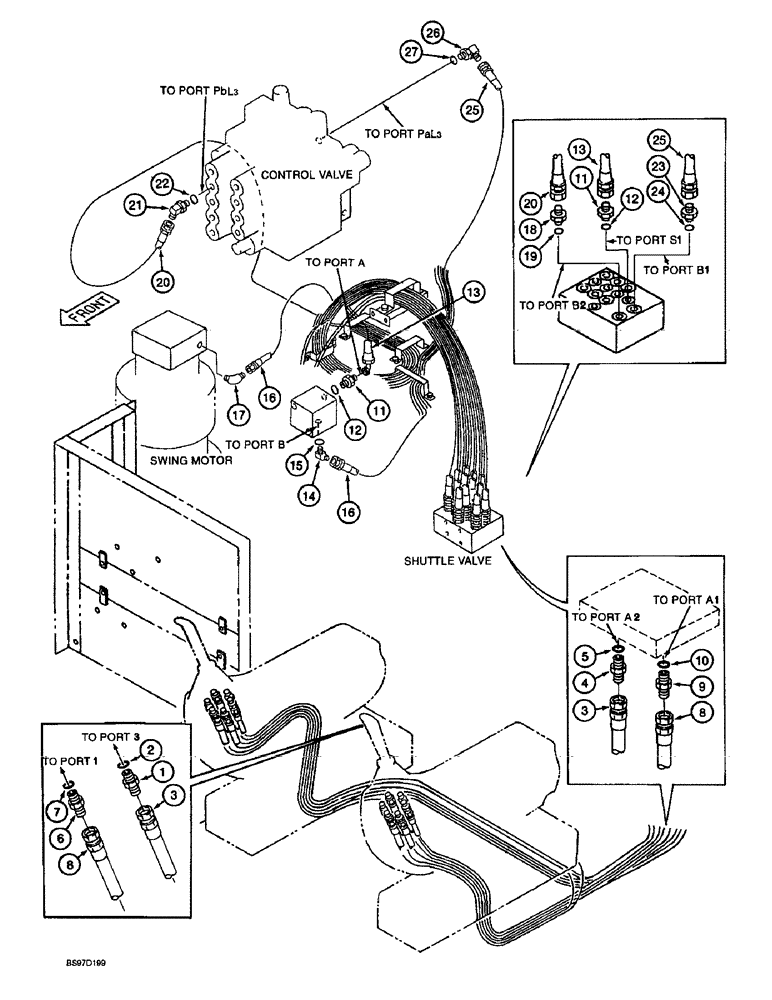

Схема запчастей Case 9030B - (8-040) - SWING CONTROL LINES (08) - HYDRAULICS
13
11
24
25
20
18
8
9
7
20
16
8
11
5
2
27
21
14
25
13
3
12
12
3
26
15
1
17
16
6
22
10
19
23
4

Артикул

Название

Примечание

Количество

1

152747A1

ADAPTER

- straight, Includes: Ref. 2

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

3

159215A1

HYDRAULIC HOSE,9.50 mm ID x 1650.00 mm

- Swing left line (LH controller port "3" to shuttle valve port "A2") 9.50 mm ID x 1650.00 mm

1шт.

4

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 5

1шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

6

152747A1

ADAPTER

- straight, Includes: Ref. 7

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

8

159216A1

HYDRAULIC HOSE,9.50 mm ID x 1750.00 mm

- Swing right line (LH controller port "1" to shuttle valve port "A1") 9.50 mm ID x 1750.00 mm

1шт.

9

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 10

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

11

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 12

2шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

13

159019A1

HOSE ASSY.

HOSE - 900 mm (35-7/8 inch) long, swing control line (shuttle valve port "S1" to swing brake release valve port "B")

1шт.

14

150933A1

ELBOW

- 45 degree, Includes: Ref. 15

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

16

152773A1

HOSE ASSY.

HOSE - 1850 mm (72-13/16 inch) long, swing control line (swing brake release valve port "A" to swing motor)

1шт.

17

153596A1

ADAPTER

ELBOW - 90 degree

1шт.

18

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 19

1шт.

19

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

20

152771A1

HOSE ASSY.

HOSE - 3000 mm (118-1/8 inch) long, swing left line (shuttle valve port "B2" to control valve port "PbL3")

1шт.

21

153559A1

ELBOW

- 90 degree, Includes: Ref. 22

1шт.

22

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

23

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 24

1шт.

24

154475A1

O-RING

- adapter

1шт.

25

161487A1

HOSE ASSY.

HOSE - 2800 mm (110-1/4 inch) long, swing right line (shuttle valve port "B1" to control valve port "PsL3"), Includes: Ref. 26

1шт.

26

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

27

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight

1шт.

Выбрано товаров: 27
