Запчасти Case 9030B (8-036) - BUCKET CONTROL LINES, FOR ALL MODELS EXCEPT THOSE WITH LONG REACH (08) - HYDRAULICS

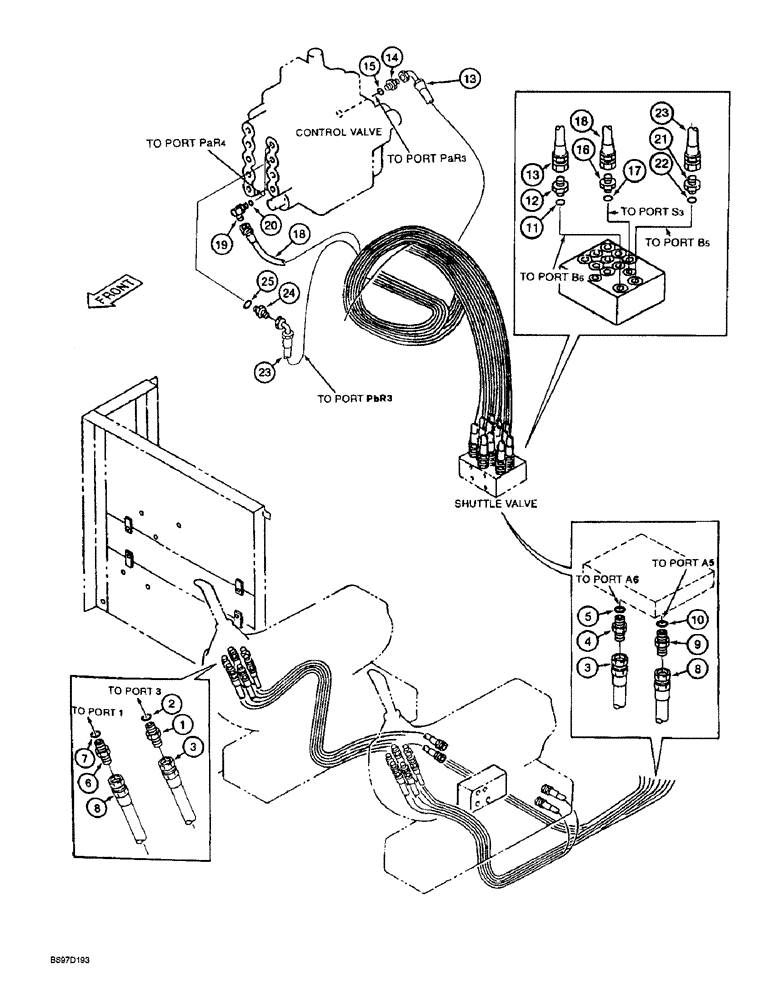

Схема запчастей Case 9030B - (8-036) - BUCKET CONTROL LINES, FOR ALL MODELS EXCEPT THOSE WITH LONG REACH (08) - HYDRAULICS
11
14
2
17
23
3
10
18
12
23
8
5
25
24
20
15
13
9
7
22
21
19
13
6
1
8
4
3
18
16

Артикул

Название

Примечание

Количество

1

152747A1

ADAPTER

- straight, Includes: Ref. 2

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

3

159211A1

HYDRAULIC HOSE

HOSE - 2000 mm (78-3/4 inch) long, bucket open line (right-hand controller port "3" to shuttle valve port "A6")

1шт.

4

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 5

1шт.

5

154475A1

O-RING

- adapter

1шт.

6

152747A1

ADAPTER

- straight, Includes: Ref. 7

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

8

159212A1

HYDRAULIC HOSE,9.50 mm ID x 2100.00 mm

- Bucket close line (RH controller port "1" to shuttle valve port "A5") 9.50 mm ID x 2100.00 mm

1шт.

9

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 10

1шт.

10

154475A1

O-RING

- adapter

1шт.

11

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 12

1шт.

12

154475A1

O-RING

- adapter

1шт.

13

159362A1

HYDRAULIC HOSE

- 2550 mm (100-3/8 inch) long, Bucket open line (Shuttle valve port "B6" to control valve port "PsR3")

1шт.

14

152747A1

ADAPTER

- straight, Includes: Ref. 15

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

16

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 17

1шт.

17

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

18

152778A1

HOSE ASSY.

HOSE - 2700 mm (106-5/16 inch) long, shared bucket open/close line (shuttle valve port "S3" to control valve port "PsR4")

1шт.

19

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 20

1шт.

20

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

21

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 22

1шт.

22

154475A1

O-RING

- adapter

1шт.

23

159232A1

HYDRAULIC HOSE

- 2700 mm (106-1/4 inch) long, Bucket close line (Shuttle valve port "B5" to control valve port "PbR3")

1шт.

24

152747A1

ADAPTER

- straight, Includes: Ref. 25

1шт.

25

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

Выбрано товаров: 25
