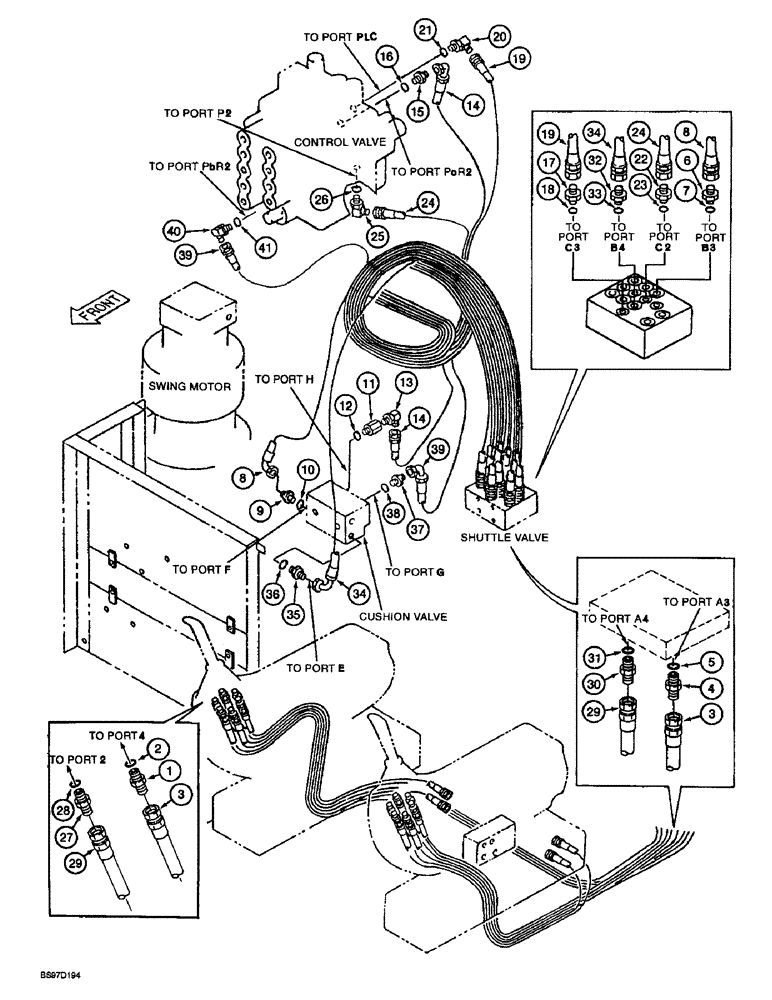

Запчасти Case 9030B (8-030) - BOOM CONTROL LINES (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
161842A1
ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB
- straight, Includes: Ref. 2
1шт.
2
154467A1
O-RING,10.8mm ID x 2.4mm Width
- adapter
1шт.
3
159211A1
HYDRAULIC HOSE
HOSE - 2000 mm (78-3/4 inch) long, boom-up control line, right hand console to shuttle valve (controller port "4" to shuttle valve port "A3")
1шт.
4
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
ADAPTER - straight, Includes: Ref. 5
1шт.
5
154475A1
O-RING
- adapter
1шт.
6
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
ADAPTER - straight, Includes: Ref. 7
1шт.
7
154475A1
O-RING
- adapter
1шт.
8
159223A1
HOSE ASSY.
HOSE - 1100 mm (44-3/16 inch) long, boom-up control line (shuttle valve port "B3" to cushion valve port "F")
1шт.
9
160074A1
PLUG
ADAPTER - straight, Includes: Ref. 10
1шт.
10
154486A1
O-RING
- adapter
1шт.
11
159226A1
ADAPTER
- straight, Includes: Ref. 12
1шт.
12
154475A1
O-RING
- adapter
1шт.
13
153526A1
ELBOW
- 90 degree, special
1шт.
14
159228A1
HOSE ASSY.
HOSE - 1750 mm (68-7/8 inch) long, boom-up control line (cushion valve port "4" to control valve port "PoR2")
1шт.
15
152747A1
ADAPTER
- straight, Includes: Ref. 16
1шт.
16
154467A1
O-RING,10.8mm ID x 2.4mm Width
- adapter
1шт.
17
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
ADAPTER - straight, Includes: Ref. 18
1шт.
18
154467A1
O-RING,10.8mm ID x 2.4mm Width
- adapter
1шт.
19
152270A1
HOSE,6.3mm ID x 2600mm L
Boom-up/down control line (Shuttle valve port "C3" to control valve port "PLC") 63.00 mm ID x 2600.00 mm
1шт.
20
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
- 90 degree, Includes: Ref. 21
1шт.
21
154467A1
O-RING,10.8mm ID x 2.4mm Width
- elbow
1шт.
22
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
ADAPTER - straight, Includes: Ref. 23
1шт.
23
154467A1
O-RING,10.8mm ID x 2.4mm Width
- adapter
1шт.
24
152270A1
HOSE,6.3mm ID x 2600mm L
Boom-up control line (Shuttle valve port "C2" to control valve port "P2") 63.00 mm ID x 2600.00 mm
1шт.
25
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
- 90 degree, Includes: Ref. 26
1шт.
26
154467A1
O-RING,10.8mm ID x 2.4mm Width
- elbow
1шт.
27
161842A1
ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB
- straight, Includes: Ref. 28
1шт.
28
154467A1
O-RING,10.8mm ID x 2.4mm Width
- adapter
1шт.
29
159212A1
HYDRAULIC HOSE,9.50 mm ID x 2100.00 mm
- Boom-down control line (RH controller port "2" to shuttle valve port "A4") 9.50 mm ID x 2100.00 mm
1шт.
30
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
ADAPTER - straight, Includes: Ref. 31
1шт.
31
154475A1
O-RING
- adapter
1шт.
32
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
ADAPTER - straight, Includes: Ref. 33
1шт.
33
154475A1
O-RING
- adapter
1шт.
34
159224A1
HOSE ASSY.
HOSE - 900 mm (35-7/16 inch) long, boom-down control line (shuttle valve port "B4" to cushion valve port "E")
1шт.
35
160074A1
PLUG
ADAPTER - straight, Includes: Ref. 36
1шт.
36
154486A1
O-RING
- adapter
1шт.
37
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
ADAPTER - straight, Includes: Ref. 38
1шт.
38
154475A1
O-RING
- adapter
1шт.
39
159229A1
HOSE ASSY.
HOSE - 1650 mm (65 inch) long, boom-down control line (cushion valve port "G" to control valve port "PbR2")
1шт.
40
153559A1
ELBOW
- 90 degree, Includes: Ref. 41
1шт.
41
154467A1
O-RING,10.8mm ID x 2.4mm Width
- elbow
1шт.
Выбрано товаров: 41
