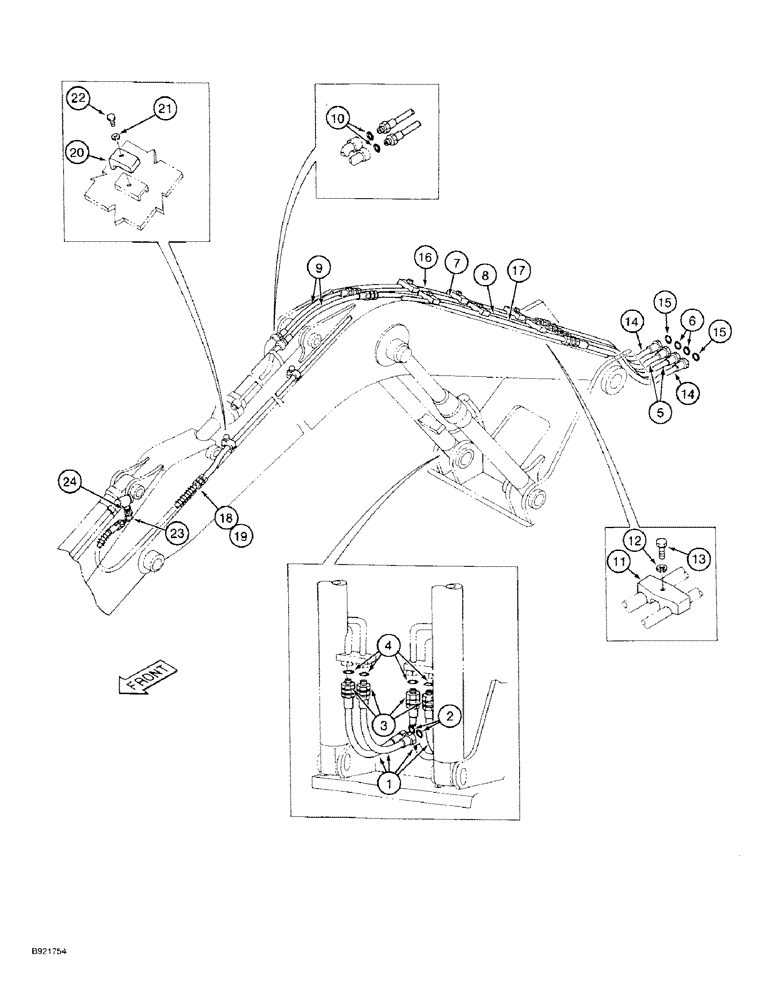

Запчасти Case 9030 (8-74) - BOOM, ARM, & BUCKET HYD CIRCTS, BASE OF BOOM TO BUCKET CYLINDER, MOD. W/ 7-3/84 OR 9-2/3 FOOT ARM (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
152347A1
HYDRAULIC HOSE,950mm
- At boom cylinder, Includes Ref. 2 950.00 mm
4шт.
3
151654A1
HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT
ADAPTER - straight, hydraulic, Includes: Ref. 4
4шт.
5
152036A1
HOSE ASSY.
HYDRAULIC HOSE - Arm cylinder, At base of boom, Includes Ref. 6
2шт.
7
152046A1
HYD TUBE,34 mm OD, 2666.9, 495.6 mm Length
TUBE - arm cylinder, top of boom
1шт.
8
152049A1
HYD TUBE,34 mm OD, 2666.9, 495.6 mm Length
TUBE - arm cylinder, rod end
1шт.
9
151461A1
HOSE ASSY.,800.00 mm
HYDRAULIC HOSE - At arm cylinder, Includes Ref. 10 800.00 mm
2шт.
11
151489A1
CLAMP
- tube, double
6шт.
12
892-10016
LOCK WASHER,M16
WASHER - lock, 16 mm
6шт.
13
828-16070
BOLT,Hex, M16 x 2 x 70mm, Cl 10.9
6шт.
14
151451A1
HOSE ASSY.,1050.00 mm
HYDRAULIC HOSE - Bucket cylinder, at base of boom, Includes Ref. 15 1050.00 mm
2шт.
16
152039A1
HYD TUBE
TUBE - to closed end of bucket cylinder
1шт.
17
152042A1
HYD TUBE
TUBE - to rod end of bucket cylinder
1шт.
18
151455A1
HOSE ASSY.,1500.00 mm
HYDRAULIC HOSE - At bucket cylinder, Models with 9-2/3 foot arm 1500.00 mm
2шт.
18
153733A1
HOSE ASSY.
HOSE - at bucket cylinder, models with 7-3/4 foot arm, Includes: Ref. 19
2шт.
20
151486A1
CLAMP BRACKET
CLAMP - tube
4шт.
21
892-10012
LOCK WASHER,M12
WASHER - lock, 12 mm
4шт.
22
828-12060
BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9
- hex, 12 - 1.75 x 60 mm, class 10.9
4шт.
23
153681A1
ELBOW
- 90 degree, hydraulic, at bucket cylinder, Includes: Ref. 24
2шт.
Выбрано товаров: 25
