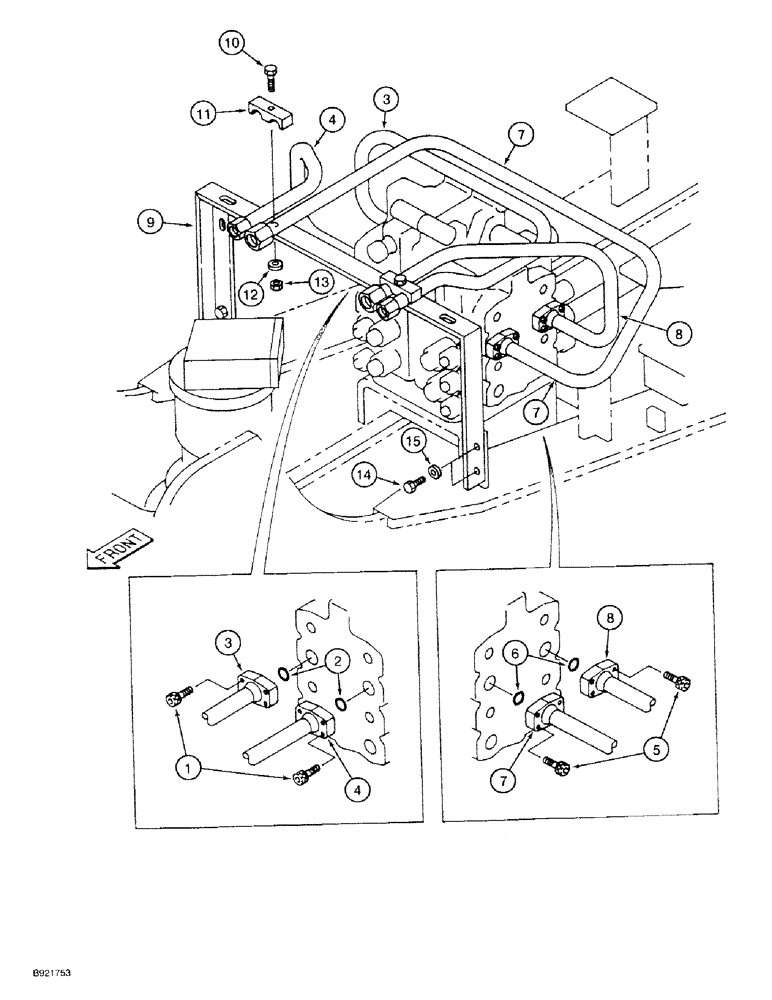

Запчасти Case 9030 (8-72) - ARM AND BUCKET HYDRAULIC CIRCUITS, CONTROL VALVE TO BASE OF BOOM (08) - HYDRAULICS

1

861-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - socket head, 10 - 1.5 x 30 mm, class 12.9

8шт.

2

151099A1

O-RING

- tube to control valve, right hand side

2шт.

3

153492A1

TUBE

- flanged, bucket, right hand side of control valve, rear port

1шт.

4

153491A1

TUBE

- flanged, bucket, right hand side of control valve, front port

1шт.

5

861-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

BOLT - hex socket, 10 - 1.5 x 35 mm, class 12.9

8шт.

6

154548A1

O-RING

- tube to control valve, left hand side

2шт.

7

153489A1

TUBE

- flanged, arm, left hand side of control valve, front port

1шт.

8

153490A1

TUBE

- flanged, arm, left hand side of control valve, rear port

1шт.

9

153524A1

BRACKET

- tube support

1шт.

10

1970963C1

BOLT,Hex, M12 x 75mm, Cl 10.9

BOLT - hex, 12 - 1.75 x 75 mm, class 10.9

2шт.

11

153186A1

COLLAR

CLAMP - tube, double

2шт.

12

150988A1

WASHER

- special

2шт.

13

829-1312

NUT,M12 x 1.75, Cl 10

- hex, 12 mm - 1.75, class 10

2шт.

14

626-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, 12 - 1.75 x 35 mm, class 10.9

4шт.

15

150988A1

WASHER

- special

4шт.
