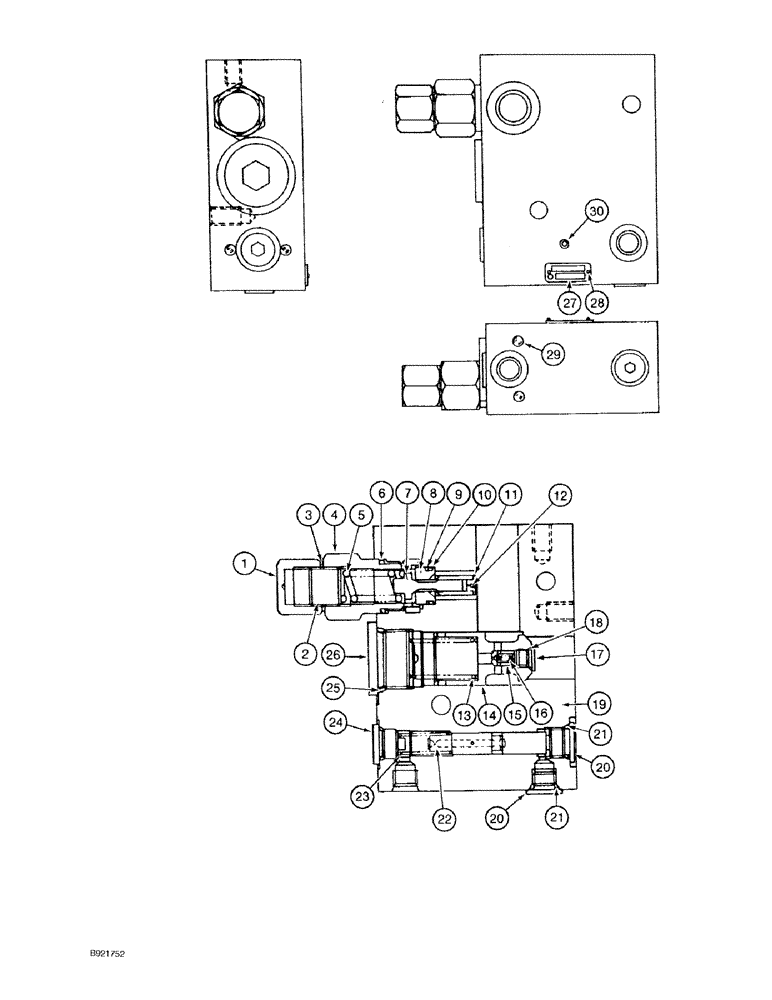

Запчасти Case 9030 (8-70) - BOOM HYDRAULIC CIRCUIT, 153558A1 HOLDING VALVE ASSEMBLY (08) - HYDRAULICS

153558A1

VALVE

ASSEMBLY - holding, boom, Includes: Ref. 1 - 30

1шт.

155848A1

VALVE, PRESSURE RELI

VALVE ASSEMBLY - relief, holding valve, Includes: Ref. 1 - 12

1шт.

1

156205A1

NUT

CAP - relief valve

1шт.

2

NSS

NOT SOLD SEPARAT

FITTING - adjuster, spring tension

1шт.

3

155693A1

GASKET

GASKET - cap to valve body

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - relief

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING - relief

1шт.

6

155195A1

O-RING

- seal, relief body, outer

1шт.

7

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

8

NSS

NOT SOLD SEPARAT

SEAT - poppet

1шт.

9

155227A1

BACK-UP RING

RING - backup, relief body seal, inner

1шт.

10

155226A1

O-RING

- seal, relief body, inner

1шт.

11

NSS

NOT SOLD SEPARAT

PLUG - orifice

1шт.

12

NSS

NOT SOLD SEPARAT

FILTER - relief

1шт.

13

NSS

NOT SOLD SEPARAT

SPRING - plunger

1шт.

14

NSS

NOT SOLD SEPARAT

PLUNGER - boom hold valve

1шт.

15

NSS

NOT SOLD SEPARAT

POPPET - relief

1шт.

16

NSS

NOT SOLD SEPARAT

SPRING - poppet

1шт.

17

155510A1

PLUG

- orifice

1шт.

18

154455A1

O-RING

- orifice plug

1шт.

19

NSS

NOT SOLD SEPARAT

HOUSING - boom hold valve

1шт.

20

155515A1

PLUG

- port

2шт.

21

154475A1

O-RING

- plug

3шт.

22

NSS

NOT SOLD SEPARAT

SPOOL - boom hold valve

1шт.

23

NSS

NOT SOLD SEPARAT

SPRING - valve spool

1шт.

24

155514A1

PLUG

- special

1шт.

25

154523A1

O-RING

- plug

1шт.

26

155509A1

PLUG

- special, boom hold valve

1шт.

27

NSS

NOT SOLD SEPARAT

PLATE - name

1шт.

28

NSS

NOT SOLD SEPARAT

RIVET - name plate

2шт.

29

NSS

NOT SOLD SEPARAT

EXPANDER - valve

4шт.

30

NSS

NOT SOLD SEPARAT

PLUG - port

2шт.
